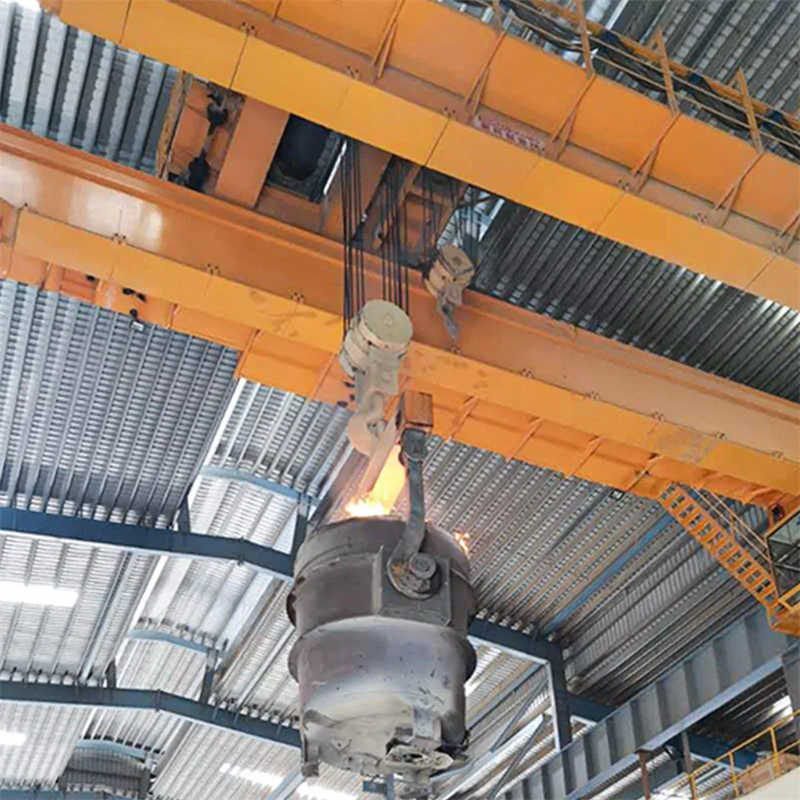

10-80Ton Compact Ladle Crane - Small/Medium Foundry Applications
$60000.00 1 set
Qingdao Shanghai
L/C T/T
New
QDY
CE, ISO9001
Yueda
General manufacturing,Metal production industry,Renewable energy industry
Product Description
Product Description

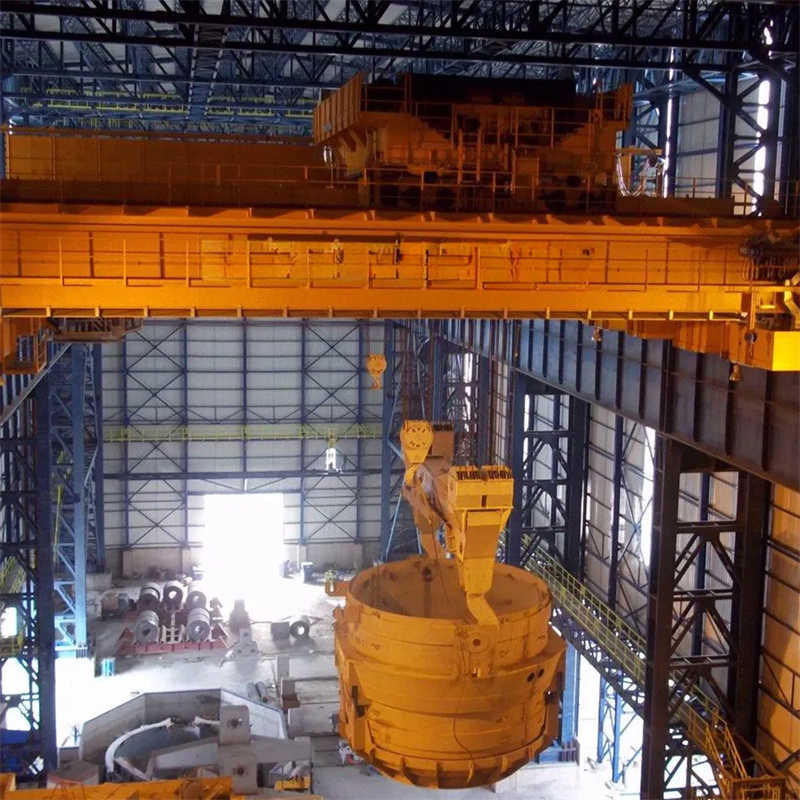

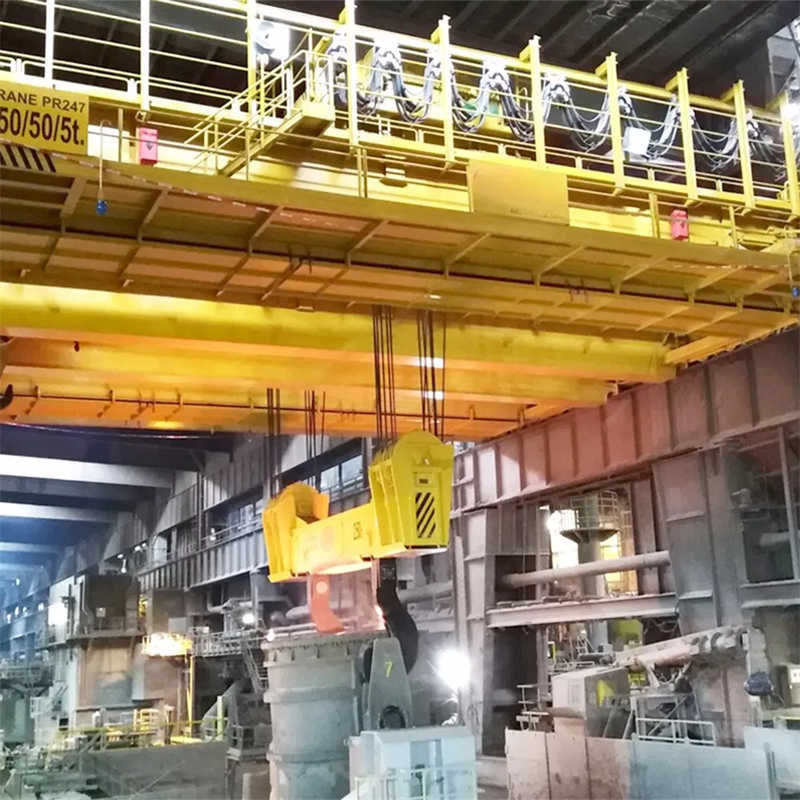

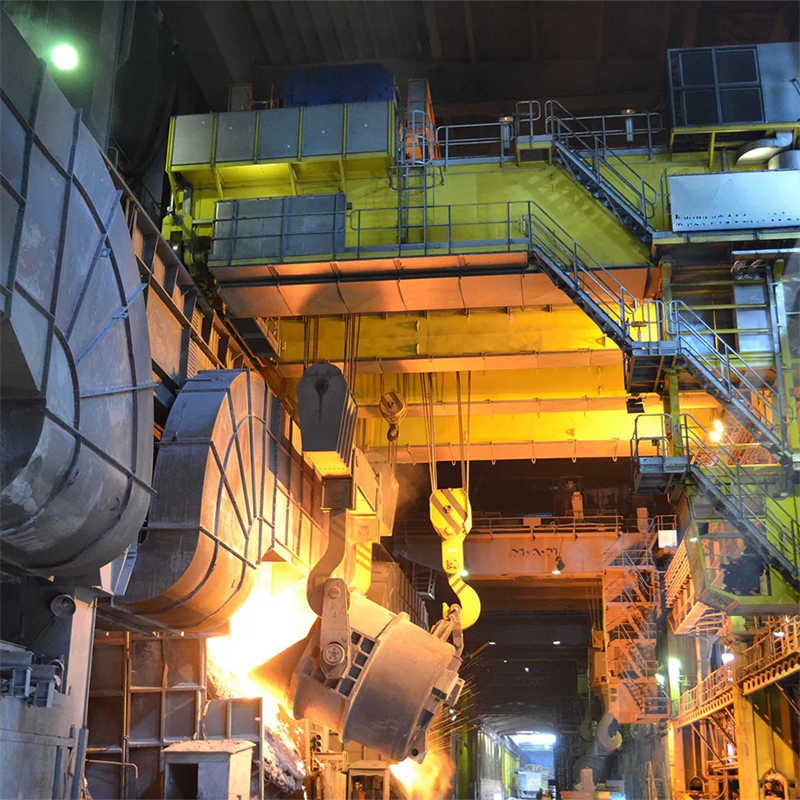

Ladle Bridge Crane Double Girder metallurgy Casting Overhead Crane is a bridge crane used to transport and lift liquid metal in high temperature and dusty environment. It is also called casting overhead crane,foundry overhead crane and ladle overhead crane. metallurgical cranes include ferrous metallurgical cranes, nonferrous metallurgical cranes, and special metallurgical cranes for hot working workshops. Ferrous metallurgical cranes usually refer to special cranes that complete specific processes in the production processes of iron making, steel making, steel rolling, etc. Nonferrous metallurgical cranes usually refer to special cranes dedicated to nonferrous metal smelting plants (aluminum plants and copper plants, etc.). Thermal processing crane usually refers to the special crane used to change the metal lographic structure of materials in thermal processing (forging, heat treatment) workshops. metallurgical overhead cranes' lifting mechanism can quickly lift materials to meet the requirements of efficient production. The speed regulation of the crane operation can be achieved through stator pressure regulation and motor frequency conversion. Foundry bridge cranes are an essential component of metallurgical applications, helping to move heavy loads of molten metal and other materials safely and efficiently. This type of crane is specifically designed to withstand the harsh and extreme conditions found in foundries, steel mills and other metallurgical environments.
Features
High Temperature Resistance: metallurgical cranes are particularly suitable for high temperature environments. Hooks such as forged hooks and plate hooks have high resistance to high temperature radiation and can carry molten metal under extreme conditions.
High-intensity Working Environment: Due to the particularity of the metallurgical production environment, it has good stability and carrying capacity.
High Reliability and Safety: It has complete protection devices and automatic emergency systems to ensure the safe operation of the equipment.
Custom Options: We offer customization options to meet the unique needs of individual foundries.
Precise Load Control: Foundry overhead cranes have precise controls that allow the operator to control the movement of the load.
Detailed Photos
Hoisting Mechanism
Adopts dual motors, intermediate planetary reducers, two hardened gear reducers arranged in a triangular shape, and double drum transmission, with simple structure, smooth operation, safety and reliability.
Main Beam
Specially designed for harsh working conditions such as high temperature and corrosive media, using high temperature resistant materials and anti-corrosion coatings to meet fire and explosion prevention requirements.

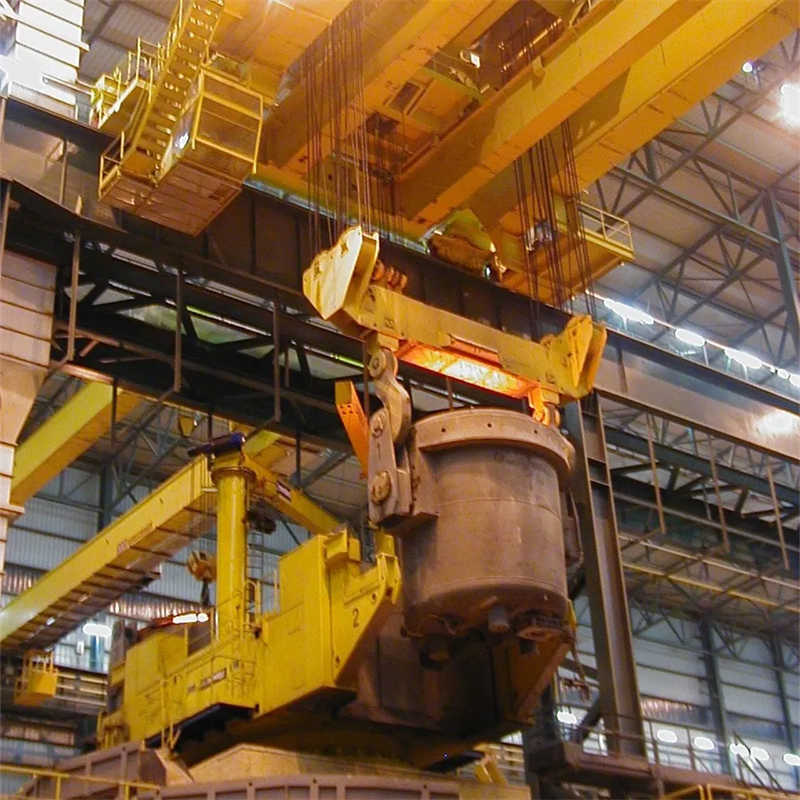

Ladle: Solid material, corrosion-resistant and high-temperature resistant
Hook: The lifting device is detachable and easy to use.
Product Parameters
Lifting weight(t) | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | 74/20 | ||
Span(m) | 10.5~31.5 | ||||||||
Max Lifting height(m) |
16 |
16 | Main hook | 16 | 12 | 16 | 12 | 22 | |
Auxiliary hook | 18 | 14 | 18 | 16 | 24 | ||||
Working class | A6 | ||||||||
Speed (m/min) |
Hoisting |
15.5 |
10.4 | Main | 10.7 | 9.8 | 7.8 | 7.8 | 6.1 |
Auxiliary | 14.6 | 15.5 | 15.5 | 10.4 | 9.7 | ||||
Motor (type/kw) |
Hoisting |
15 |
22 | Main hook | 37 | 45 | 55 | 75 | 90 |
Auxiliary | 11 | 15 | 15 | 22 | 37 | ||||
Traveling of crab | 1.5 | 2.2 | 3.7 | 3.7 | 7.5 | 11 | 15 | ||
Traveling of trolley | 2*5.5 2*7.5 | 2*5.5 2*7.5 | 2*7.5/2*11 | 2*7.5/2*11 | 2*11 | 2*11/ 2*15 | 2*22 | ||
Steel track recommended | trolley | 18kg/m | 24kg/m | 43kg/m | |||||
crane | 43kg/m | 43kg/m or QU70 | QU70 | QU80 | QU100 | ||||
Power source | 3P A.C 50Hz 380V | ||||||||
Product Applications
Company Information
Packaging & Shipping
FAQ
1. What types of cranes do you offer?
As a manufacturer with over 20 years' experience, Huasui provide a range of cranes, including gantry cranes, overhead cranes, RTG cranes, jib cranes, and customized lifting solutions tailored to specific industry needs, such as for steel, precast concrete, and container handling.
2. How do I know which crane is suitable for my project?
Our team of experts is here to help! By understanding your lifting capacity requirements, operational environment, and usage frequency, we can recommend the ideal crane solution for your project. Contact us for a free consultation.
3. How to choose the right crane?
The following factors need to be considered when choosing a crane: Load capacity, Lifting height, Working environment, Frequency of operation.
4. What maintenance services do you offer?
We offer comprehensive maintenance plans, including preventive maintenance, inspection, repair, and spare parts replacement, to keep your crane running efficiently and safely. Our service team is available for scheduled and emergency support.
5. Are your cranes compliant with international safety standards?
Absolutely. Our cranes are manufactured in compliance with major international standards such as ISO, EN, and GB/T. Additionally, we ensure that each crane undergoes rigorous testing and inspection before delivery.
6. What are your delivery and installation timelines?
Delivery and installation timelines vary based on the type and customization of the crane. Generally, standard cranes can be delivered within 6-8 weeks, while customized solutions may require additional time. We aim to provide accurate timelines upfront to ensure smooth project planning.
7. Do you offer installation services?
Yes, we provide comprehensive training programs for crane operators, including safety training, maintenance guidelines, and operational best practices to ensure your team is fully prepared to operate the crane safely and efficiently.
