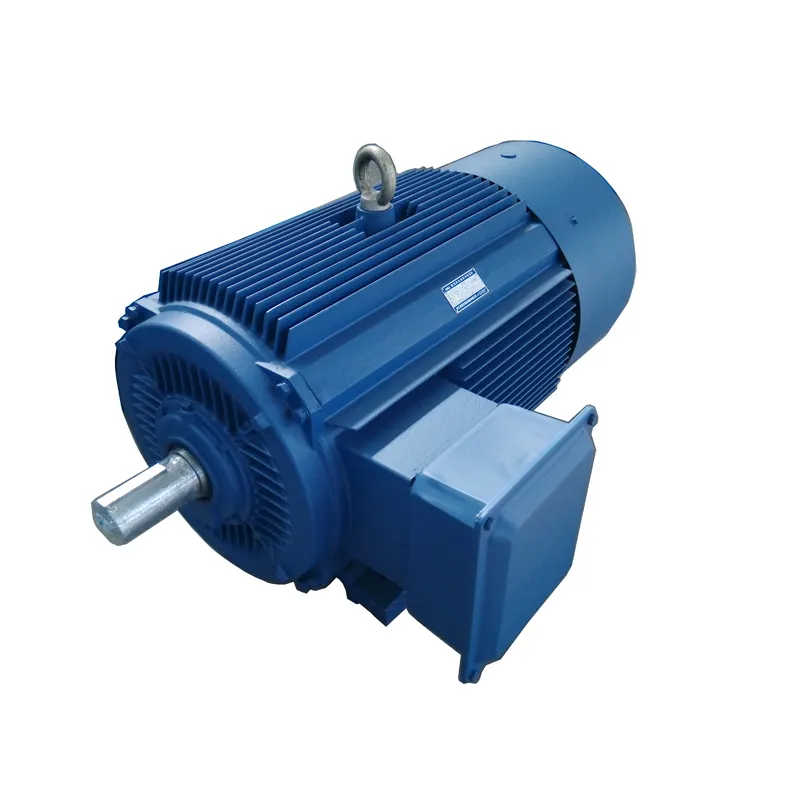

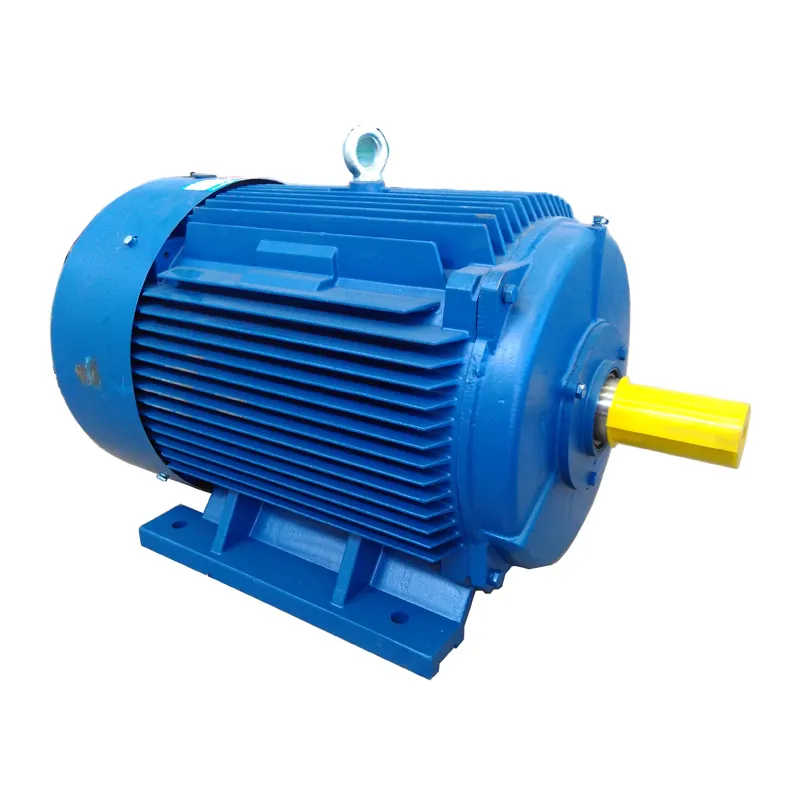

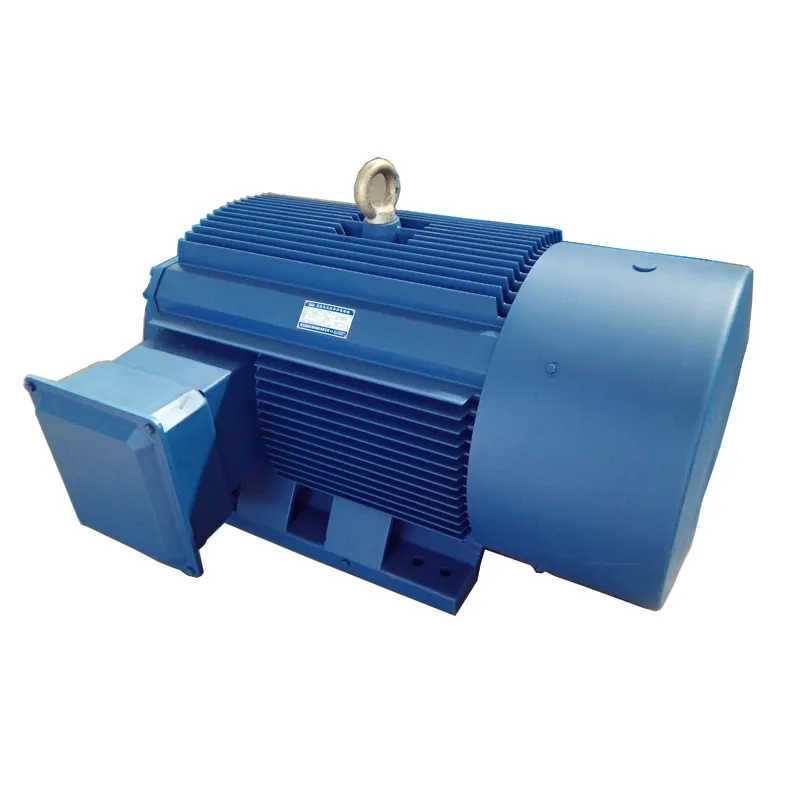

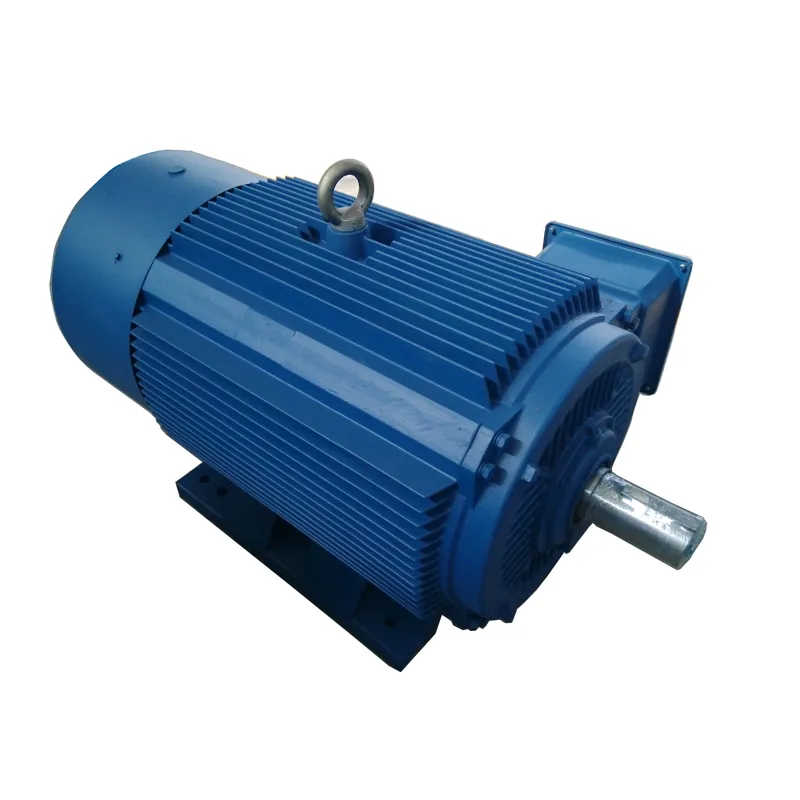

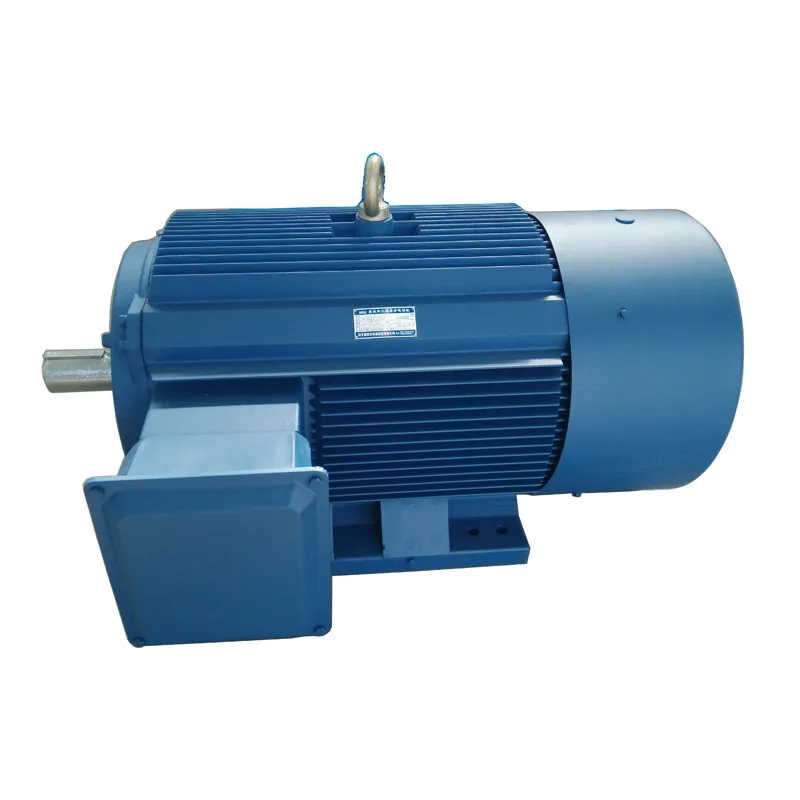

Ytp Winch, Hoist Three-Phase Variable Frequency Speed Control Motor

Product Description

The series JS is a kind of 3-phase squirrel-cage rotor asynchronous motor meeting technical specifications in the ministerial standard JB563-64, which can drive a variety of machineries, e.g. ventilator, compressor, water pump, crusher, ball mill, cutting-off machine, transportation machinery and other equipmentand can be used as a primary mover in mechanical industry, power station and various industrial & miming enterprises. The ratings of the series are based on the values in continuous duty (S1): frequency 50HZ, rated voltage 220V/380V, 380V, 3000V & 6000V. Voltage rating 3300V/10000V also can be produced as required by customers.
This series adoptsprotection class IP23 for enclosure, cooling mode IC01, andIMB3mode for structuring &mounting. Moreover, we can design vertical mountas required by customers.
Series JS guarantees, at rated voltage, the ration of the maximum torque and rated torque is 1.6.
rated voltage 220V/380V, 380V, 3000V & 6000V. Voltage rating 3300V/10000V also can be produced as required by customers.

Motor power range: 115KW-800KW
Rated voltage: 380V/415V/660V/690V/3000V/33000V/6000V/10000V
Number of poles: 4/6/8/10/12
Rated frequency: 50Hz/60Hz
Protection level: IP23
Cooling method: IC01
Working system: S1
Insulation class: B
Wiring method: △
Ambient temperature: ≥ -15 ºCand ≤ 40 ºC

Simple structure, easy maintenance and strong overload capability


Our company's motor manufacturing factory adheres to the concept of green, efficient and energy-saving production service, pays attention to the harmonious development of internal and external environment, builds environmentally friendly motor manufacturing enterprises, strictly implements motor standard process, and selects high-quality energy-saving materials to ensure the quality of motor products.


There are many types of motor products manufactured and sold by our company. The main products are high- and low-voltage three-phase asynchronous motors. The motor structure types include squirrel-cage type and winding type. Among them, high-voltage synchronous motors mainly support air compressors and mine ball mill equipment. use. We adhere to the service tenet of "focus on products, service with heart" and provide high-quality motor products to customers.


The company insists on providing high-quality motor products and services to users, and has won high praise from many domestic and foreign customers. The company will receive many foreign merchants to visit our factory every year, and establish a good cooperative relationship through on-site inspection of our factory. Our company always welcomes customers to visit our factory.
