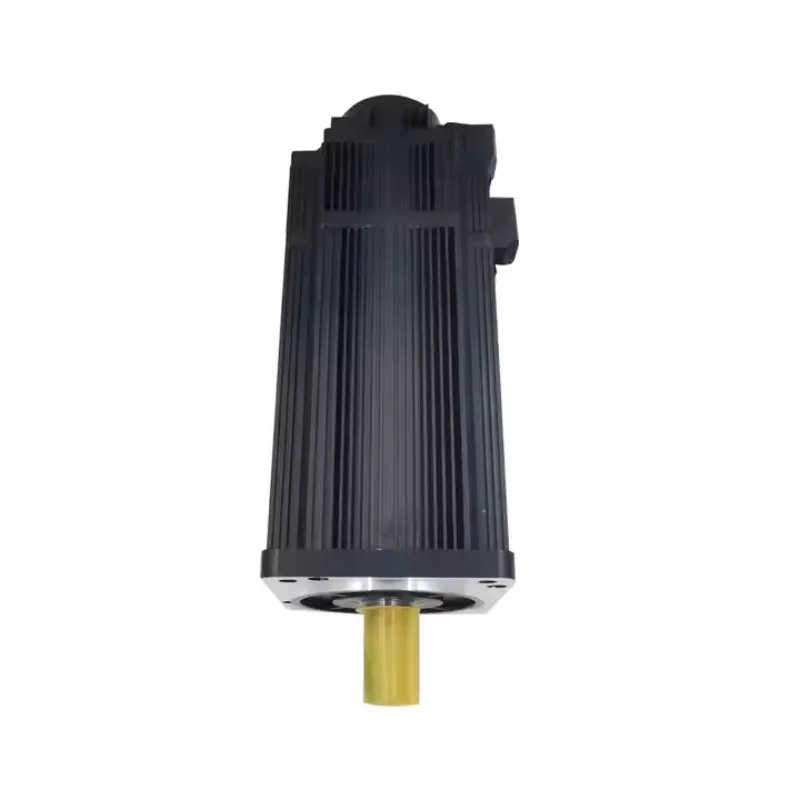

Electric BLDC 48V 1.5kw 2HP 1500rpm Brushless Servo Motor
$381.00 1 set
Qingdao Shanghai
L/C T/T
New
KY80
CE, ISO9001
ZHIBI
General manufacturing
Short Length BLDC Size 80mm 48V 96V 3000RPM 2.39NM Brushless Servo DC-Motor with Optional Encoder low voltage Brake for AGV, Electric motorcycle ,Vehicle,Gear
Model:KY80ACS0407-30-3P
Product Overview
1.Products Specs
| Model | KY80ACS0407-30-3P |
| Rated Voltage | 48V/96V |
| Rated Power | 750W |
| Rated Current | 19.9A |
| Rated Speed | 3000RPM |
| Rated Torque | 2.39NM |
| Max. Speed | 4000RPM |
| Instantaneous Max. Current | 40A |
| Instantaneous Max. Torque | 4.78NM |
| Number | 10 |
| Feedback | Incremental encoder(Standard);Absolute encoder( Optional)( please leave a message when place the order) |
| Without Brake | Standard |
| Brake | Optional( please leave a message when place the order) |
| Ambient Temp | -25- +50ºC |
| Storage Temp | -35- +65ºC |
| Protection Level | IP55 |
| Cooling Method | Natural Cooling |
| Weight(without Brake) | 2.8kg |
2.Drawing
Related Products
| Model | Rated power/W | Rated volt/V | Rated speed/rpm | Rated Current/A | Rated Torque/N.m |
| kY80ACS0407-30 | 750W | 48V/96V | 3000RPM | 19.5A | 2.39N.M |
| KY80ACS0407-30B | 750W | 48V/96V | 3000RPM | 19.5A | 2.39N.M |
| KY80ACS0410-30 | 1000W | 48V/96V | 3000RPM | 26.4A | 3.18NM |
| KY80AS0404-15 | 400W | 48V/96V | 1500RPM | 10.4A | 2.5N.M |
| KY80AS0404-15B | 400W | 48V/96V | 1500RPM | 10.4A | 2.5N.M |
| KY80ACS0407-30B-3P | 750W | 48V/96V | 3000RPM | 19.9A | 2.39N.M |
| KY80ACS0410-30-3P | 1000W | 48V/96V | 3000RPM | 26.4A | 3.18N.M |
| KY80ACS0410-30B-3P | 1000W | 48V/96V | 3000RPM | 26.4A | 3.18N.M |
Recommended controllers
| KYDAS4401A KYDAS4402A | KYDAS4601A KYDAS4602A |
| Single Channel Sine Wave Servo Motor Controller SVPWM Space Vector Control High Performance DSP Intelligent PID Motion Control Alporithm Multiple Control Methods Energy Feedback Function | High Performance DSP Intelligent PID Motion Control Alporithm Dual-channel Synchronization Technology |

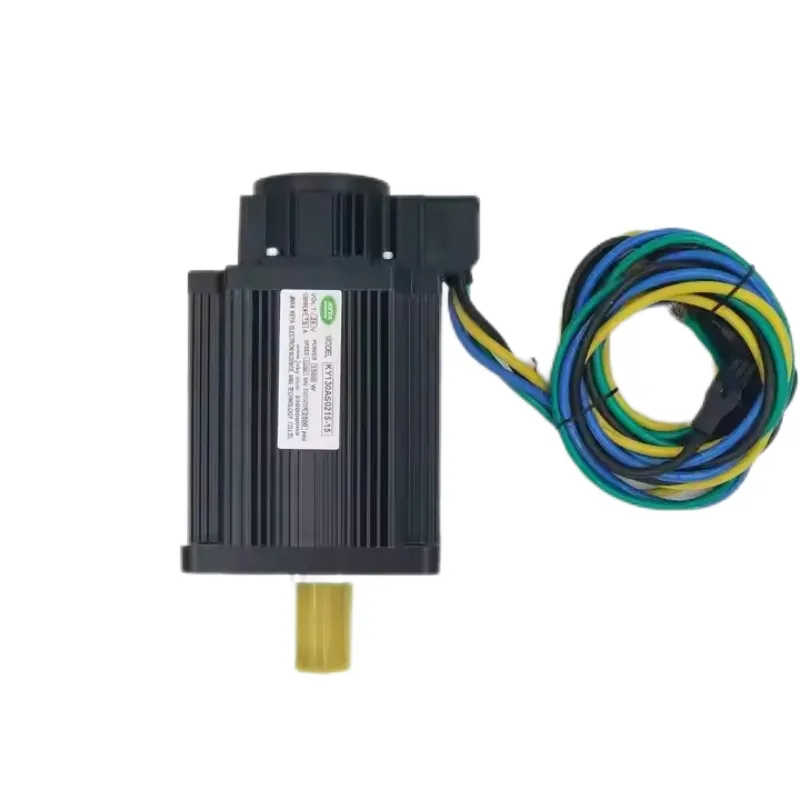

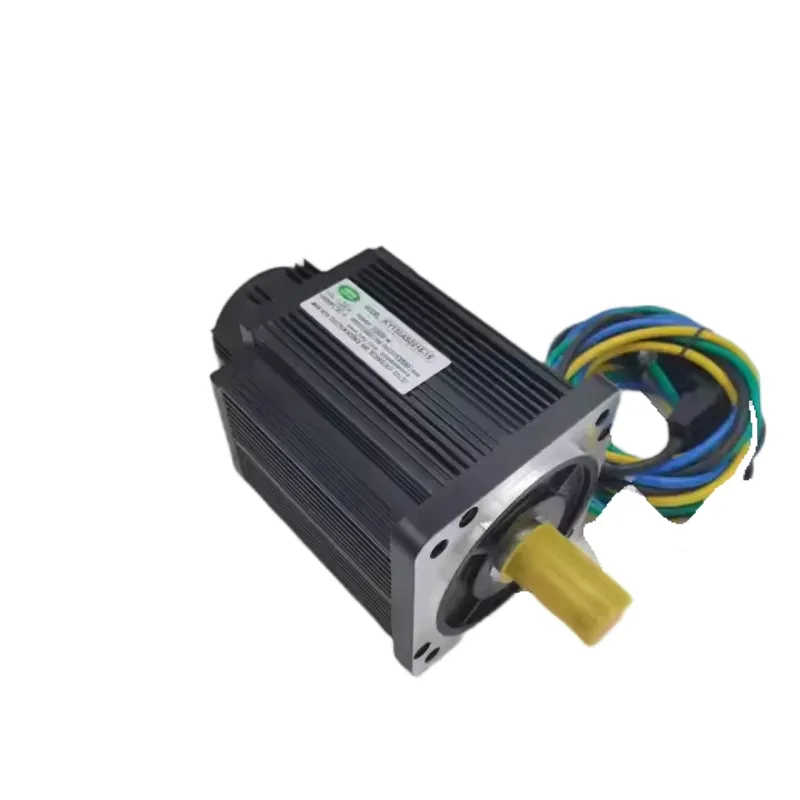

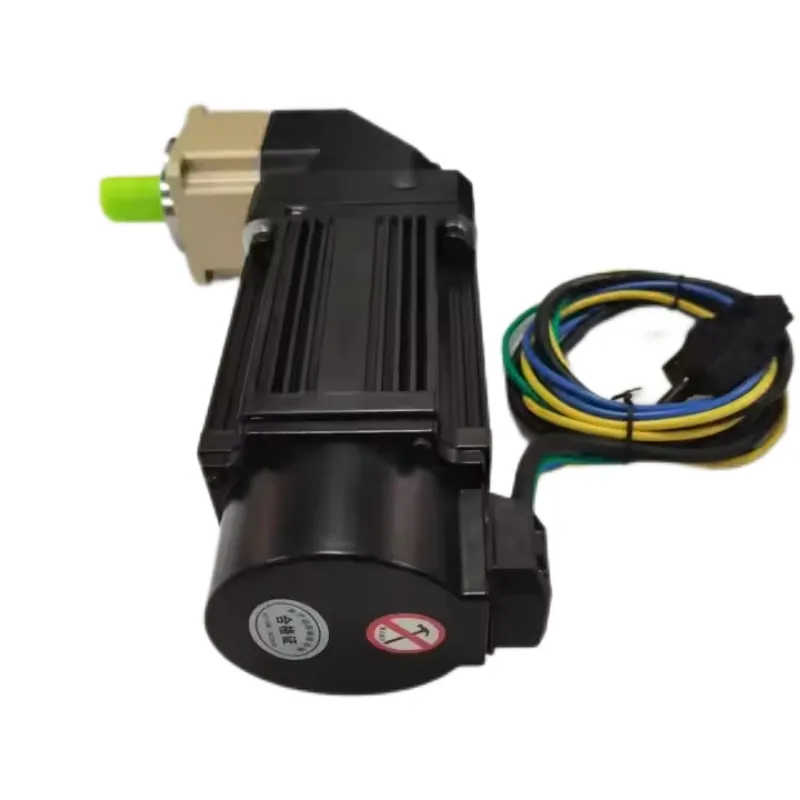

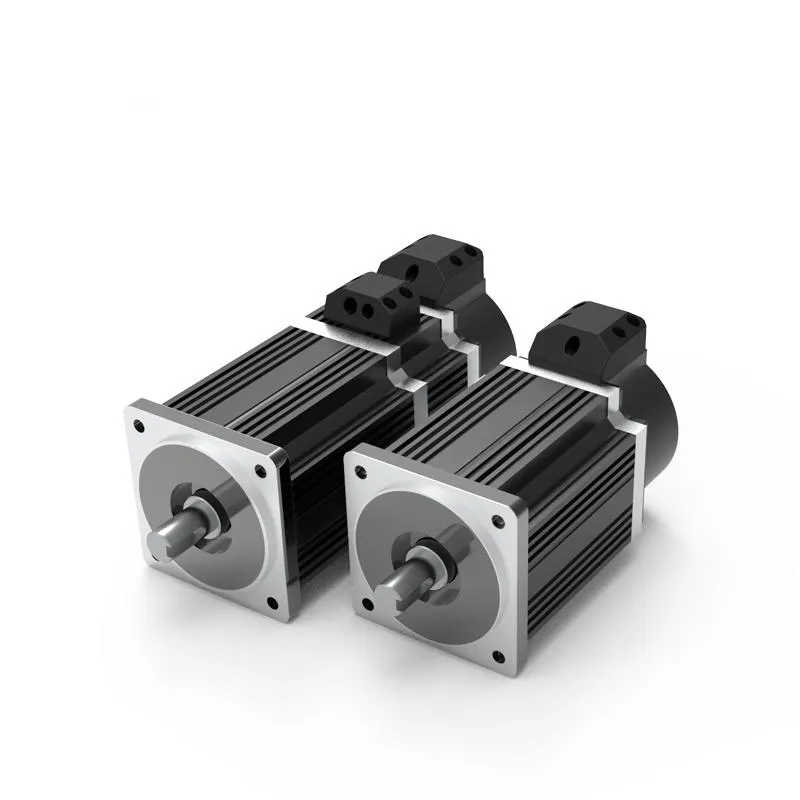

Detailed Photos
Packaging & Shipping
Standard export carton with sponge
Size : base on the order
Weight : base on the order
Detail data will be confirmed before shipping
After Sales Service
| Pre-service | After Sales Service |
| Inquiry and Consult Support Sample testing Support View our Factory | Help instal and use the product 24 hours online problem solving |
