1 Ton to 5 Ton Manual Chain Hoist with Trolley for Monorail Systems
$29.00 10 set
Qingdao Shanghai
L/C T/T
New
HSZ-V
CE, ISO9001
ASAKA
General manufacturing
Product Description

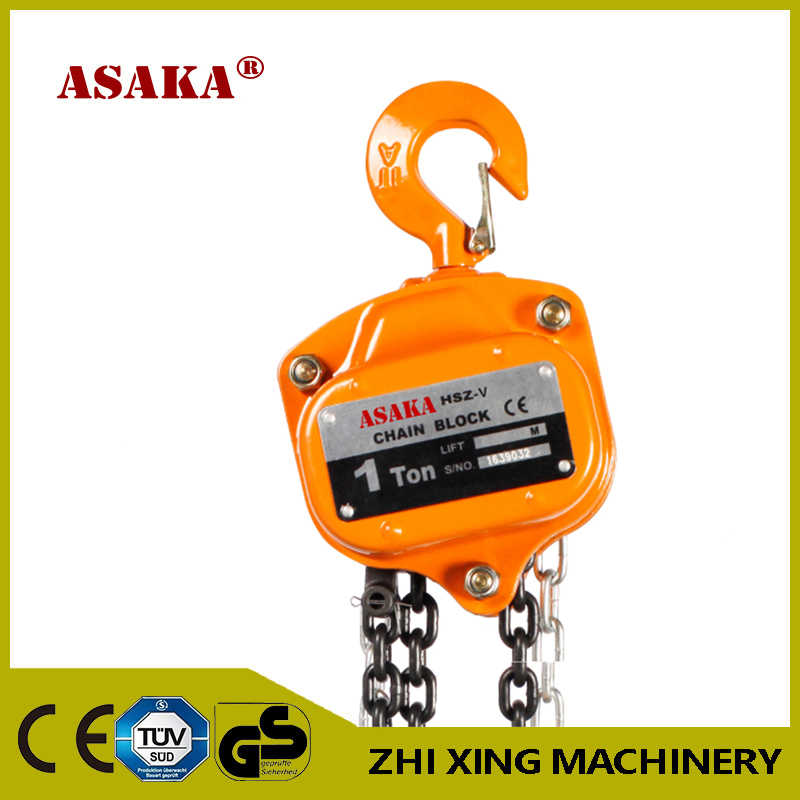

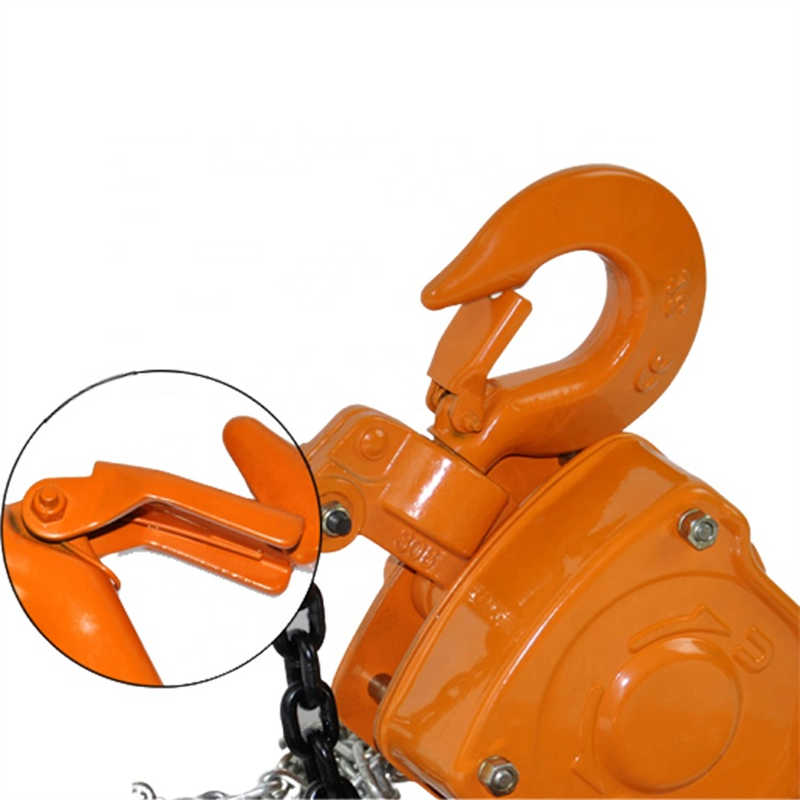

The HSZ-V Series Chain Block is a portable lifting device easily operated by hand ,It is suitable for using in factories,agricultural production ,and in wharfs,docks and storages for fixing machines,lifting cargos,and loading and unloading .It is especially advantageous for lifting work in the power supply is not available.
The chain block can be attached to a trolley of any type as a traveling chain block ,It is suitable to monorail overhead conveying system ,hand traveling crane and jib crane.
| Model | HSZ-0.5V | HSZ-1V | HSZ-1.5V | HSZ-2V | HSZ-3V | HSZ-5V | HSZ-10V | HSZ-20V | HSZ-30V | HSZ-50V | HSZ-100V |
| Rated Load(T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 |
| Standard lift(M) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Test Load(T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 25 | 37.5 | 75 | 150 |
| Effort required at capacity(T) | 231 | 309 | 320 | 320 | 360 | 414 | 420 | 420*2 | 420*2 | 450*2 | 450*2 |
| Diameter of Load ChainMM) | 6 | 6 | 7.1 | 8 | 7.1/8 | 9/10 | 10 | 10 | 10 | 10 | 10 |
| NO.of Load Chains | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | 12 | 22 | 38 |
| Dimensions (mm) A | 136 | 156 | 182 | 198 | 182 | 266 | 365 | 630 | 670 | 900 | 900 |
| B | 115 | 143 | 148 | 152 | 148 | 181 | 181 | 192 | 330 | 410 | 675 |
| C | 270 | 317 | 399 | 414 | 465 | 636 | 798 | 890 | 1000 | 190 | 2300 |
| D | 25 | 27 | 34 | 36 | 38 | 48 | 87 | 84 | 84 | 130 | 180 |
| Net weight | 7 | 10.5 | 17 | 18 | 21/22 | 38/40 | 70 | 162 | 228 | 1085 | 1800 |
| Extra weigth per meter of extra lift(KG) | 1.5 | 1.8 | 2.1 | 2.3 | 3.1/3.8 | 4.6/5.4 | 9.8 | 19.6 | 28.3 | 50 | 87 |
Can I get a sample before order?
sure, we provide you Free sample within 3-5 working days.
can you accept small order?
for some normal items, we can do small quantity according your details requirement.
How about your delivery time?
25-30days
