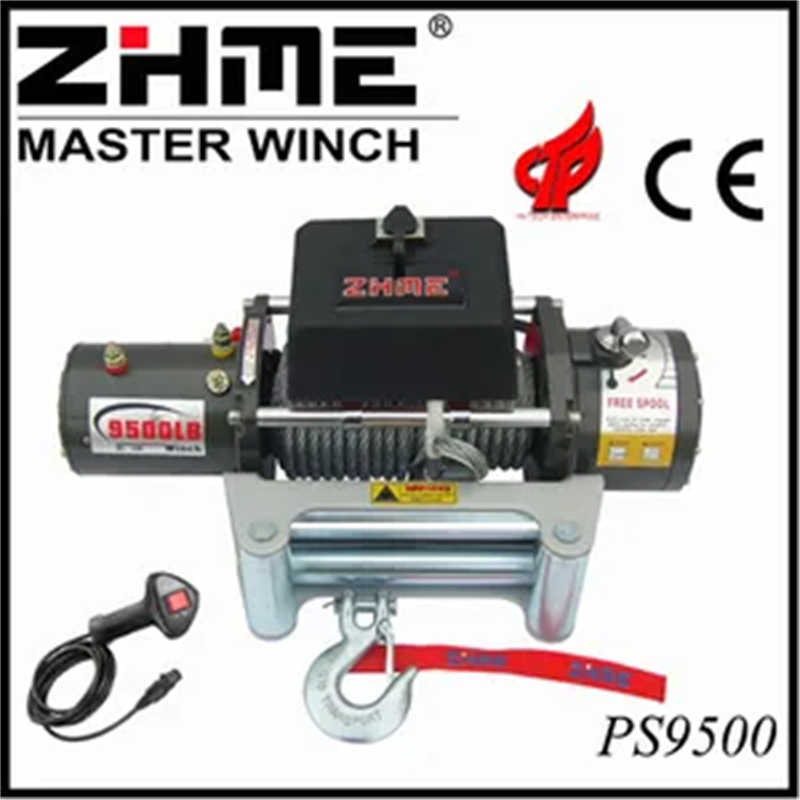

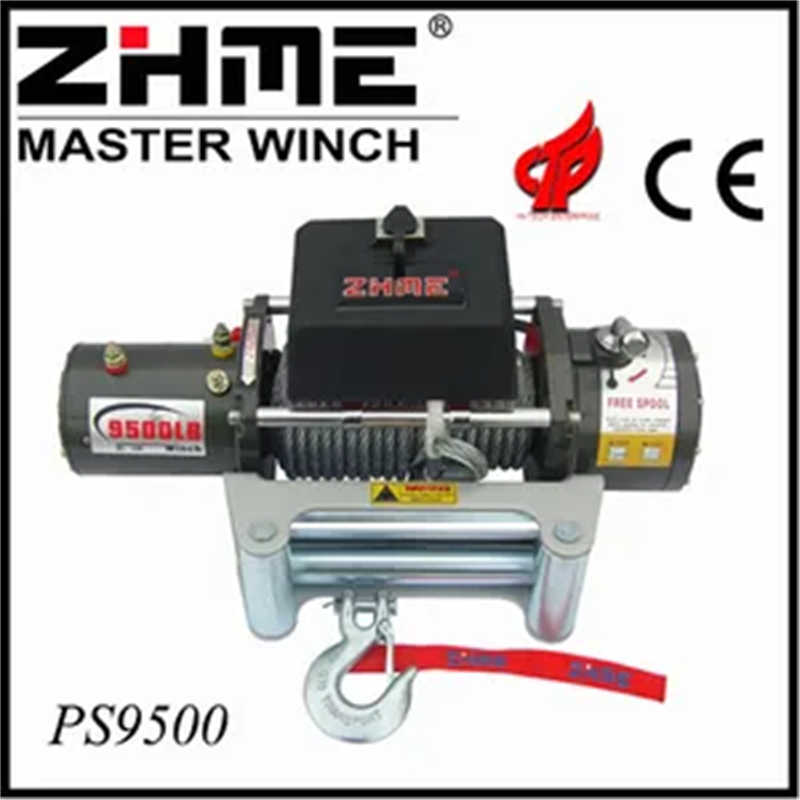

9500lbs Electric Winch with 12V DC Motor
$450.00 1 set
Qingdao Shanghai
L/C T/T
New
Winch
CE, ISO9001
ZHME
General manufacturing,Metal production industry,Renewable energy industry
Product Description
| Specification | ||||||
| Rated line pull: | 18000Lbs (8165kgs) single line | |||||
| Motor: | Series wound 6.8 hp /5.0kw, 12V DC | |||||
| Gear Train: | 3 stage planetary | |||||
| Gear ratio: | 345:1 | |||||
| Clutch: | Sliding Ring gear | |||||
| Braking action: | Automatic in the drum | |||||
| Fairlead: | Roller fairlead for wire rope | |||||
| Wire rope: | 11.5mm ×28m | |||||
| Drum size: | 3.5"×8.8"(88mm×224mm) | |||||
| Dimensions: | 23.9"×8.5"×9.4"( 608mm×216mm×239mm) | |||||
| Mounting bolt pattern: | 10"×4.5"(254mm×114.3mm) | |||||
| Battery: | Recommended 650 CCA minimum for winching 25 square mm,72"(1.83m) | |||||
| N.W: | 132lbs (60kgs) | |||||
| Packing: | 700mmx300mmx400mm (300pcs per 20' container) | |||||
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 2000 | 6000 | 12000 | 18000 |
| Kgs | 0 | 907 | 2722 | 5443 | 8165 | |
| Line speed | FPM | 19.7 | 12.5 | 8.2 | 6.2 | 3.8 |
| MPM | 6 | 3.8 | 2.5 | 1.9 | 1.1 | |
| Motor current | Amps | 70 | 120 | 200 | 290 | 440 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| Rated line pull per layer | Lbs | 18000 | 15300 | 13580 | 10560 | |
| Kgs | 8165 | 6940 | 6160 | 4790 | ||
| Cable capacity per layer | Ft. | 17.6 | 37 | 63 | 85 | |
| M | 5.4 | 11.4 | 19.4 | 26 | ||
