25 Ton Single Girder Overhead Crane High Capacity European Lifting System

25 Ton Single Girder Overhead Crane High Capacity European Lifting System

$6000.00

Min. Order: 1 set

Port: Qingdao Shanghai

Payment Terms: L/C T/T

Transport Package:

Conditions: New

Model: LD

Certifications: CE, ISO9001

Brand: Zhongyuan Hoisting

Application: General manufacturing,Metal production industry,Renewable energy industry

Contact Supplier

Add to Wish List

Max. Lifting Capacity: 32 t

Max. Lifting Height: 30m

Span: 7.5-31.5m

Voltage: 380v/440v/customized

Working Duty: A3,A4,A5

Color: Yellow,Customized

Brand/Trademark: Zhongyuan Hoisting

Model: LD

Origin: 中国

Warranty: 1 Years

Product Description

The ISO Standard 10 Ton Bridge Crane with a Single Girder Overhead design incorporates European Style Electric Hoist, tailored for industrial workshop lifting needs. This solution offers not only impressive functionality but also a competitive machine price.

Capacity

Unit

3.2T

6.3T

10T

12.5T

16T

20T

Span

5-25.5

5-28.5

5-30

Lifting height

3-30

5-30

7.5-30

10-30

Power supply

220v,240v,380v,400v,415v,440v,460v,480v,525v/3p/50HZ,60HZ

work class

A3,A4,A5,A7 or as customer requirement

Control voltage

24v,36v,48v,110v,220v

Lifting speed

m/min

8/1.3 Dual

8/1.3Dual

5/0.8Dual

5/0.8 Dual

5/0.8Dual

5/0.8 Dual

Trolley Speed

m/min

20/5 Frequency conversion dual speed

Long travel speed

m/min

30/10 Frequency conversion dual speed

Lifting motor

3.3/0.5

3.2/0.45

6/1

7.6/1.1

9.5/1.5

12.5/2

16/2.6

20/5

Trolley motor

1*0.37

1*0.64

1*0.95

1*1.1

2*0.95

Long travel motor

2*0.25-2*0.37

2*0.25-2*0.55

2*0.37-2*0.55

2*0.37-2*0.75

2*0.37-2*1.1

2*0.55-2*1.1

2*0.75-2*1.1

2*0.75-2*1.5

2*0.95-2*1.5

Crane power

4.17-4.41

4.17-4.77

4.31-4.67

7.38-8.14

8.98-9.74

8.98-10.44

11.55-12.65

16.2-15.8

18.4-18.9

24.1-24.9

Electrical parts brand

Schneider

Control model

Pendent control, Remote control

festoon system type

C track with flat cable

Recommended crane rail

40*30,50*30

50*30,60*40

60*40,70*40

IP/Isulation class

IP55/F class is default,IP65,IP66 and H class is optional

Brake Type

electro-magnetic brake

Max wheel load

8.7-24

13.4-30.2

19-35.9

27.5-47.7

33.7-55.3

42.3-65.8

51.2-76.9

62.8-92.1

79.9-117

79.9-142.3

Total weight

1.21-7

1.26-7.6

1.35-7.6

1.55-8.5

2-9.45

2.5-10.2

2.75-10.95

2.85-12.4

3.45-14.85

3.45-17

Trolley weight

0.2

0.22

0.23

0.33

0.37

0.58

0.61

1.03-2.01

2.23

Safety protection Function

security monitoring system,Overload protection, Hoisting overheat protection, Warning Horn and Falsh,Low voltage protection,over current protection, up&down position limit switch,cross limit switch,Door interlock limits

Product Description

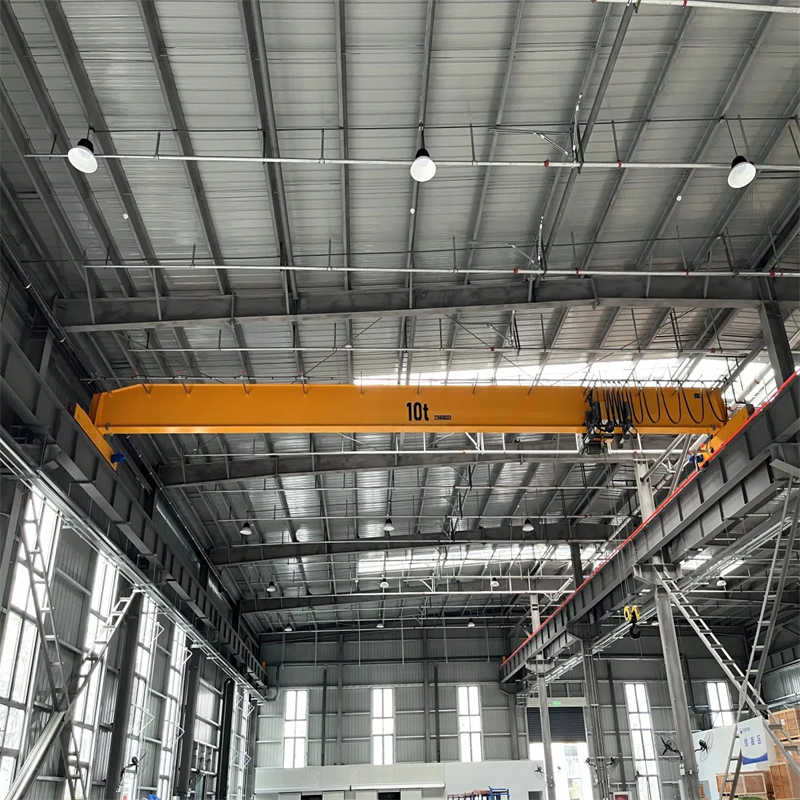

Our single girder crane stands as a pinnacle of industrial lifting equipment, known for its robust yet elegantly simple design. It features a single girder spanning over a sturdy support structure, complete with an efficient hoisting mechanism and a user-friendly control system. Ideally suited for installation in factories, workshops, or warehouses, this crane enhances operational efficiency.

Vantage 1:Experience a simplified structural design that boasts a compact profile, effectively reducing vertical headroom requirements. This design maximizes your workspace utilization, making it a remarkable choice for any facility.
Vantage 2:Enjoy cost-effectiveness with our European-style single girder cranes, which are not only economical to purchase but also to operate, offering you significant savings over time compared to other crane types.
Vantage 3:Benefit from modularity with our cranes. Their modular design empowers you to customize the lifting capacity, ranging typically from 1 to 20 tons, and the span, extending up to 30 meters, to perfectly suit your specific needs.
Vantage 4:Prioritize safety with our European-style single girder cranes. They come equipped with advanced safety devices designed to prevent accidents and ensure the utmost safety for workers during operations.
Vantage 5:Customization options, Our cranes can be precisely tailored to meet your specific lifting requirements, including adjustments to load capacity, span, and lifting height, ensuring optimal performance for your operations.
