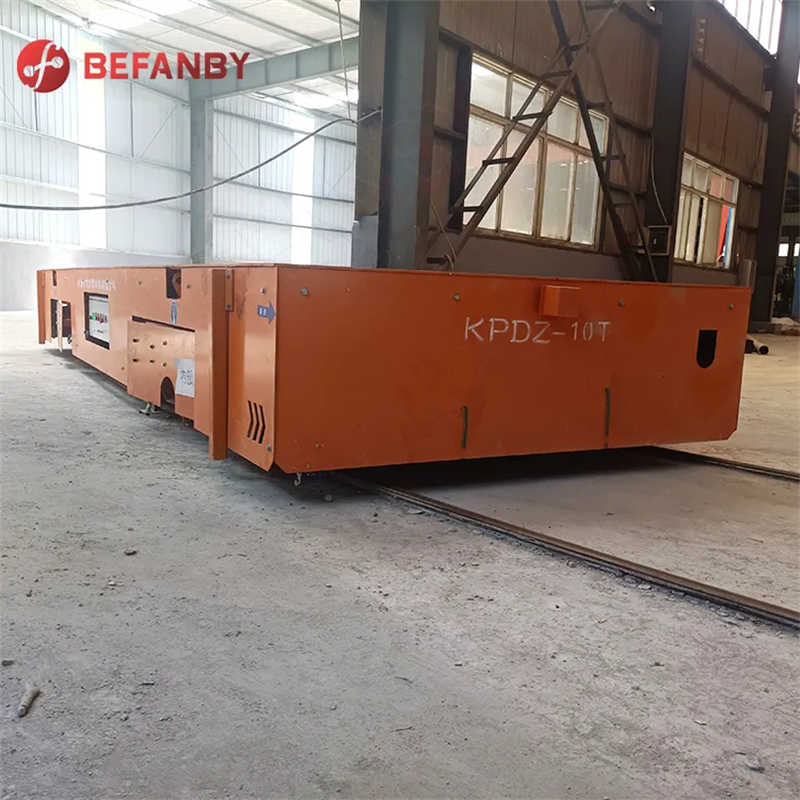

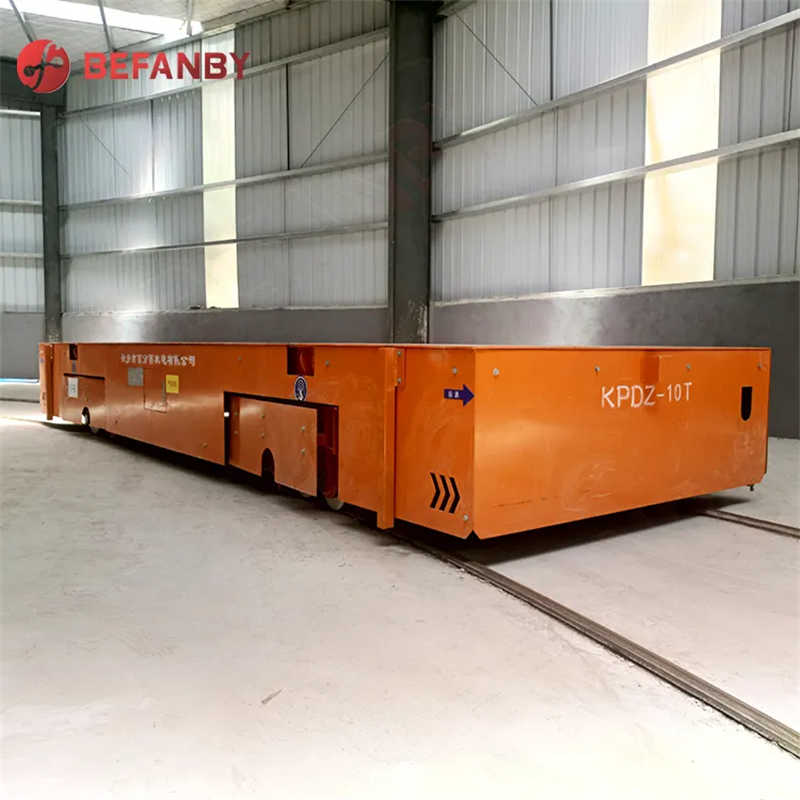

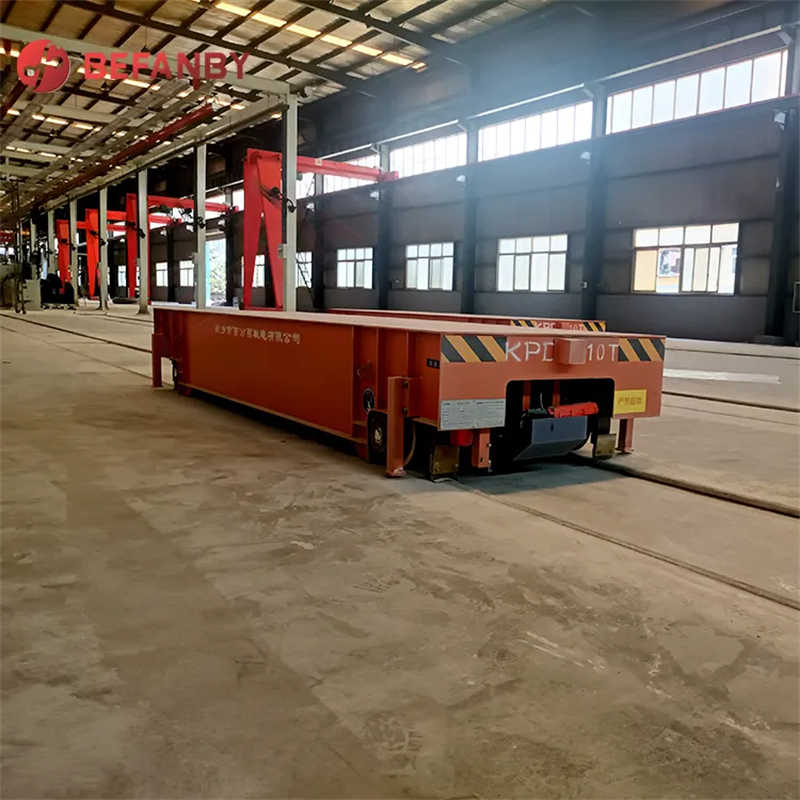

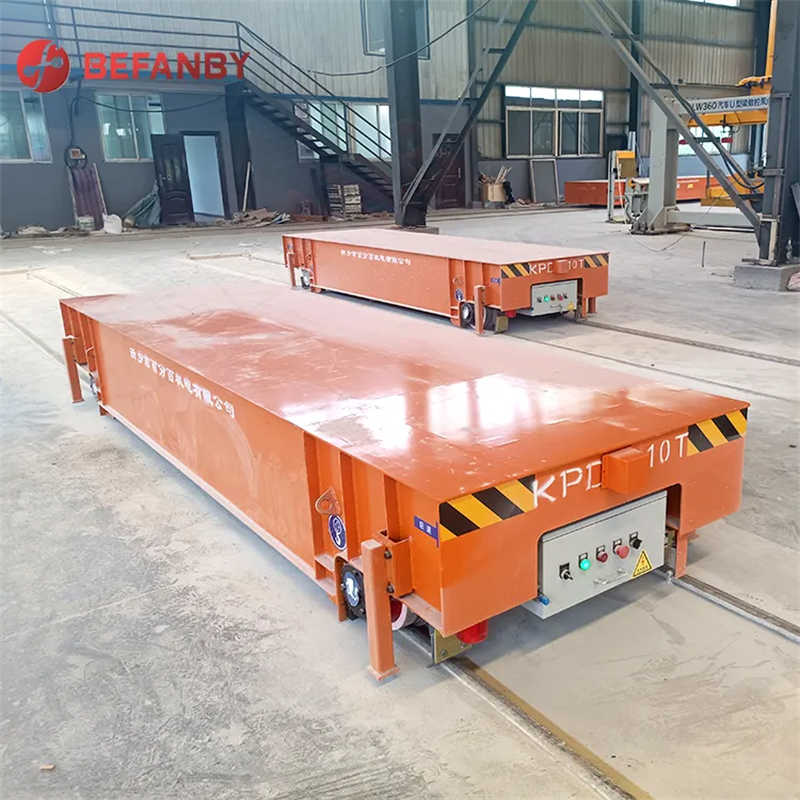

63T Motorized Transfer Cart Powered by Conducting Rails for Industry
$4500.00 1 set
Qingdao Shanghai
L/C T/T
New
KPD
CE, ISO9001
BEFANBY
General manufacturing
Product Description63T Motorized Transfer Cart Powered by Conducting Rails for IndustryThe low voltage railways transfer cart delivery usually comes with heavy duty electric rail transfer cart. It provides large load capacity, high frequency of use, long distance transportation. When the running distance is more than 70 meters, more transformers are needed to compensate for the rail pressure drop.
Features for transfer cart:
1. Running distance is unlimited.(More than 70 meters, need to add transformer.)
2. High frequency of use, unlimited running time.
3. The low voltage railways transfer cart can turn and run on "S" or curved tracks.
4. Customized for you.Custom table size, operating speed,load,etc.Meet your requirements.
Details Images
Product Parameter
| Model | KPD-5t | KPD-10t | KPD-25t | KPD-30t | KPD-40t | KPD-63t | |
| Rated load | 5 | 10 | 25 | 30 | 40 | 63 | |
| Table size | Length(L) | 3500 | 3600 | 4500 | 4500 | 5000 | 5600 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | |
| Height(H) | 450 | 500 | 600 | 600 | 650 | 750 | |
| Wheel base | 2500 | 2600 | 3200 | 3200 | 3800 | 4300 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 300 | 300 | 400 | 400 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1.2 | 1.6 | 3 | 3.5 | 4 | 6.3 | |
| Transformer Power | 5 | 5 | 6.8 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 60 | 50 | |
| Max Wheel Load | 25.8 | 42.6 | 94.5 | 110.4 | 142.8 | 221.4 | |
| Reference Weight | 3.6 | 4.2 | 6.5 | 6.8 | 7.6 | 10.8 | |
| Recommended Rail Model | P18 | P18 | P38 | P38 | P43 | P50 | |
