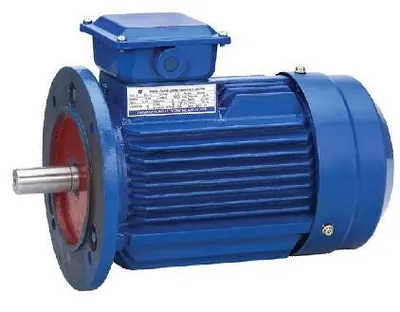

Y2 Series Three-Phase Asynchronous Motor

Y2 Serie three-phase asynchronous motor is designed for Europe market, The terminal box is located on the top of motor, the motor structure is compact and the appearance is attractive, the signs and nominal value are all in conformity with IEC standards the motor have some good feature, such as high effecient, energy-saving, high starting torque and easy maintenance etc.

Ambient temperature: -15 ~ 40 Centigrade
Altitude: Lower than 1000m
Rated voltage: 230/400V, 400/690V
Rated frequency: 50Hz or 60Hz
Connection: Star-connection for motors 3KW and lower output power
Delta-connection for motors 4KW and up output power
Duty: S1 (continuous running)
Protection: IP54/IP55
Insulation class: F
Cooling method: IC411

We can also produce it according to your requirements!
