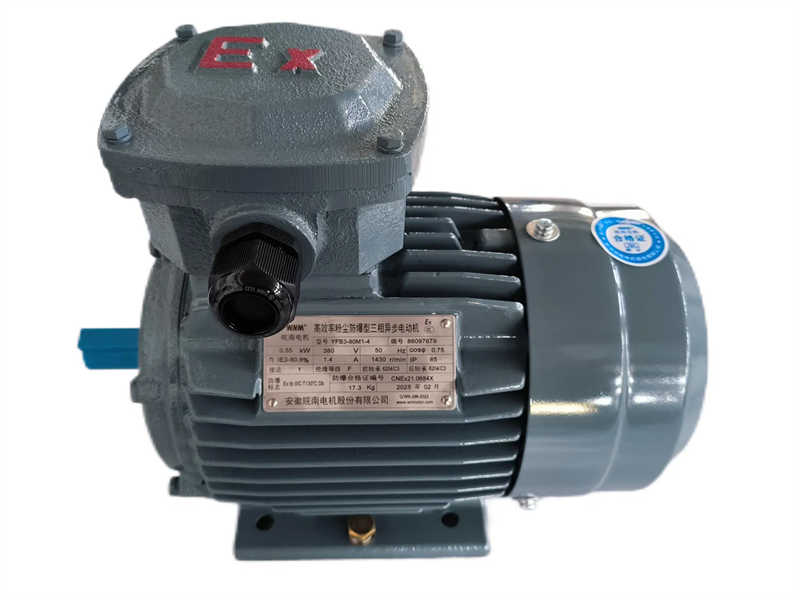

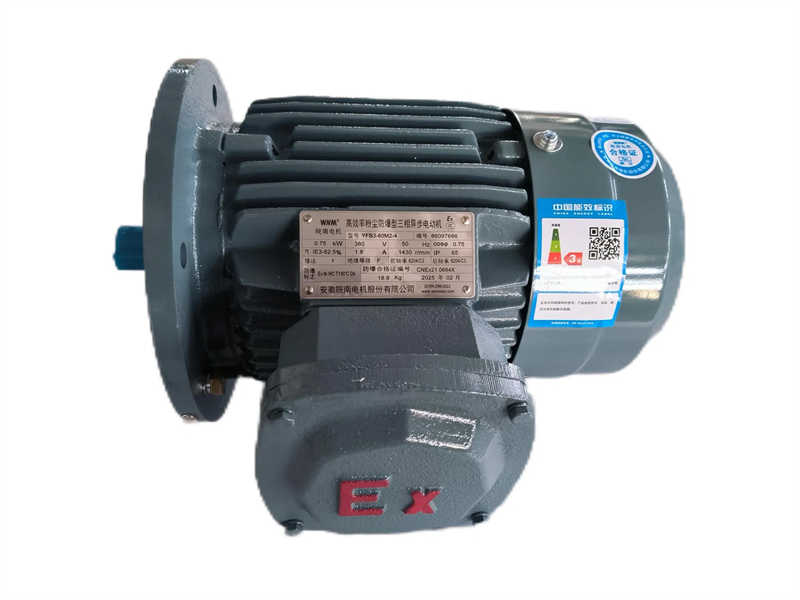

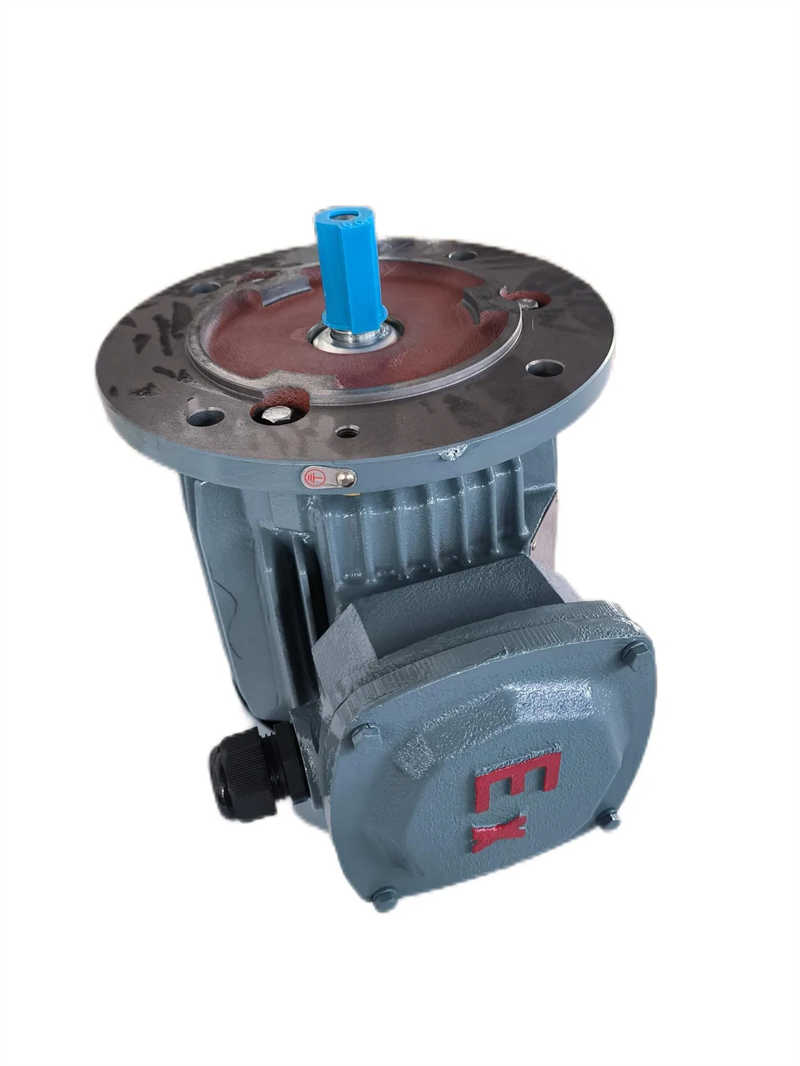

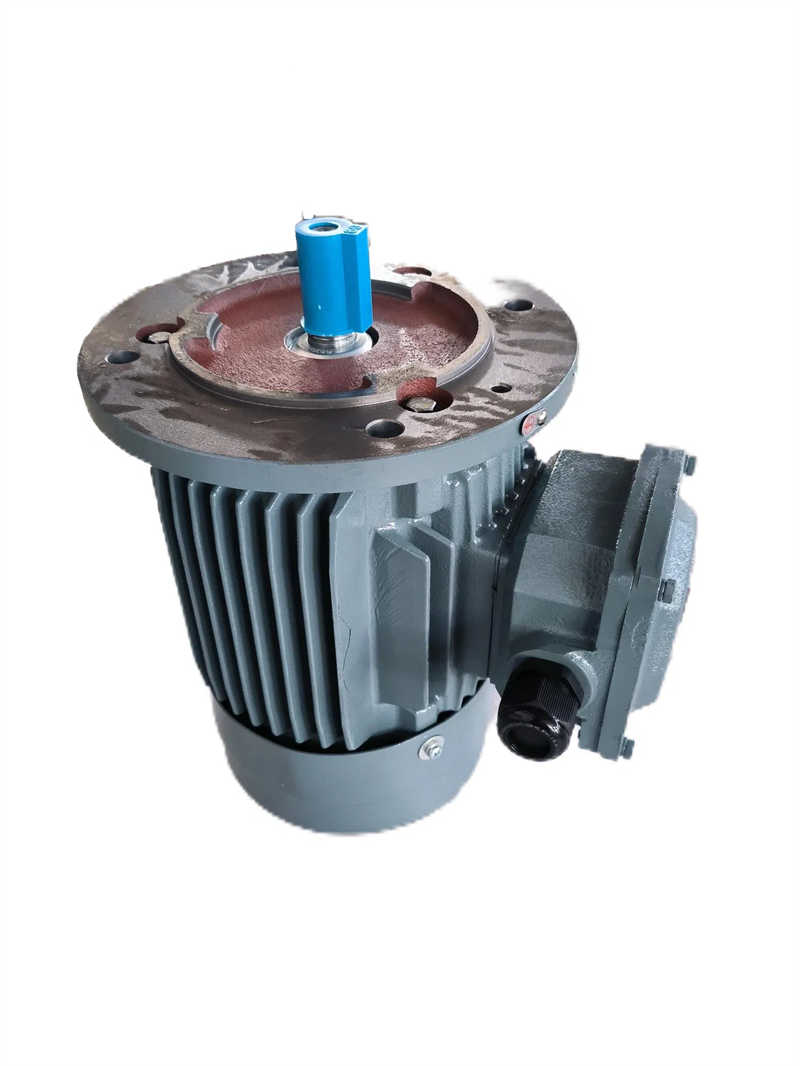

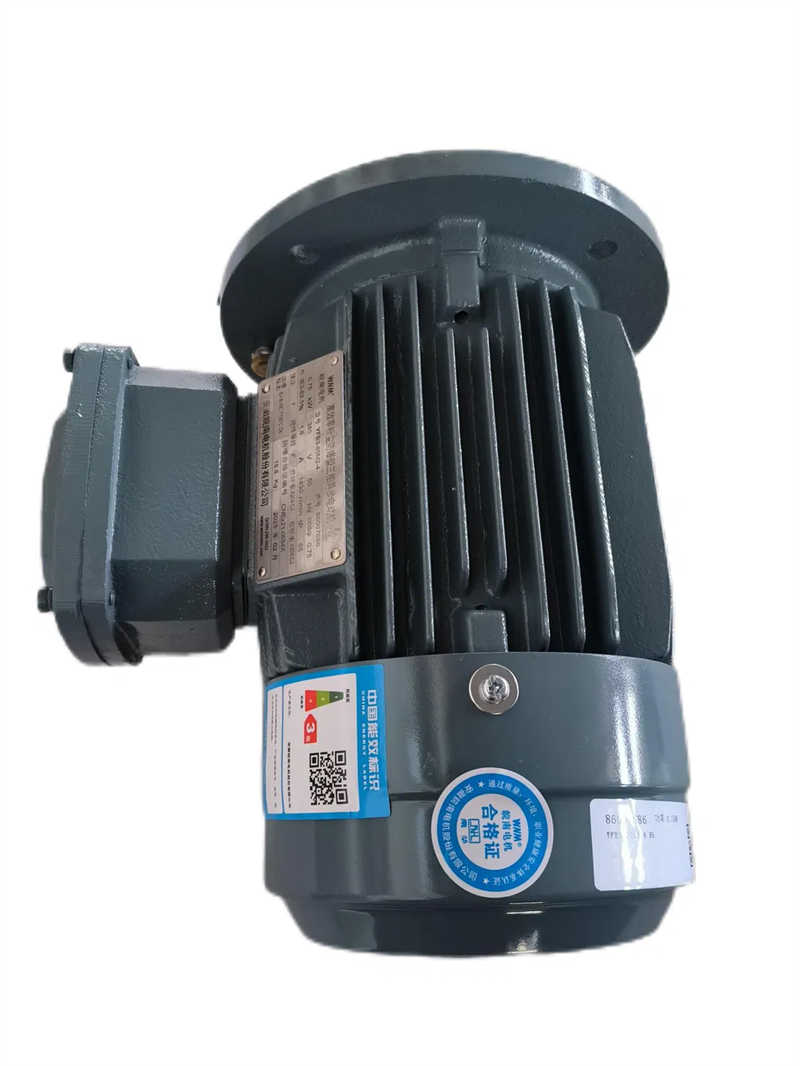

Heavy-Duty Ybx3 Explosion-Proof Motor for Superior Exhaust Fans

Heavy-Duty Ybx3 Explosion-Proof Motor for Superior Exhaust Fans

$200.00

Min. Order: 1 set

Port: Qingdao Shanghai

Payment Terms: L/C T/T

Transport Package:

Conditions: New

Model: YBX3

Certifications: CE, ISO9001

Brand: GUGE

Application: General manufacturing

Contact Supplier

Add to Wish List

Max. Lifting Capacity: t

Max. Lifting Height:

Span:

Voltage:

Working Duty: M3-M5

Color: Yellow,Customized

Brand/Trademark: GUGE

Model: YBX3

Origin: 中国

Warranty: 1 Years

Product Description

Experience unparalleled efficiency and innovation with the compact, lightweight, and high-torque Reliable High-Performance Yej Brake Motor by Changzhou Changyulong Reducer Co., Ltd. This engineering marvel delivers exceptional performance, ensuring stable, low-noise operation across various industries. With versatile installation options and compatibility with a broad spectrum of motor types, it becomes indispensable in sectors such as sewage treatment, chemical processing, pharmaceuticals, and more.

Explore a vast array of motor combinations, adaptable installation forms, and pioneering structural schemes with our state-of-the-art product. The precision-classified and finely-tuned transmission ratios are meticulously crafted to accommodate diverse operating conditions. This not only guarantees superior performance but also ensures you find the perfect match tailored to meet your specific requirements.

Constructed from reinforced high-strength cast iron, our product's casing epitomizes durability. The hardened gears, forged from premium alloy steel, undergo a meticulous process of carburizing, quenching, and fine grinding. This results in stable transmission, minimal noise, and exceptional load-bearing capacity. Its low temperature rise and extended service life make it the ideal choice for applications in metallurgy. 1. Features: Experience minimized offset output and a compact structure that maximizes box space. The integral casting box offers unparalleled rigidity, enhancing shaft strength and prolonging bearing life.

Detailed Photos

Safe and Durable Explosion-Proof Motor for Ventilation Systems

Product Parameters

Ambient Temperature: Ranging from -15ºC to 40ºC, ensuring versatility across varied environments.

Altitude: Engineered for optimal performance at locations up to 1000 meters.

Rated Voltage: Available options include 380V, 400V, and 415V to suit diverse requirements.

Rated Frequency: Seamlessly compatible with both 50Hz and 60Hz.

Connection: For outputs ≤3kW, utilize the 'Y' connection for optimal efficiency.
Outputs ≥4kW mandate the use of the '△' connection to ensure peak performance.
Duty: Designed for continuous operation (S1), ensuring unwavering reliability.

Ingress Protection: Rated at IP54/IP55, guaranteeing optimal safety and protection.
Insulation Class: Choose from Class B and Class F for tailored thermal management.
Cooling Method: Employs an efficient IC411 cooling system for superior heat dissipation.

Type	Output(Kw)	Rated voltage	Rated Gurent	Rated Sync speed r/min	Effciency %	Power factor COS	Rated torque	Locket torque Rated torque	Locket current Rated current	Pull out torque Rated torque	vdfassn class mm/s	Noise B(A)	weight kg


80M1-2	0.75	380	1.7	2850	80.7	0.83	2.5	2.3	6.8	2.3	1.6	67	29
80M2-2	1.1	380	2.43	2840	82.7	0.83	3.7	2.3	7.3	2.3	1.6	67	31
90S-2	1.5	380	3.22	2850	84.2	0.84	5	2.3	7.6	2.3	1.6	72	36
90L-2	2.2	380	4.58	2850	85.9	0.85	7.4	2.3	7.8	2.3	1.6	72	40
100L-2	3	380	6	2870	87.1	0.87	10	2.3	8.1	2.3	1.6	76	50
112M-2	4	380/660	7.8/4.5	2890	88.1	0.88	13.2	2.3	8.3	2.3	1.6	77	67
132S1-2	5.5	380/660	10.6/6.1	2900	89.2	0.88	18.1	2.2	8	2.3	1.6	80	85
132S2-2	7.5	380/660	14.2/8.2	2900	90.1	0.89	24.7	2.2	7.8	2.3	1.6	80	89
160M1-2	11	380/660	20.6/11.9	2940	91.2	0.89	35.7	2.2	7.9	2.3	2.2	86	152
160M2-2	15	380/660	27.9/16.0	2940	91.9	0.89	48.7	2.2	8	2.3	2.2	86	164
160L-2	18.5	380/660	34.2/19.7	2940	92.4	0.89	60.1	2.2	8.1	2.3	2.2	86	177
180M-2	22	380/660	40.5/23.3	2950	92.7	0.89	71.2	2.2	8.2	2.3	2.2	88	240
200L1-2	30	380/660	54.9/31.6	2950	93.3	0.89	97.1	2.2	7.5	2.3	2.2	90	289
200L2-2	37	380/660	67.4/38.8	2950	93.7	0.89	119.8	2.2	7.5	2.3	2.2	90	307
225M-2	45	380/660	81.7/47.1	2960	94	0.89	145.2	2.2	7.6	2.3	2.2	92	378
250M-2	55	380/660	99.6/57.3	2970	94.3	0.89	176.9	2.2	7.6	2.3	2.2	92	529
280S-2	75	380/660	135.2/77.8	2970	94.7	0.89	241.2	2	6.9	2.3	2.2	94	645
280M-2	90	380/660	161.7/93.1	2970	95	0.89	289.4	2	7	2.3	2.2	94	701
315S-2	110	380/660	197.3/113.6	2984	95.2	0.89	352	1.9	7.1	2.2	2.8	96	1075
315M-2	132	380/660	236/136	2984	95.4	0.89	422.5	1.9	7.1	2.2	2.8	96	1182
315L1-2	160	380/660	285.7/164.5	2984	95.6	0.89	512.1	1.9	7.1	2.2	2.8	98	1303
315L2-2	200	380/660	356.4/205.2	2984	95.8	0.89	640.1	1.9	7.1	2.2	2.8	98	1525
355S1-2	185	380/660	329.7/189.8	2980	95.8	0.89	592.9	1.9	7.1	2.2	2.8	98	1680
355S2-2	200	380/660	356.4/205.2	2980	95.8	0.89	640.9	1.9	7.1	2.2	2.8	98	1740
355M1-2	220	380/660	392.0/225.7	2980	95.8	0.89	705	1.8	7.1	2.2	2.8	100	1790
355M2-2	250	380/660	440.6/253.7	2980	95.8	0.9	801.2	1.8	7.1	2.2	2.8	100	1840
355L1-2	280	380/660	493.4/284.1	2980	95.8	0.9	897.3	1.8	7.1	2.2	2.8	100	2040
355L2-2	315	380/660	555.1/319.6	2980	95.8	0.9	1009.5	1.8	7.1	2.2	2.8	100	2060
80M1-4	0.55	380	1.43	1390	77.8	0.75	3.8	2.3	6.3	2.3	1.6	58	29
80M2-4	0.75	380	1.84	1390	82.5	0.75	5.2	2.3	6.5	2.3	1.6	58	30
90S-4	1.1	380	2.65	1390	84.1	0.75	7.6	2.3	6.6	2.3	1.6	61	37
90L-4	1.5	380	3.56	1390	85.3	0.75	10.3	2.3	6.9	2.3	1.6	61	40
100L1-4	2.2	380	4.8	1420	86.7	0.81	14.8	2.3	7.5	2.3	1.6	64	51
100L2-4	3	380	6.3	1420	87.7	0.82	20.2	2.3	7.6	2.3	1.6	64	56
112M-4	4	380/660	8.4/4.8	1430	88.6	0.82	26.7	2.3	7.7	2.3	1.6	65	72
132S-4	5.5	380/660	11.4/6.5	1450	89.6	0.82	36.2	2	7.5	2.3	1.6	71	90
132M-4	7.5	380/660	15.2/8.7	1450	90.4	0.83	49.4	2	7.4	2.3	1.6	71	102
160M-4	11	380/660	21.5/12.4	1460	91.4	0.85	72	2	7.5	2.3	2.2	75	148
160L-4	15	380/660	29.1/16.8	1460	92.1	0.85	98.1	2	7.5	2.3	2.2	75	168
180M-4	18.5	380/660	35.3/20.3	1470	92.6	0.86	120.2	2	7.7	2.3	2.2	76	221
180L-4	22	380/660	41.8/24.1	1470	93	0.86	142.9	2	7.8	2.3	2.2	76	296
200L-4	30	380/660	56.0/32.2	1470	93.6	0.87	194.9	2	7.2	2.3	2.2	79	379
225S-4	37	380/660	68.8/39.6	1480	93.9	0.87	238.8	2	7.3	2.3	2.2	81	409
225M-4	45	380/660	83.4/48.0	1480	94.2	0.87	290.4	2	7.4	2.3	2.2	81	507
250M-4	55	380/660	100.4/57.8	1480	94.6	0.88	354.9	2	7.4	2.3	2.2	83	699
280S-4	75	380/660	136.3/78.5	1480	95	0.88	484	2	6.7	2.3	2.2	86	724
280M-4	90	380/660	161.4/92.9	1480	95.2	0.88	580.7	2	7	2.3	2.2	86	756
315S-4	110	380/660	196.8/113.3	1484	95.4	0.89	707.9	2	7	2.2	2.8	93	1098
315M-4	132	380/660	235.7/135.7	1484	95.6	0.89	849.5	2	7	2.2	2.8	93	1150
315L1-4	160	380/660	285.1/164.2	1484	95.8	0.89	1029.7	2	7	2.2	2.8	94	1274
315L2-4	200	380/660	355.7/204.8	1484	96	0.89	1287.1	2	7	2.2	2.8	94	1566
355S1-4	185	380/660	329.0/189.4	1488	96	0.89	1187.3	2	7	2.2	2.8	94	1867
355S2-4	200	380/660	355.7/204.8	1488	96	0.89	1283.6	2	7	2.2	2.8	94	1917
355M1-4	220	380/660	391.2/225.3	1488	96	0.89	1412	2	7	2.2	2.8	95	1941
355M2-4	250	380/660	444.6/256.0	1488	96	0.89	1604.5	2	7	2.2	2.8	95	2006
355L1-4	280	380/660	497.9/286.7	1488	96	0.89	1797	2	7	2.2	2.8	95	2173
355L2-4	315	380/660	560.2/322.5	1488	96	0.89	2021.7	2	7	2.2	2.8	95	2203
80M1-6	0.37	380	1.3	890	62	0.7	4	1.9	4.7	2	1.6	54	28
80M2-6	0.55	380	1.58	890	73.6	0.72	5.9	1.9	4.7	2.1	1.6	54	30
90S-6	0.75	380	2.01	910	78.9	0.72	7.9	2.1	5.8	2.1	1.6	57	35
90L-6	1.1	380	2.83	910	81	0.73	11.5	2.1	5.9	2.1	1.6	57	40
100L-6	1.5	380	3.7	930	82.5	0.74	15.4	2.1	6	2.1	1.6	61	48
112M-6	2.2	380	5.4	940	84.3	0.74	22.4	2.1	6	2.1	1.6	65	62
132S-6	3	380	7.2	970	85.6	0.74	29.5	2	6.2	2.1	1.6	69	87
132M1-6	4	380/660	9.5/5.4	970	86.8	0.74	39.4	2	6.8	2.1	1.6	69	95
132M2-6	5.5	380/660	12.7/7.3	970	88	0.75	54.1	2	7.1	2.1	1.6	69	103
160M-6	7.5	380/660	16.4/9.4	970	89.1	0.78	73.8	2.1	6.7	2.1	2.2	73	147
160L-6	11	380/660	23.7/13.7	970	90.3	0.78	108.3	2.1	6.9	2.1	2.2	73	175
180L-6	15	380/660	30.9/17.8	980	91.2	0.81	146.2	2	7.2	2.1	2.2	73	230
200L1-6	18.5	380/660	37.8/21.8	980	91.7	0.81	180.3	2.1	7.2	2.1	2.2	76	281
200L2-6	22	380/660	44.2/24.5	980	92.2	0.82	214.4	2.1	7.3	2.1	2.2	76	284
225M-6	30	380/660	60.6/34.9	980	92.9	0.81	292.3	2	7.1	2.1	2.2	76	360
250M-6	37	380/660	72.2/41.3	980	93.3	0.84	360.6	2.1	7.1	2.1	2.2	78	482
280S-6	45	380/660	84.8/48.9	990	93.7	0.86	434.1	2.1	7.2	2	2.2	80	589
280M-6	55	380/660	103.3/59.5	990	94.1	0.86	530.6	2.1	7.2	2	2.2	80	655
315S-6	75	380/660	141.7/81.6	987	94.6	0.85	725.7	2	7	2	2.8	85	1074
315M-6	90	380/660	171.5/98.8	987	94.9	0.84	870.8	2	7	2	2.8	85	1170
315L1-6	110	380/660	206.8/119	987	95.1	0.85	1064.3	2	7	2	2.8	85	1295
315L2-6	132	380/660	244.5/140.7	987	95.4	0.86	1277.2	2	7	2	2.8	85	1450
355S-6	160	380/660	292.3/168.3	985	95.6	0.87	1551.3	1.9	7	2	2.8	92	1861
355M1-6	185	380/660	337.3/194.2	985	95.8	0.87	1793.7	1.9	7	2	2.8	92	1880
355M2-6	200	380/660	364.6/209.9	985	95.8	0.87	1939.1	1.9	7	2	2.8	92	1889
355L1-6	220	380/660	401.1/230.9	985	95.8	0.87	2133	1.9	7	2	2.8	92	2142
355L2-6	250	380/660	455.7/262.4	985	95.8	0.87	2423.9	1.9	7	2	2.8	92	2171
80M1-8	0.18	380	0.88	650	51	0.61	2.6	1.8	3.3	1.9	1.6	52	27
80M2-8	0.25	380	1.15	650	54	0.61	3.7	1.8	3.3	1.9	1.6	52	28
90S-8	0.37	380	1.49	670	62	0.61	5.3	1.8	4	1.9	1.6	56	34
90L-8	0.55	380	2.17	670	63	61	7.8	1.8	4	2	1.6	56	39
100L1-8	0.75	380	2.5	690	68.7	67	10.4	1.8	4	2	1.6	59	46
100L2-8	1.1	380	3.5	690	70.7	0.67	15.2	1.8	5	2	1.6	59	48
112M-8	1.5	380	4.4	690	72.8	0.71	20.8	1.8	5	2	1.6	61	62
132S-8	2.2	380	6	710	77.9	0.71	29.6	1.8	6	2	1.6	64	87
132M-8	3	380	7.9	710	78.9	0.73	40.4	1.8	6	2	1.6	64	95
160M1-8	4	380/660	10.4/6.0	720	79.9	0.73	53.1	1.9	6	2	2.2	68	138
160M2-8	5.5	380/660	13.8/7.9	720	82	0.74	73	1.9	6	2	2.2	68	145
160L-8	7.5	380/660	18.1/10.4	720	84	0.75	99.5	1.9	6	2	2.2	68	172
180L-8	11	380/660	25.8/14.8	720	86.4	0.75	146	2	6.5	2	2.2	70	226
200L-8	15	380/660	34.5/19.9	730	86.9	76	196.2	2	6.6	2	2.2	73	275
225S-8	18.5	380/660	41.5/23.9	740	89.1	0.76	238.8	1.9	6.6	2	2.2	73	336
225M-8	22	380/660	47.8/27.5	740	90.05	0.78	283.9	1.9	6.6	2	2.2	73	348
250M-8	30	380/660	63.8/37	740	90.4	0.79	387.2	1.9	6.5	2	2.2	75	475
280S-8	37	380/660	78.3/45.1	740	90.9	0.79	477.5	1.9	6.6	2	2.2	76	576
280M-8	45	380/660	94.7/54.5	740	91.4	0.79	580.7	1.9	6.6	2	2.2	76	635
315S-8	55	380/660	113.2/65.2	740	92.3	0.8	709.8	1.8	6.6	2	2.8	82	1048
315M-8	75	380/660	152.8/88	740	93.2	0.8	967.9	1.8	6.4	2	2.8	82	1120
315L1-8	90	380/660	182.8/105.3	740	93.5	0.8	1161.5	1.8	6.4	2	2.8	82	1260
315L2-8	110	380/660	218/125.5	740	93.5	0.82	1419.6	1.8	6.4	2	2.8	82	1380
355S-8	132	380/660	260.8/150.1	740	93.8	0.82	1703.5	1.8	6.4	2	2.8	90	1780
355M-8	160	380/660	315.4/181.6	740	94	0.82	2064.9	1.8	6.4	2	2.8	90	1820
355L1-8	185	380/660	364.7/210.0	740	94	82	2387.5	1.8	6.4	2	2.8	90	1830
355L2-8	200	380/660	388.7/223.8	740	94.2	0.83	2581.1	1.8	6.4	2	2.8	90	2050
315S-10	45	380/660	100/57.6	592	91.2	0.75	725.9	1.3	6.2	2	2.8	82	985
315M-10	55	380/660	121.4/69.9	592	91.8	0.75	887.2	1.3	6.2	2	2.8	82	1025
315L1-10	75	380/660	162.4/93.5	592	92.3	0.76	12090	1.3	6.2	2	2.8	82	1165
315L2-10	90	380/660	191.2/110.1	592	92.9	0.77	1451.9	1.3	6.2	2	2.8	82	1289
355S-10	90	380/660	191.2/110.1	585	92.9	0.77	1469.2	1.3	6.2	2	2.8	82	1695
355M1-10	110	380/660	230.2/132.5	585	93.1	0.78	1795.7	1.3	6	2	2.8	90	1785
355M2-10	132	380/660	275.0/158.3	585	93.5	0.78	2154.9	1.3	6	2	2.8	90	1850
355L1-10	160	380/660	333.3/191.9	585	93.5	0.78	2612	1.3	6	2	2.8	90	1948
355L2-10	185	380/660	385.4/221.9	585	93.5	0.78	3020.1	1.3	6	2	2.8	90	1970

Installation Instructions

Safe and Durable Explosion-Proof Motor for Ventilation Systems
