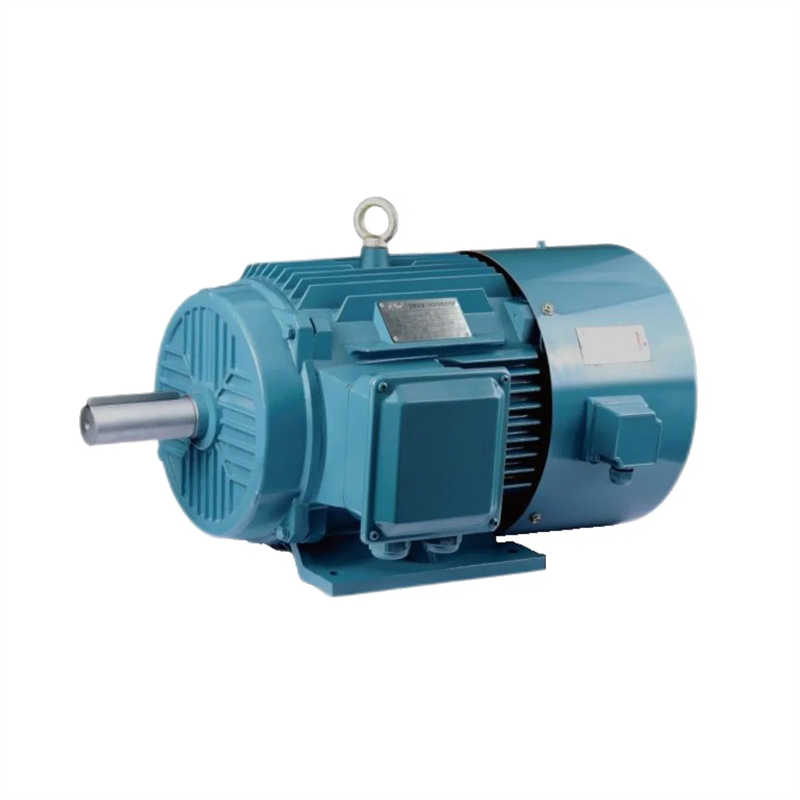

Three Phase Asynchronous Motor: Compatible with Spwm Frequency Changers
$200.00 1 set
Qingdao Shanghai
L/C T/T
New
YVF2
CE, ISO9001
GUGE
General manufacturing
Product Description
YVF2 series inverter duty three - phase asynchronous motor are suitable for running in frequency change and speed regulation system which the power is supplied by a frequency converter. This new series of product designed unitedly in the country can be mated with all kinds of SPWM frequency changer and speed regulation devices and is equipped with a separate cooling fan which ensure the motor for good cooling at various speed. They can be used in machine tool, metallugic industry, textile, printing and dyeing, transportation, chemical industry, mine and for seep regulation of fans and pumps.

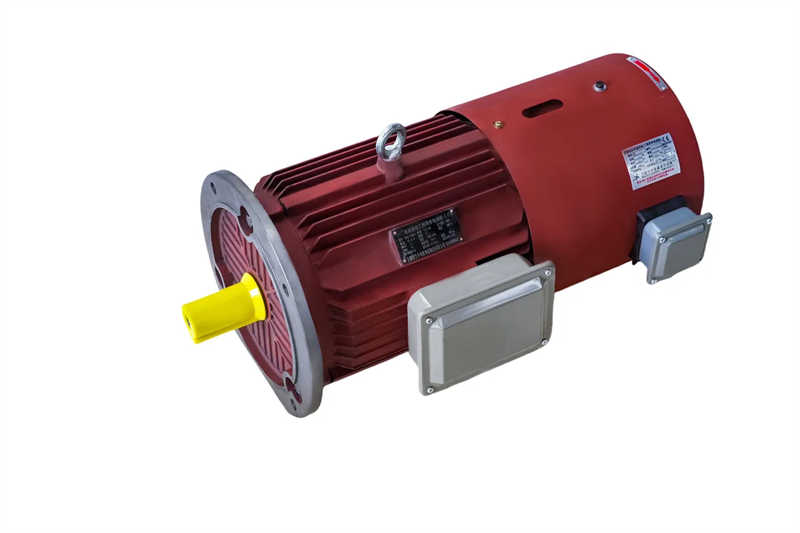

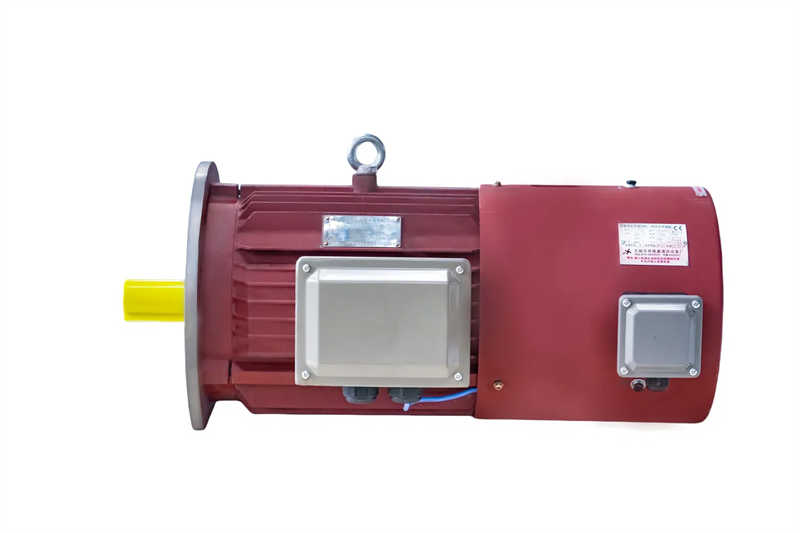

Detailed Photos
Product Parameters
Technical Data
Centre height of frame: 80-355mm
Power range:0.55-315kW
Rated voltage:380V or order
Rated frequency:50Hz or 60H
Protection class:IP54 or IP55
Insulation class:F
Duty type: S1
| Type | power kW | rated current A | speed r/min | efficiency Eff.% | power factor P.F | Rated torque N.m | noise dB(A) | Constant Torque Frequency Range Hz | Constant Output Frequency Range Hz |
| YVF2 | |||||||||
| Synchronous speed3000r/min | |||||||||
| YVF2-80M1-2 | 0.75 | 1.83 | 2845 | 75.0 | 0.83 | 2.52 | 73 | 5-50 | 50-100 |
| YVF2-80M2-2 | 1.1 | 2.61 | 2845 | 76.2 | 0.84 | 3.69 | 73 | ||
| YVF2-90S-2 | 1.5 | 3.46 | 2840 | 78.5 | 0.84 | 5.04 | 76 | ||
| YVF2-90L-2 | 2.2 | 4.85 | 2840 | 81.0 | 0.85 | 7.40 | 76 | ||
| YVF2-100L-2 | 3 | 6.34 | 2860 | 82.6 | 0.87 | 10.1 | 79 | ||
| YVF2-112M-2 | 4 | 8.20 | 2880 | 81.2 | 0.88 | 13.3 | 80 | ||
| YVF2-132S1-2 | 5.5 | 11.1 | 2900 | 85.7 | 0.88 | 8.1 | 86 | ||
| YVF2-132S2-2 | 7.5 | 14.9 | 2900 | 87.0 | 0.88 | 24.7 | 86 | ||
| YVF2-160M1-2 | 11 | 21.2 | 2930 | 88.4 | 0.89 | 35.9 | 90 | ||
| YVF2-160M2-2 | 15 | 28.6 | 2930 | 89.4 | 0.89 | 48.9 | 90 | ||
| YVF2-160L-2 | 18.5 | 34.7 | 2930 | 90.0 | 0.90 | 60.3 | 90 | ||
| YVF2-180M-2 | 22 | 41.0 | 2940 | 90.5 | 0.90 | 71.5 | 91 | ||
| YVF2-200L1-2 | 30 | 55.4 | 2950 | 91.4 | 0.90 | 97.0 | 92 | ||
| YVF2-200L2-2 | 37 | 67.9 | 2950 | 92.0 | 0.90 | 20 | 92 | ||
| YVF2-225M-2 | 45 | 82.1 | 2960 | 92.5 | 0.90 | 145 | 94 | ||
| YVF2-250M-2 | 55 | 99.8 | 2965 | 93.0 | 0.90 | 177 | 96 | 5-50 | 50-70 |
| YVF2-280S-2 | 75 | 135 | 2970 | 93.6 | 0.90 | 241 | 99 | ||
| YVF2-280M-2 | 90 | 160 | 2970 | 93.9 | 0.91 | 297 | 99 | ||
| YVF2-315S-2 | 110 | 195 | 2975 | 94.0 | 0.91 | 353 | 105 | 5-50 | 50-60 |
| YVF2-315M-2 | 132 | 233 | 2975 | 94.5 | 0.91 | 424 | 105 | ||
| YVF2-315L1-2 | 160 | 279 | 2975 | 94.6 | 0.92 | 514 | 109 | ||
| YVF2-315L-2 | 185 | 323 | 2975 | 94.6 | 0.92 | 594 | 109 | ||
| YVF2-315L2-2 | 200 | 348 | 2975 | 94.8 | 0.92 | 642 | 109 | ||
| YVF2-315L3-2 | 220 | 383 | 2975 | 94.8 | 0.92 | 706 | 109 | ||
| YVF2-355M1-2 | 220 | 383 | 2975 | 94.8 | 0.92 | 705 | 111 | ||
| YVF2-355M-2 | 250 | 435 | 2980 | 95.0 | 0.92 | 801 | 111 | ||
| YVF2-355L1-2 | 280 | 487 | 2980 | 95.0 | 0.92 | 897 | 113 | ||
| YVF2-355L-2 | 315 | 548 | 2980 | 95.0 | 0.92 | 1009 | 113 | ||
| YVF2-355L2-2 | 355 | 617 | 2980 | 95.0 | 0.92 | 1138 | 113 | ||
| YVF2-355L3-2 | 375 | 652 | 2980 | 95.0 | 0.92 | 1202 | 113 | ||
| Type | power kW | rated current A | speed r/min | efficiency Eff.% | power factor P.F | Rated torque N.m | noise dB(A) | Constant Torque Frequency Range Hz | Constant Output Frequency Range Hz |
| YVF2 | |||||||||
| Synchronous speed3000r/min | |||||||||
| YVF2-80M1-4 | 0.55 | 1.57 | 1390 | 71.0 | 0.75 | 3.78 | 73 | 5-50 | 50-100 |
| YVF2-80M2-4 | 0.75 | 2.05 | 1390 | 73.0 | 0.76 | 5.15 | 73 | ||
| YVF2-90S-4 | 1.1 | 2.85 | 1390 | 76.2 | 0.77 | 7.56 | 76 | ||
| YVF2-90L-4 | 1.5 | 3.68 | 1390 | 78.5 | 0.79 | 10.3 | 76 | ||
| YVF2-100L1-4 | 2.2 | 5.09 | 1410 | 81.0 | 0.81 | 14.9 | 79 | ||
| YVF2-100L2-4 | 3 | 6.73 | 1410 | 82.6 | 0.82 | 20.3 | 79 | ||
| YVF2-112M-4 | 4 | 8.80 | 1440 | 84.2 | 0.82 | 26.5 | 80 | ||
| YVF2-132S-4 | 5.5 | 11.7 | 1440 | 85.7 | 0.83 | 36.5 | 86 | ||
| YVF2-132M-4 | 7.5 | 15.6 | 1440 | 87.0 | 0.84 | 49.7 | 86 | ||
| YVF2-160M-4 | 11 | 22.5 | 1460 | 88.4 | 0.84 | 72.0 | 90 | ||
| YVF2-160L-4 | 15 | 30.0 | 1460 | 89.4 | 0.85 | 98.1 | 90 | ||
| YVF2-180M-4 | 18.5 | 36.3 | 1470 | 90.0 | 0.86 | 120 | 91 | ||
| YVF2-180L-4 | 22 | 42.9 | 1470 | 90.5 | 0.86 | 143 | 91 | ||
| YVF2-200L-4 | 30 | 58.0 | 1470 | 91.4 | 0.86 | 195 | 92 | ||
| YVF2-225S-4 | 37 | 70.2 | 1475 | 92.0 | 0.87 | 240 | 94 | ||
| YVF2-225M-4 | 45 | 85.0 | 1475 | 92.5 | 0.87 | 291 | 94 | ||
| YVF2-250M-4 | 55 | 103 | 1480 | 93.0 | 0.87 | 355 | 96 | ||
| YVF2-280S-4 | 75 | 140 | 1480 | 93.6 | 0.87 | 484 | 99 | ||
| YVF2-280M-4 | 90 | 167 | 1480 | 93.9 | 0.87 | 571 | 99 | ||
| YVF2-315S-4 | 110 | 201 | 1480 | 94.5 | 0.88 | 710 | 105 | ||
| YVF2-315M-4 | 132 | 240 | 1480 | 94.8 | 0.88 | 852 | 105 | ||
| YVF2-315L1-4 | 160 | 288 | 1480 | 94.9 | 0.89 | 1032 | 109 | ||
| YVF2-315L-4 | 185 | 333 | 1480 | 94.9 | 0.89 | 1194 | 109 | ||
| YVF2-315L2-4 | 200 | 360 | 1480 | 94.9 | 0.89 | 1291 | 109 | ||
| YVF2-315L3-4 | 220 | 396 | 1480 | 94.9 | 0.89 | 1420 | 109 | ||
| YVF2-355M1-4 | 220 | 396 | 1490 | 94.9 | 0.89 | 1410 | 111 | ||
| YVF2-355M-4 | 250 | 444 | 1490 | 95.1 | 0.90 | 1602 | 111 | ||
| YVF2-355L1-4 | 280 | 497 | 1490 | 95.1 | 0.90 | 1795 | 113 | ||
| YVF2-355L-4 | 315 | 559 | 1490 | 95.1 | 0.90 | 2019 | 113 | ||
| YVF2-355L2-4 | 355 | 630 | 1490 | 95.1 | 0.90 | 2275 | 113 | ||
| YVF2-355L3-4 | 375 | 666 | 1490 | 95.1 | 0.90 | 2404 | 113 | ||
| Type | power kW | rated current A | speed r/min | efficiency Eff.% | power factor P.F | Rated torque N.m | noise dB(A) | Constant Torque Frequency Range Hz | Constant Output Frequency Range Hz |
| YVF2 | |||||||||
| Synchronous speed3000r/min | |||||||||
| YVF2-80M1-6 | 0.37 | 1.30 | 885 | 62.0 | 0.70 | 3.99 | 73 | 5-50 | 50-100 |
| YVF2-80M2-6 | 0.55 | 1.79 | 885 | 65.0 | 0.72 | 5.94 | 73 | ||
| YVF2-90S-6 | 0.75 | 2.29 | 910 | 69.0 | 0.72 | 7.87 | 76 | ||
| YVF2-90L-6 | 1.1 | 3.18 | 910 | 72.0 | 0.73 | 11.5 | 76 | ||
| YVF2-100L-6 | 1.5 | 4.00 | 920 | 76.0 | 0.75 | 15.6 | 79 | ||
| YVF2-112M-6 | 2.2 | 5.57 | 935 | 79.0 | 0.76 | 22.5 | 80 | ||
| YVF2-132S-6 | 3 | 7.40 | 960 | 81.0 | 0.76 | 29.8 | 86 | ||
| YVF2-132M1-6 | 4 | 9.75 | 960 | 82.0 | 0.76 | 39.8 | 86 | ||
| YVF2-132M2-6 | 5.5 | 12.9 | 965 | 84.0 | 0.77 | 54.4 | 86 | ||
| YVF2-160M-6 | 7.5 | 17.2 | 970 | 86.0 | 0.77 | 73.8 | 90 | ||
| YVF2-160L-6 | 11 | 24.5 | 970 | 87.5 | 0.78 | 108 | 90 | ||
| YVF2-180L-6 | 15 | 31.6 | 970 | 89.0 | 0.81 | 148 | 91 | ||
| YVF2-200L1-6 | 18.5 | 38.6 | 980 | 90.0 | 0.81 | 180 | 92 | ||
| YVF2-200L2-6 | 22 | 44.7 | 980 | 90.0 | 0.83 | 214 | 92 | ||
| YVF2-225M-6 | 30 | 59.3 | 980 | 91.5 | 0.84 | 292 | 94 | ||
| YVF2-250M-6 | 37 | 71.1 | 980 | 92.0 | 0.86 | 361 | 96 | ||
| YVF2-280S-6 | 45 | 85.9 | 980 | 92.5 | 0.86 | 439 | 99 | ||
| YVF2-280M-6 | 55 | 105 | 980 | 92.8 | 0.86 | 536 | 99 | ||
| YVF2-315S-6 | 75 | 142 | 985 | 93.5 | 0.86 | 727 | 105 | ||
| YVF2-315M-6 | 90 | 170 | 985 | 93.8 | 0.86 | 873 | 05 | ||
| YVF2-315L1-6 | 110 | 207 | 985 | 94.0 | 0.86 | 1066 | 109 | ||
| YVF2-315L2-6 | 132 | 245 | 985 | 94.2 | 0.86 | 1280 | 109 | ||
| YVF2-315L3-6 | 160 | 292 | 985 | 94.5 | 0.87 | 551 | 109 | ||
| YVF2-355M1-6 | 160 | 292 | 990 | 94.5 | 0.88 | 543 | 111 | ||
| YVF2-355M-6 | 185 | 338 | 990 | 94.5 | 0.88 | 1785 | 111 | ||
| YVF2-355M2-6 | 200 | 364 | 990 | 94.8 | 0.88 | 1929 | 111 | ||
| YVF2-355L1-6 | 220 | 401 | 990 | 94.8 | 0.88 | 2122 | 113 | ||
| YVF2-355L-6 | 250 | 454 | 990 | 95.0 | 0.88 | 2412 | 113 | ||
| YVF2-355L2-6 | 280 | 509 | 990 | 95.0 | 0.88 | 2701 | 113 | ||
| YVF2-355L3-6 | 315 | 572 | 990 | 95.0 | 0.88 | 3039 | 113 | ||
| Type | power kW | rated current A | speed r/min | efficiency Eff.% | power factor P.F | Rated torque N.m | noise dB(A) | Constant Torque Frequency Range Hz | Constant Output Frequency Range Hz |
| YVF2 | |||||||||
| Synchronous speed3000r/min | |||||||||
| YVF2-80M1-8 | 0.18 | 0.88 | 645 | 51.0 | 0.61 | 2.67 | 73 | 5-50 | 50-100 |
| YVF2-80M2-8 | 0.25 | 1.15 | 645 | 54.0 | 0.61 | 3.70 | 73 | ||
| YVF2-90S-8 | 0.37 | 1.49 | 670 | 62.0 | 0.61 | 5.27 | 76 | ||
| YVF2-90L-8 | 0.55 | 2.17 | 670 | 63.0 | 0.61 | 7.84 | 76 | ||
| YVF2-100L1-8 | 0.75 | 2.40 | 680 | 71.0 | 0.67 | 10.5 | 79 | ||
| YVF2-100L2-8 | 1.1 | 3.32 | 680 | 73.0 | 0.69 | 15.4 | 79 | ||
| YVF2-112M-8 | 1.5 | 4.40 | 690 | 75.0 | 0.69 | 20.8 | 80 | ||
| YVF2-132S-8 | 2.2 | 6.04 | 705 | 78.0 | 0.71 | 29.8 | 86 | ||
| YVF2-132M-8 | 3 | 7.90 | 705 | 79.0 | 0.73 | 40.6 | 86 | ||
| YVF2-160M1-8 | 4 | 10.3 | 720 | 81.0 | 0.73 | 53.1 | 90 | ||
| YVF2-160M2-8 | 5.5 | 13.6 | 720 | 83.0 | 0.74 | 73.0 | 90 | ||
| YVF2-160L-8 | 7.5 | 17.8 | 720 | 85.5 | 0.75 | 99.5 | 90 | ||
| YVF2-180L-8 | 11 | 25.1 | 730 | 87.5 | 0.76 | 144 | 91 | ||
| YVF2-200L-8 | 15 | 34.1 | 730 | 88.0 | 0.76 | 196 | 92 | ||
| YVF2-225S-8 | 18.5 | 41.1 | 730 | 90.0 | 0.76 | 242 | 94 | ||
| YVF2-225M-8 | 22 | 47.4 | 730 | 90.5 | 0.78 | 288 | 94 | ||
| YVF2-250M-8 | 30 | 63.4 | 735 | 91.0 | 0.79 | 390 | 96 | ||
| YVF2-280S-8 | 37 | 77.8 | 735 | 91.5 | 0.79 | 481 | 99 | ||
| YVF2-280M-8 | 45 | 94.1 | 735 | 92.0 | 0.79 | 585 | 99 | ||
| YVF2-315S-8 | 55 | 111 | 735 | 92.8 | 0.81 | 715 | 105 | ||
| YVF2-315M-8 | 75 | 51 | 735 | 93.0 | 0.81 | 974 | 105 | ||
| YVF2-315L1-8 | 90 | 178 | 735 | 93.8 | 0.82 | 1169 | 109 | ||
| YVF2-315L2-8 | 110 | 217 | 735 | 94.0 | 0.82 | 1429 | 109 | ||
| YVF2-355M1-8 | 132 | 261 | 740 | 93.7 | 0.82 | 1704 | 111 | ||
| YVF2-355M2-8 | 160 | 315 | 740 | 94.2 | 0.82 | 2065 | 111 | ||
| YVF2-355L1-8 | 185 | 364 | 740 | 94.2 | 0.82 | 2388 | 113 | ||
| YVF2-355L-8 | 200 | 387 | 740 | 94.5 | 0.83 | 2581 | 113 | ||
| YVF2-355L2-8 | 220 | 426 | 740 | 94.5 | 0.83 | 2839 | 113 | ||
| YVF2-355L3-8 | 250 | 484 | 740 | 94.5 | 0.83 | 3226 | 113 | ||
| Synchronous speed3000r/min | |||||||||
| YVF2-315S-10 | 45 | 100 | 590 | 91.5 | 0.75 | 728 | 105 | 5-50 | 50-100 |
| YVF2-315M-10 | 55 | 121 | 590 | 92.0 | 0.75 | 890 | 105 | ||
| YVF2-315L1-10 | 75 | 162 | 590 | 95.5 | 0.76 | 1214 | 109 | ||
| YVF2-315L2-10 | 90 | 191 | 590 | 93.0 | 0.77 | 1457 | 109 | ||
| YVF2-355M1-10 | 110 | 230 | 590 | 93.2 | 0.78 | 1751 | 111 | ||
| YVF2-355M2-10 | 132 | 275 | 590 | 93.5 | 0.78 | 2137 | 111 | ||
| YVF2-355L1-10 | 160 | 333 | 590 | 93.5 | 0.78 | 2590 | 113 | ||
| YVF2-355L-10 | 185 | 385 | 590 | 93.5 | 0.78 | 2994 | 113 | ||
| YVF2-355L2-10 | 200 | 417 | 590 | 93.5 | 0.78 | 3237 | 113 | ||
| YVF2-355L3-10 | 220 | 458 | 590 | 93.5 | 0.78 | 3561 | 113 | ||
Installation Instructions
Company Profile
With a heritage of excellence, Changzhou Changyulong Reducer Co., Ltd specializes in manufacturing high-quality cycloidal gear reducers. Our extensive production history and stringent adherence to JB298281 ministry standards ensure exemplary quality. Recognized by the International Provincial Bureau, our products are synonymous with modern cycloidal gear excellence.
Our innovative cycloidal pinwheel reducers employ the planetary transmission principle and cycloidal pinwheel tooth meshing, making them perfect for textile printing, dyeing, light industry, food processing, and various heavy industries like metallurgy, mining, and construction. They provide top-notch drive and speed regulation solutions.
At Changzhou Changyulong Reducer Co., Ltd, our cycloidal reducers offer unmatched quality and reliability, with a vast array of specifications at competitive prices. Upholding the principles of sincerity and credibility, we prioritize quality and customer satisfaction, delivering significant technical and economic benefits across industries.
Certifications
Packaging & Shipping
FAQ
Q: What're your main products?
A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
