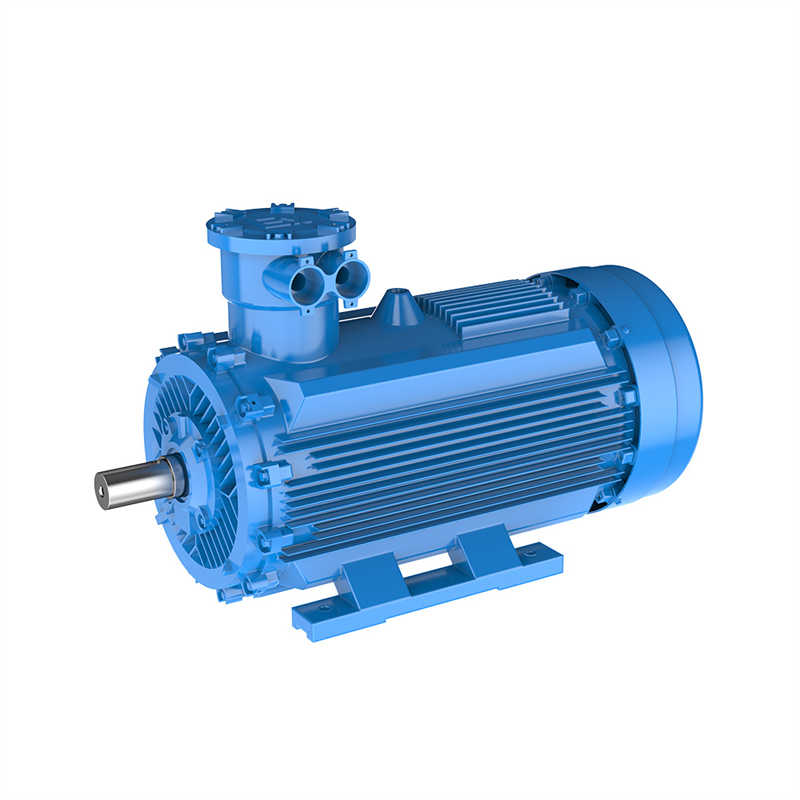

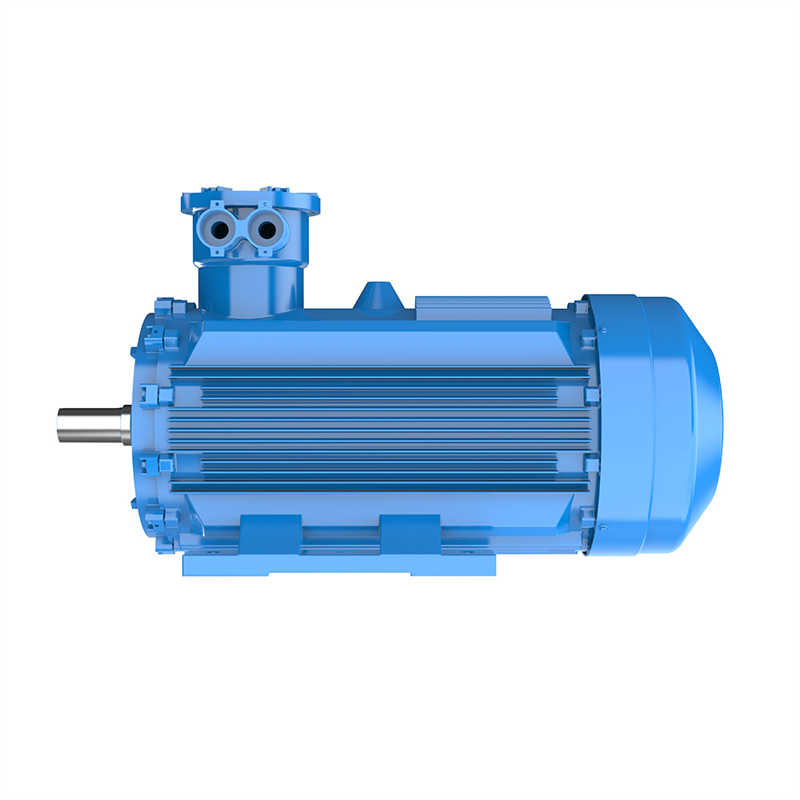

YBK3 Series Flame-Proof Three-Phase Induction Motors For Mining Application

YBK3 Series Flame-Proof  Three-Phase Induction Motors For Mining Application

Features

· Explosion proof signs are Exd ll AT4 and Exd ll BT4.

· The explosion-proof structure is reasonable, easy to maintain, and has high reliability.

· Efficient, high starting torque capability, and low temperature rise.

· The junction box can be made into three or six output terminals, suitable for two types of structures: rubber sheathed cables and steel pipe wiring.

· Modular design, which can be quickly designed according to customer needs.

Technical parameter

Rated power: 0.18-315kW

Rated voltage: 380V 660V 1140V

Number of poles: 2 4 6 8 10

Insulation level: F

Cooling method: IC411IC416Working System: S1

Application area

Places such as mines, petrochemicals, coal, grain and oil, textiles, etc. that contain Class II A and Class B flammable gases or explosive mixtures formed by steam and air in groups T1-T4.
