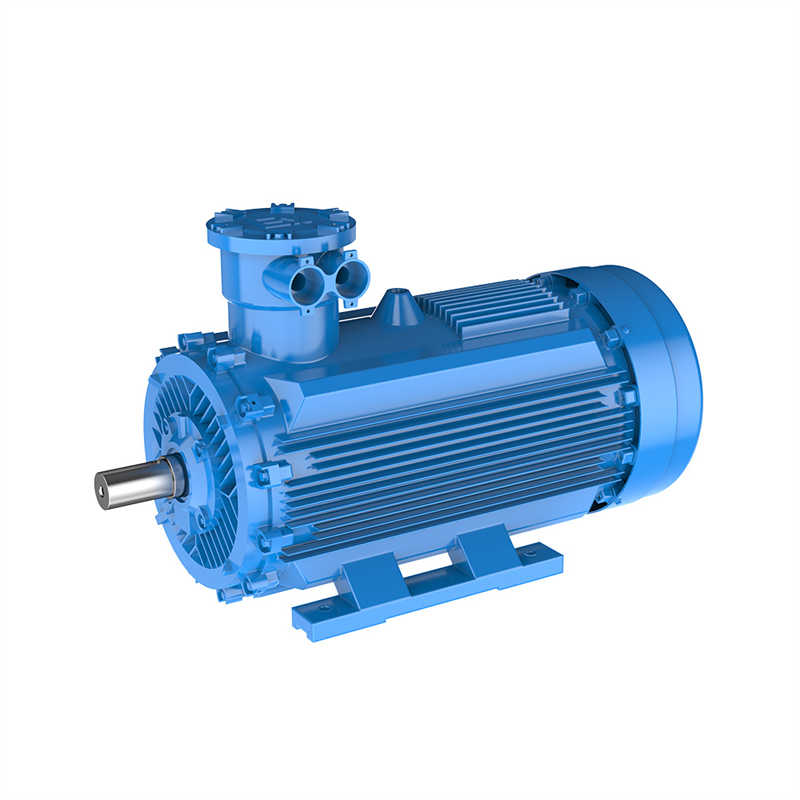

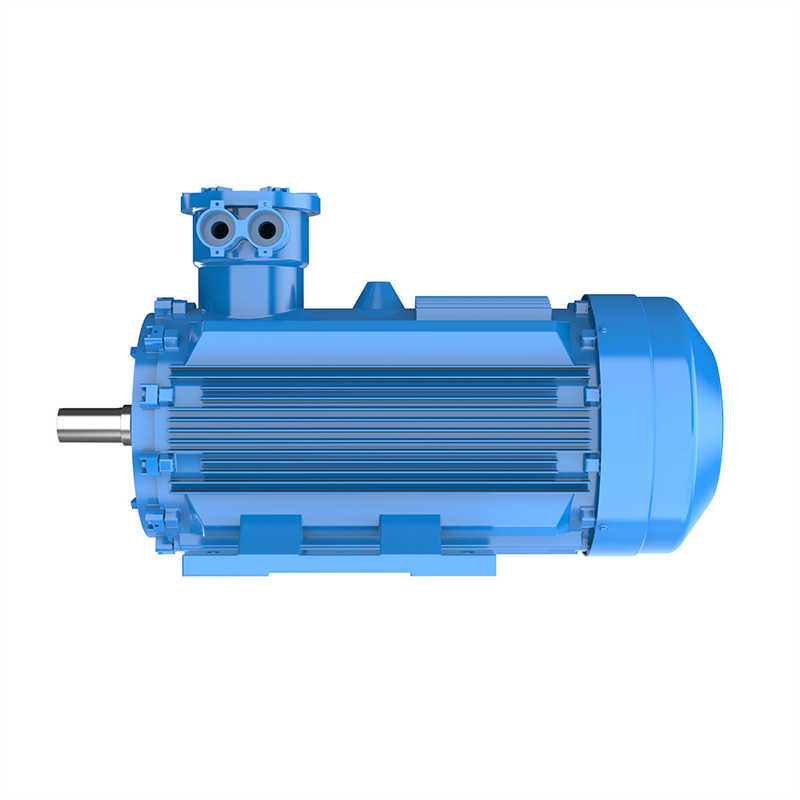

DPM Series High-Efficiency Permanent Magnet Synchronous（Servo） Motors

DPM Series High-Efficiency  Permanent Magnet Synchronous（Servo） Motors

Features

· Interchangeable installation, can replace three-phase AC asynchronous motors.

· Efficient and energy-saving, the entire series of efficiency meets the national level 1 energy efficiency standard.

· Small and lightweight, with high power density and torque density.

· Using high intrinsic coercivity rare earth permanent magnet materials, it has a high temperature resistance level and high reliability.

· The mechanical characteristic curve is relatively hard, suitable for frequent starting, variable speed and load, and high speed and position accuracy working conditions.

Technical parameter

Rated power: 0.75-250kW

Rated voltage: 380V

Energy efficiency level: IE4

Protection level: IP55

Cooling method: IC416

Working mode: S1

Insulation level: F level

Application area

Various mechanical equipment in industries such as metallurgy, mining, transportation, cement, construction, chemical, textile, light industry, and energy, such as pumps, fans, mixers, lifting equipment, conveying equipment, etc.
