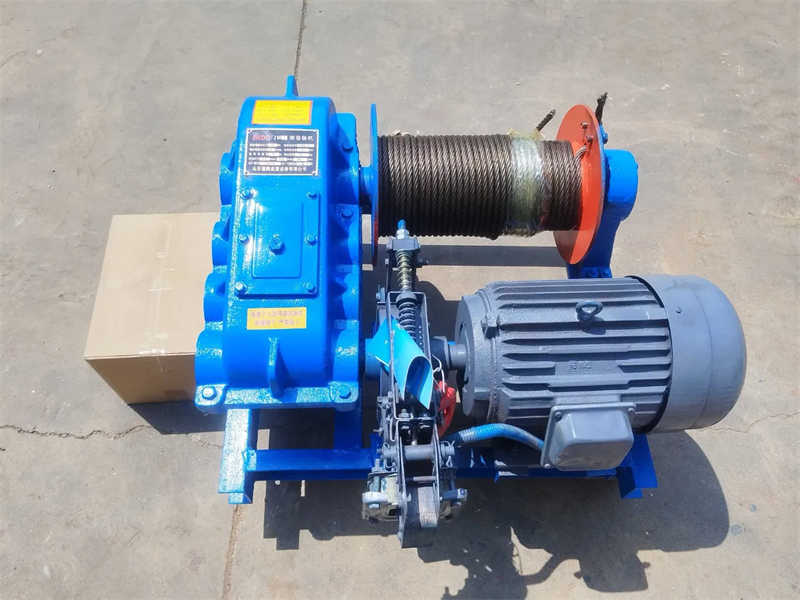

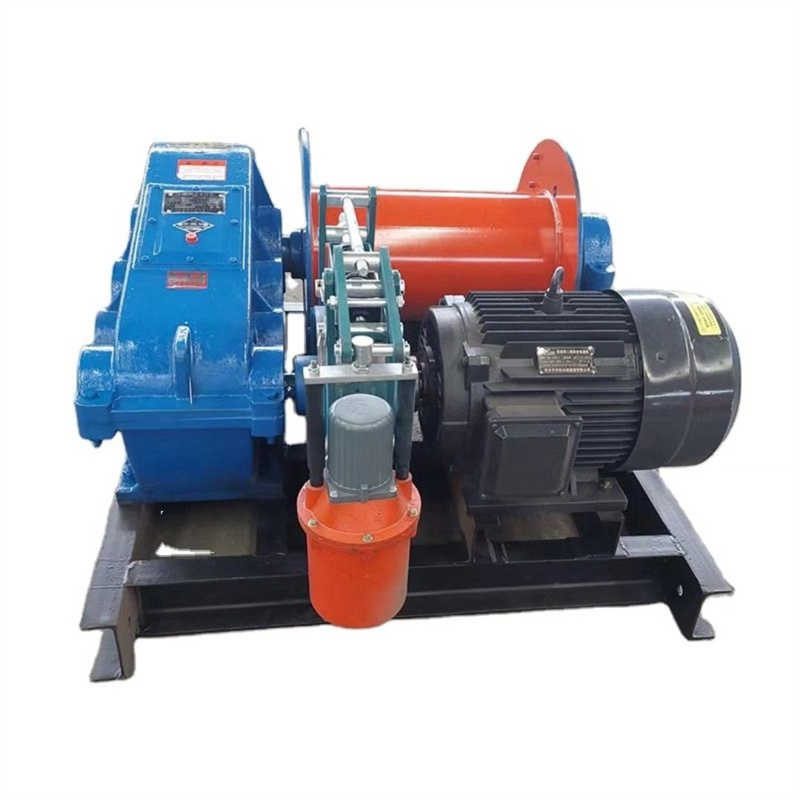

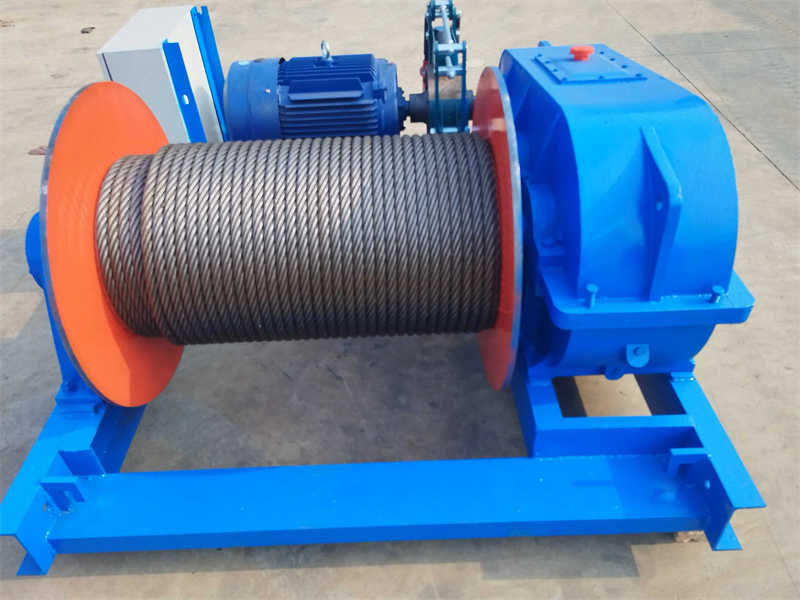

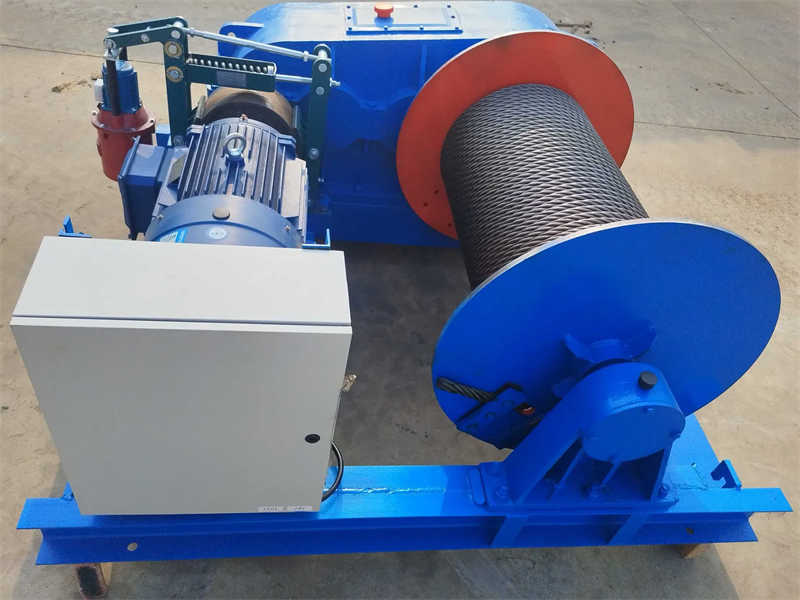

Remote Controlled Electric Winch | 15-Ton Capacity | Slow & Precise Operation
$2000.00 1 set
Qingdao Shanghai
L/C T/T
New
JM
CE, ISO9001
Chongpeng
General manufacturing
Technical Parameter
| Model | Rated load (kn) | Average Speed of Rope (m/min) | Capacity of Rope(m) | Rope diameter | Motor Power(kw) | Overall Dimension(mm) | Total Weight(kg) |
| JM10 | 100 | 8 | 170 | 30 | 22 | 2090*1475*956 | 3000 |
| JM10B | 100 | 9.5 | 250 | 21.5 | 22 | 1705*1598*985 | 3500 |
| JM12.5 | 125 | 8 | 300 | 34 | 30 | 2880*2200*1550 | 5000 |
| JM13.5 | 135 | 8 | 290 | 28 | 22 | 2990*2362*1650 | 6500 |
| JM16 | 160 | 10 | 500 | 37 | 37 | 3750*2400*1850 | 8800 |
| JM20 | 200 | 10 | 600 | 43 | 45 | 3950*2560*1950 | 9900 |
| JM25 | 250 | 9 | 700 | 48 | 55 | 4350*2800*2030 | 13500 |
| JM32 | 320 | 9 | 700 | 56 | 75 | 4500*2850*2100 | 14800 |
| JM50 | 500 | 9 | 800 | 65 | 90 | 4930*3050*2250 | 19500 |
| JM65 | 650 | 10.5 | 3600 | 64 | 160 | 5900*4680*3200 | 46000 |
Features
Precision needle bearing used in high-load areas offering lower friction level and longer life.
High impact case providing weather resistance and protection for internal components.
Durable hook safety snap keeping the loads attached.
Gear reducer driving type.
It could lift, drag and drop vertically.
Rope arranged orderly, safe and reliable on performance.
Gear reducer driving type.
JM electric capstan winches are gear reducer driving, which is mainly used for hoisting pull and unloading tow the heavy weight.
