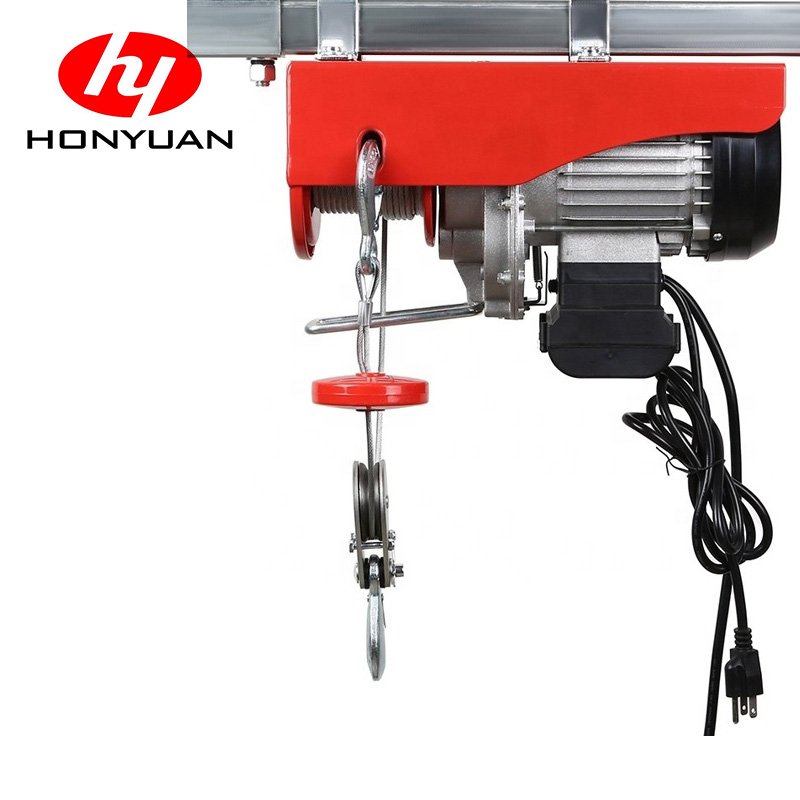

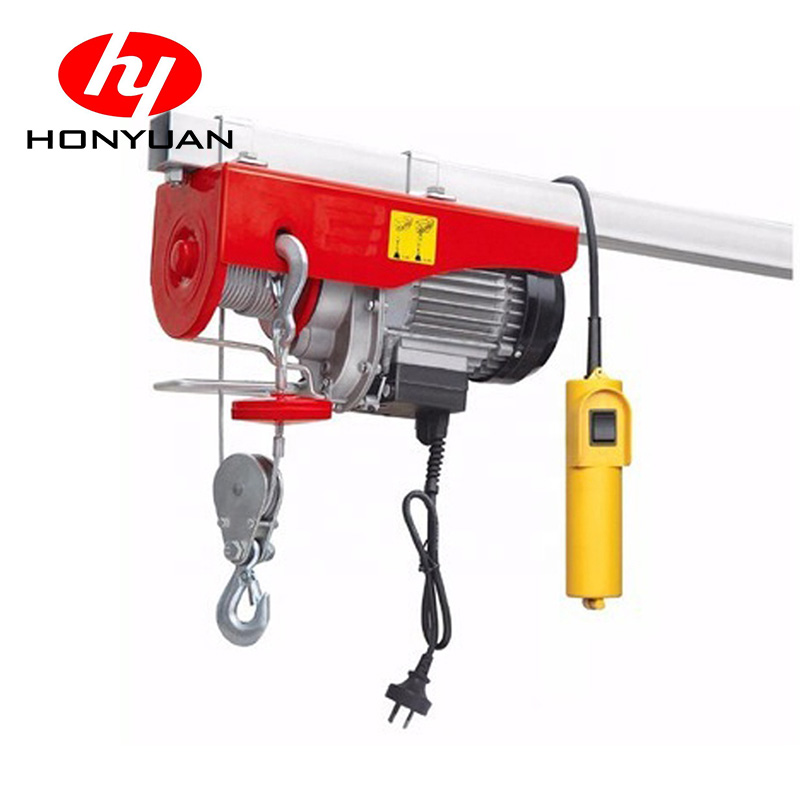

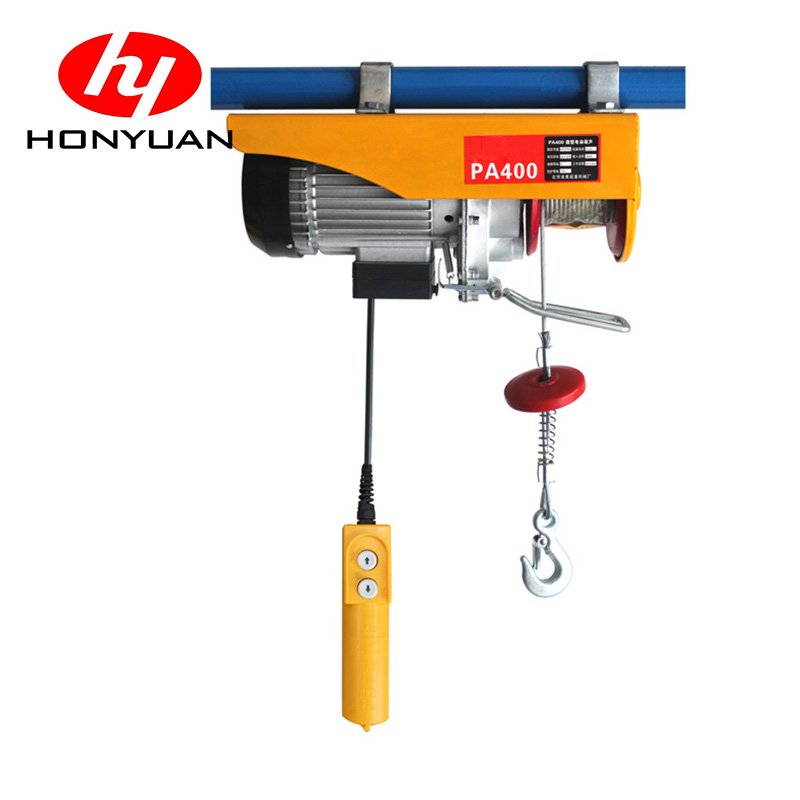

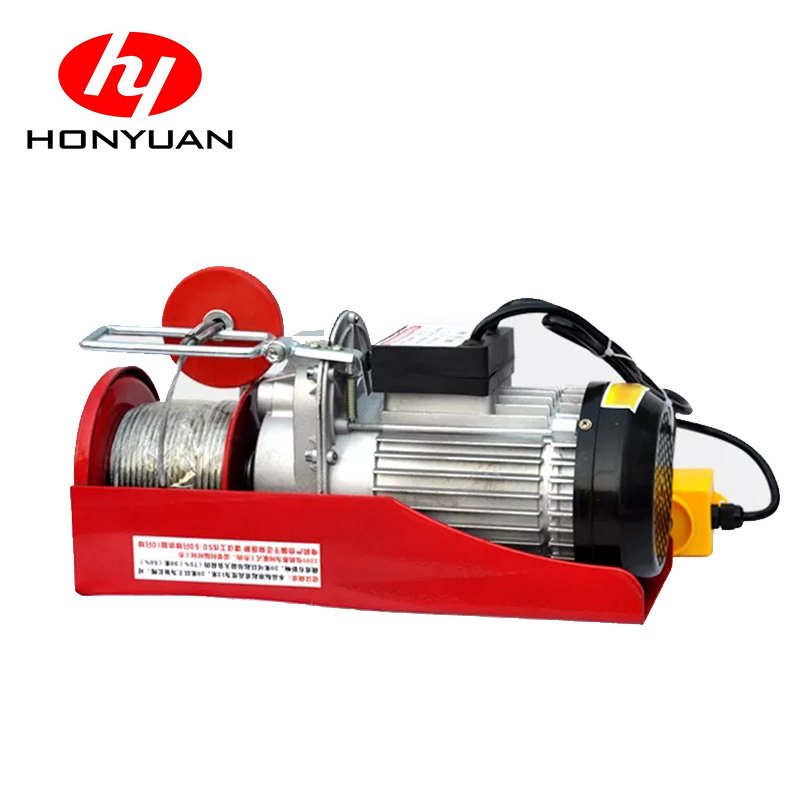

Low Cost 0.25 Ton Mini Electric Wire Hoist for DIY Projects
$66.00 10 set
Qingdao Shanghai
L/C T/T
New
PA
CE, ISO9001
Honyuan
General manufacturing
3 Ton 380 V Electric Chain Block with HookCharacteristics:
0.5~50 ton lifting capacity
With upper hook (fixed) or with trolley
Single/Double speed option
Shell: aluminum alloy
Chain: high quality G80
Chain container: canvas / iron
Gear & chain wheel: alloy steel + heat treatment
Hooks: heat forging+heat treatment
Chain diameter: 6.3~11.2mm (as per different capacities)
Motor rotate speed:1440r/min(single speed), 2880/960 r/min(double speed),
Standard chain length: 3m (can be customized)
Power specification:200~690V,50/60HZ,3 Phase
Safe voltage:24V/36V/48V
Button switch:2/4/6/8 buttons option
Insulation grade:F class
Protection class: IP55
Working group:M4
Working temperature: -40ºC ~ +40ºC
OEM acceptable
Customized logo acceptable
Package: plywood case
Warranty: 2 years for mechanical parts, 1 year for electric parts
Method fo use | Rated Volt | Input power | Rated Capacity | lifting speed | lifting height |
Single Hook Double Hook | AC 220/230V 50/60Hz | 480 | 100KG 200KG | 10 5 | 12 6 |
SingleHook Double Hook | 510 | 125KG 250KG | 10 5 | 12 6 | |
Single Hook Double Hook | 600 | 150KG 300KG | 10 5 | 12 6 | |
Single Hook Double Hook | 950 | 200KG 400KG | 10 5 | 12 6 | |
Single Hook Double Hook | 1020 | 250KG 500KG | 10 5 | 12 6 | |
Single Hook Double Hook | 1200 | 300KG 600KG | 8 4 | 12 6 | |
Single Hook Double Hook | 1300 | 400KG 800KG | 8 4 | 12 6 | |
Single Hook Double Hook | 1600 | 500KG 1000KG | 8 4 | 12 6 |
