30-150 Ton YFM Marine Deck Crane – Electric Suspended & Traveling Type

Double-girders Electric Overhead Crane
OEM & ODM
Certificate: ABS, BV, CCS, DNV, LR, NK, RS, ISO9001, CE
Slewing angle range: 0-400°

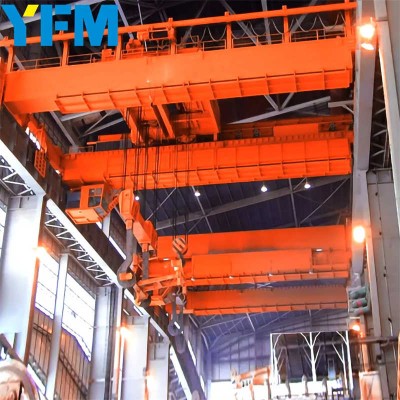

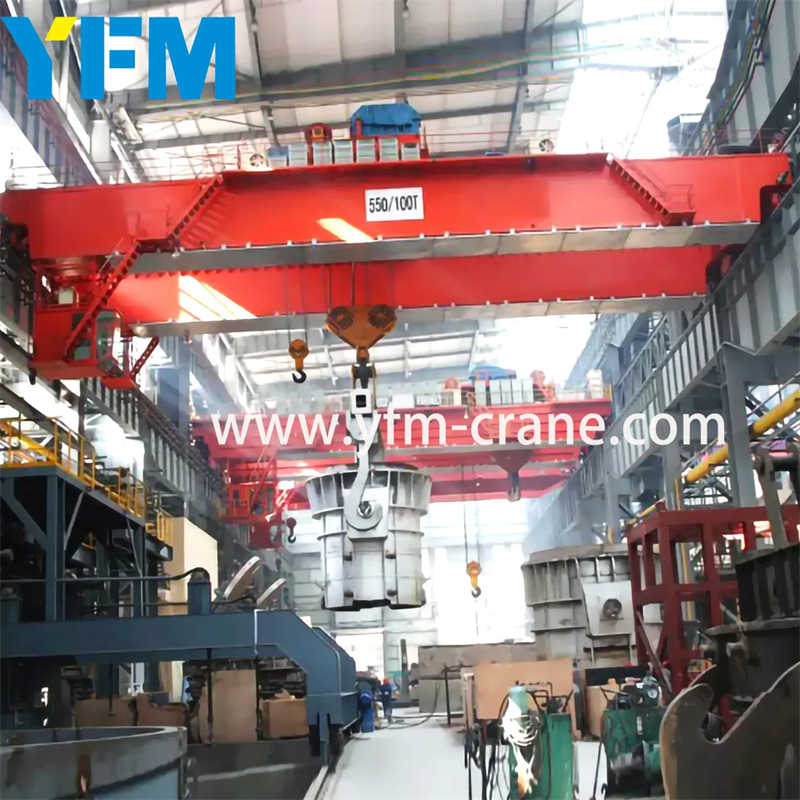

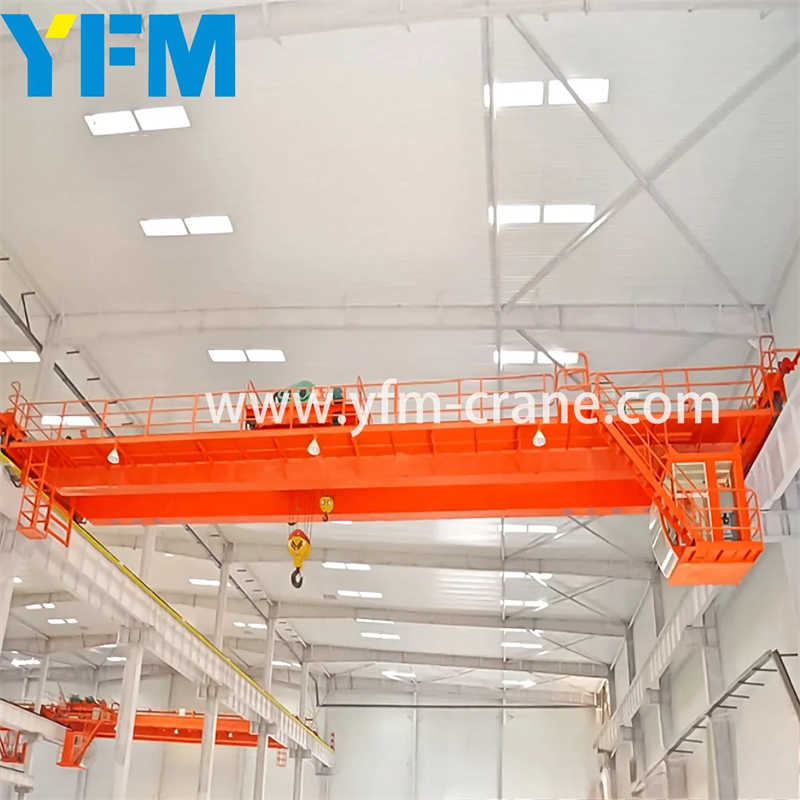

A double girder overhead traveling crane consists of two bridges, two end trolleys, and a hoist with a trolley.
The hoist travels along a track mounted on top of the bridges. It is widely used in factories, power stations, storerooms, warehouses and other locations for material transfer, installation and maintenance of goods and equipment.

Main beam

1. The main girder adopts off-rail box structure with optimised design and light deadweight.
2. Steel material: Q235B / Q345B.
3. The cover plate and web plate should be surface descaling by roller conveyor type shot blasting machine before welding; this shot blasting machine can carry out the processes of sand cleaning, sand blasting and drying.
4. Welding work of main girder shall be carried out on working platform (welding assembly unit). In order to avoid the deformation of the main girder, we adopt U-shape welding assembly unit to ensure that the vertical deviation between the top cover plate and the connecting edge of the main girder is not greater than H/200 and to effectively reduce the local wave of the web plate.

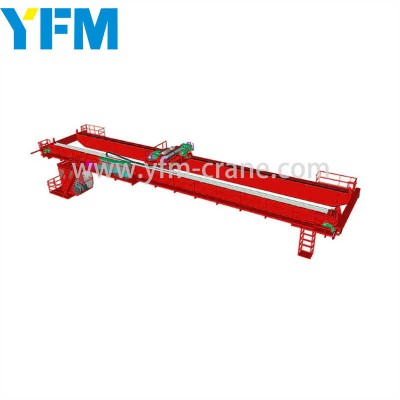

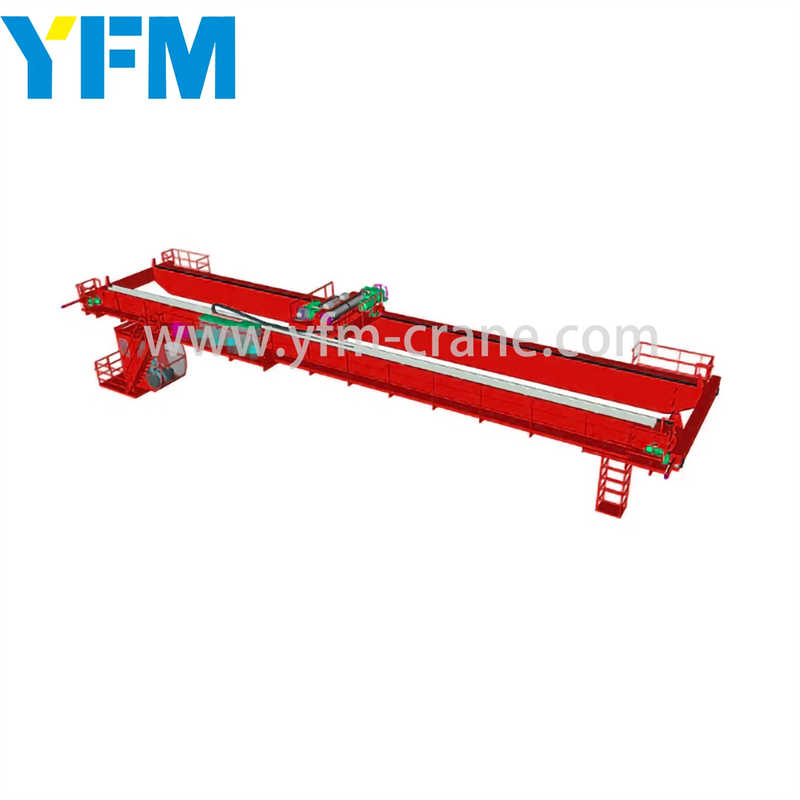

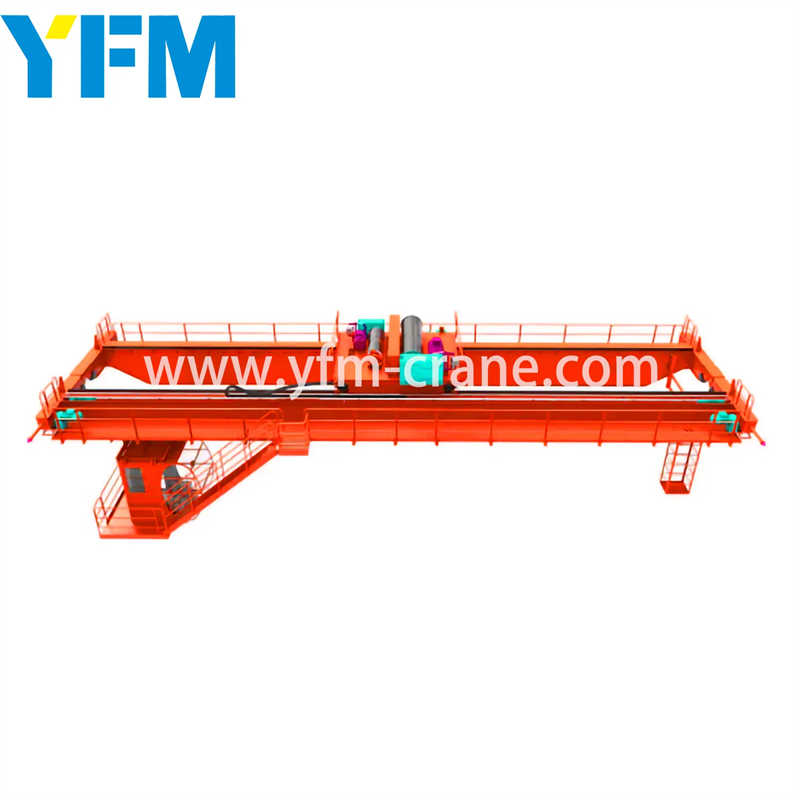

  Design Drawing

I'm sharing here a preliminary program designed according to customer requirements, drawings, and main technical parameters, for reference only. We can customize different cranes according to customer requirements and accept non-standard customisation.

Main Technical Parameters


important

It is important to know the intended application of your marine crane requirement. Below, you will find a general list of topics that we will discuss to manufacture a marine crane to your specifications accurately.

    * What are you planning to lift with your marine crane?
    * What is the expected maximum load?
    * What is the desired lifting height?
    * Are you interested in which kind of marine cranes? Single girder or double girder crane?
    * What is the span of the crane?
    * What kind of controls would you like?
    * What are your environmental conditions?
    * What classification does your marine crane require? ABS, Bureau Veritas, Lloyd's?

Certification

Cooperation

We start from meeting each other, visiting factories, discussing requirements, giving solutions, confirming orders, discussing details and completing deliveries. We became not only business partners but also friends in life, it was a pleasant and meaningful journey.

FAQ

1. Are you a manufacturer?
 Yes, our factory is staffed with skilled technicians on-site, complemented by our trading company.

2. Are your products customized?
 Yes, because of the different working conditions, all our products are customized depending on detail requirements! So if you give us more information about the lift capacity, span, lift height, power source, and other specials, we will give you a very quick quote!

3. What information should I provide when inquiring?
The more information you provide, the more accurate solution we can prepare for you! The information such as the lifting capacity, span, lifting height, power source, or other specials you give us will be more appreciated. It would be better if we had drawings.

4. What are the MOQ and payment terms?
Our MOQ is just one set, and we accept T/T and L/C at sight, with other terms open for negotiation.

5. How do you guarantee the quality?
Before shipment, we will do a series of inspections and tests, and have a detailed tracking report, you can also through the domestic testing company agent testing, or you personally send a delegation to track the testing process, it is ok.

6. How can we install the crane?
Our senior engineer can be on your side to provide the installation guide service and training.

7. Can you provide the serious lifting tools?

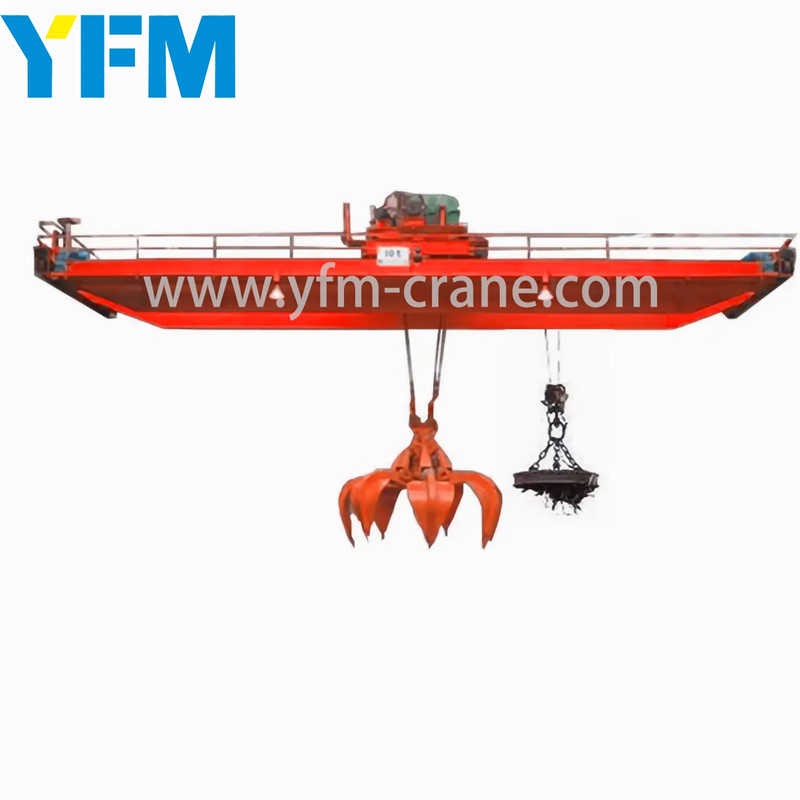

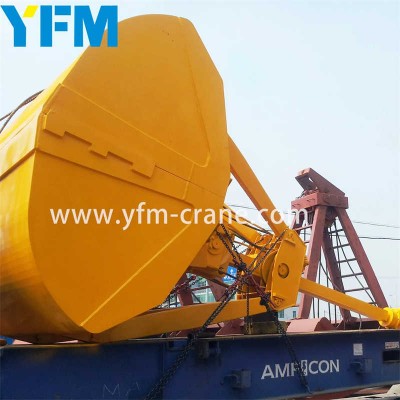

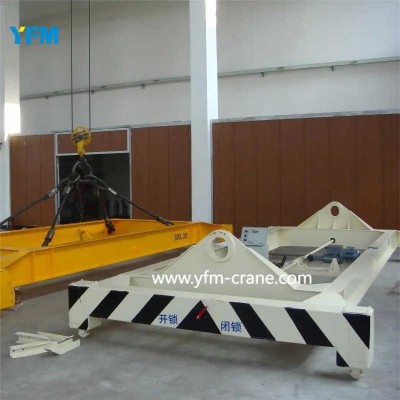

Sure, we can provide any lifting tools such as lifting sling belts, lifting clamps, grab buckets, Spreader beams, magnets, or other specials as your requirement!
