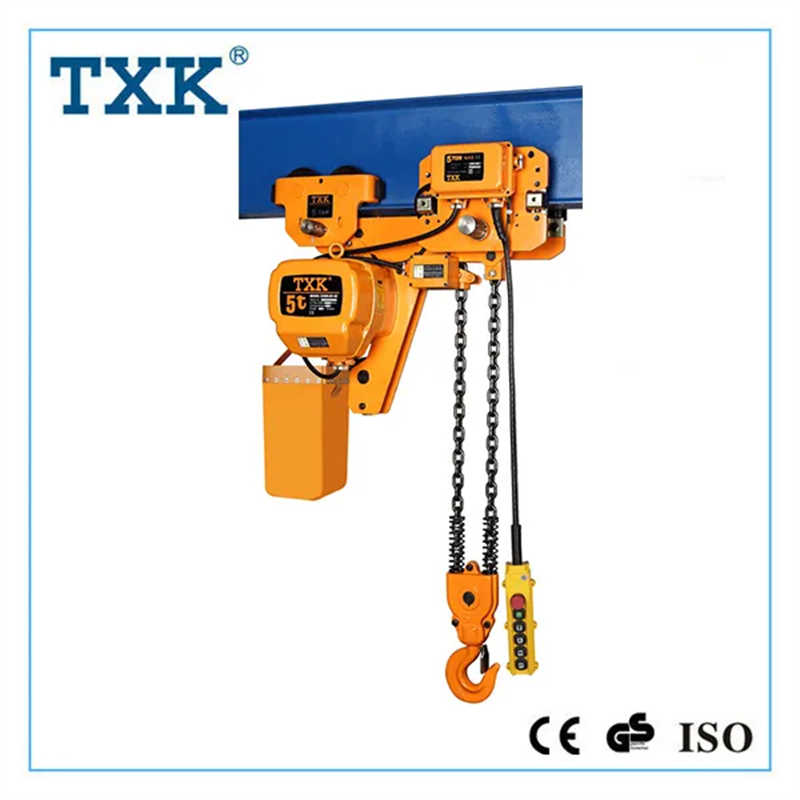

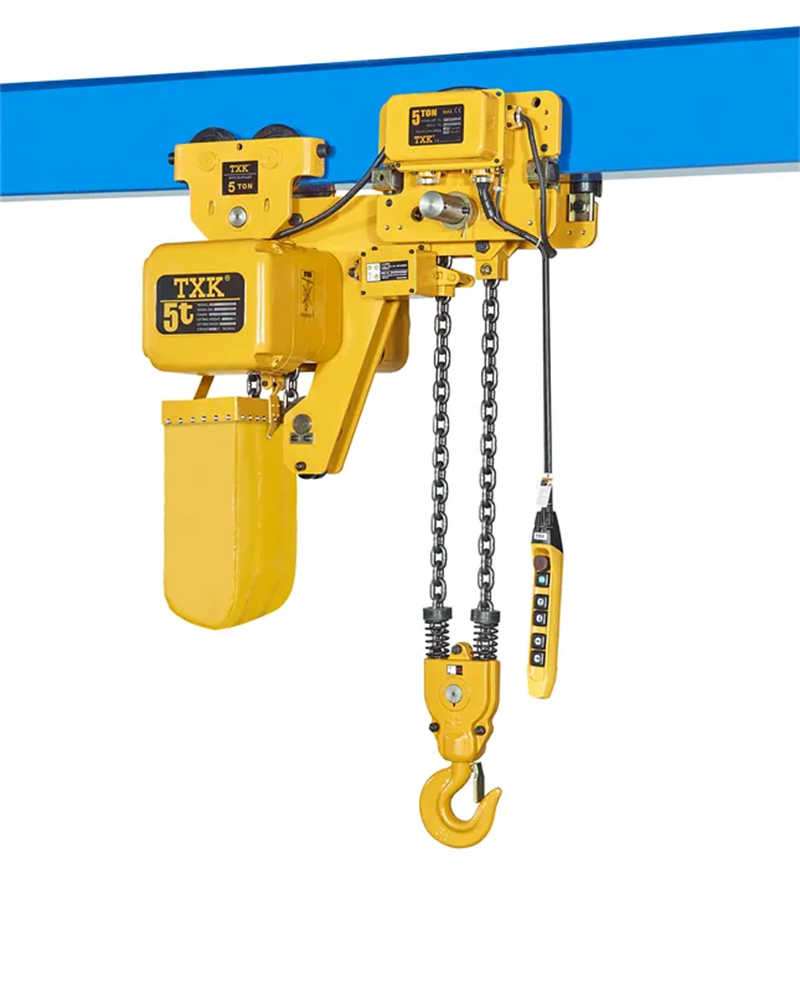

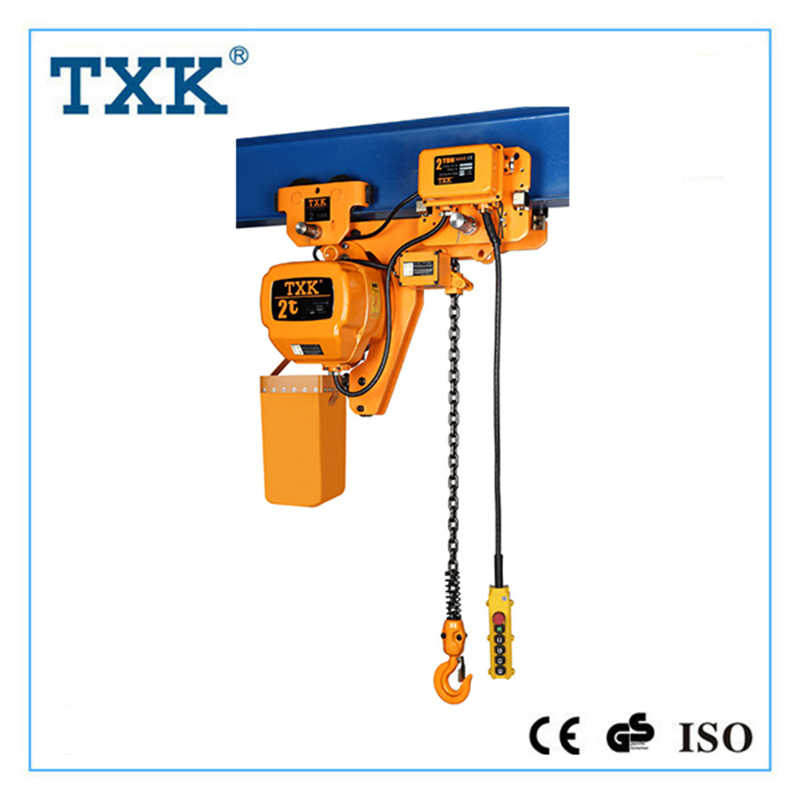

Txk Offer Electric Chain Hoist with Low Headroom
$1100.00 1 set
Qingdao Shanghai
L/C T/T
New
SSDHL
CE, ISO9001
TXK
General manufacturing
Product Description
1 ton Overload Limited Low Headroom Electric Chain Hoist with Trolley
Technical Parameters:
| Capacity | Model | Lifting Speed (m/min) | Lifting Motor Power (kw) | Chain Size (mm) | Insulation Grade | Power Input | Control Voltage |
| 500kg | SSDHL0.5-01S | 7.2 | 0.8 | 6.3 | F Class | 220V-690V | 24V/36V/48V |
| 1t | SSDHL01-01S SSDHL01-02S | 6.6 3.6 | 1.5 0.8 | 7.1 | |||
| 1.5t | SSDHL1.5-01S | 8.8 | 3.0 | 10.0 | |||
| 2t | SSDHL02-01S SSDHL02-02S | 6.6 3.3 | 3.0 1.5 | 10.0 7.1 | |||
| 2.5t | SSDHL2.5-01S | 5.4 | 3.0 | 11.2 | |||
| 3t | SSDHL03-01S SSDHL03-02S SSDHL03-03S | 5.4 4.4 2.2 | 3.0 3.0 1.5 | 11.2 10.0 7.1 | |||
| 5t | SSDHL05-02S | 2.7 | 3.0 | 11.2 |
1.Hoist cover's material:
High strength aluminium shell through compression casting formation.
Features: Solid and light, Fast heat dissipation, Continuous use, Enclosed structure.
Can be used in chemical plants, electroplating factories, and other places.
2.Side Magnetic Brake:
Brake works immediately after electric power is cut off.Thus ensuring the safety of the brake.
3. Gear:
The gear is made of alloy steel, with heat treatment.
4. Antiphase protector:
When power-supply wiring mistake, the control circuit is unable to move.
5. Hooks:
They are made by hot forging and heat treatment.
6. Chain:
It is made of FEC G80 ultra strong heat treatment alloy steel.
The Production Workshop:
Our company has a modern factory of 56,000 square meters,which is four hours' drive from Shanghai Airport and an hour's drive from Nanjing Airport.Chain block and electric chain hoist are distributed in different workshops.According to the classification of products,they are neatly placed in a wide work shop.The skilled workers are working meticulously.The test bench is used to check whether the product is qualified.
The Package:
The Practical Application:
They are widely used in double beam crane,gantry crane,bridge crane,single grinder crane ,lifting platform ,workshop,construction buliding,etc.
Quality Management:
7 reasons to trust TXK:
Longest history and longevity - TXK is one of the oldest established electric chain hoist manufacturers in China,with almost 20 years.
Largest factory and production capability - TXK factory is the biggest factory covering more than 56,000 square meters territory.
Widest products and servuce providing - TXK can provide widest products itema include electric & manual lifting equipments.
Richest experience in world business - TXK has more than 10 years experience on international trade business.
Fastest lead times - TXK factory is equipped with most efficient producing line which handled by skillful workers.
Fullest certifications - TXK factory and products are well certified by CE,GS,TUV,ISO,SGS,etc.
Highest reputation - TXK products are well sold in more than 50 countries.
