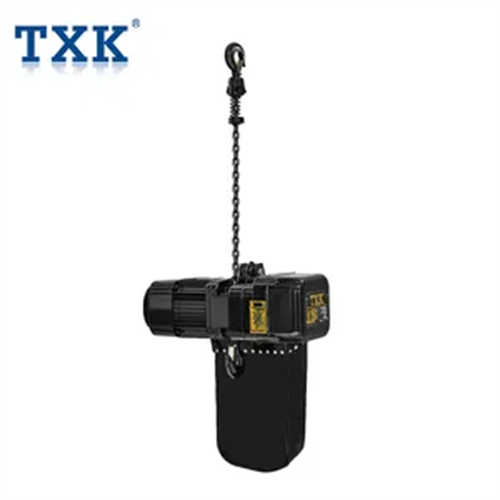

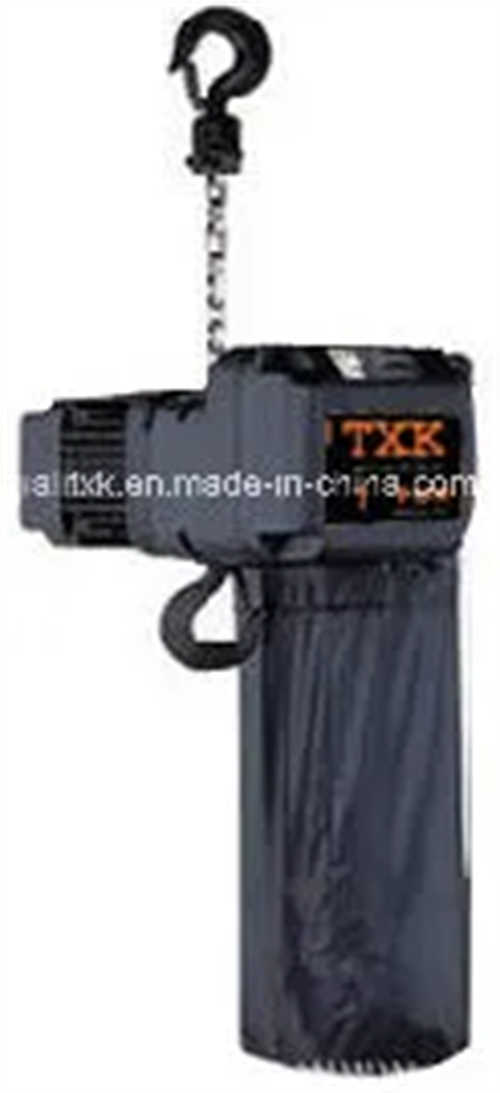

250kg-5ton Stage Hoist with Inverter
$526.00 1 set
Qingdao Shanghai
L/C T/T
New
SSDHL
CE, ISO9001
TXK
General manufacturing
Electric Chain Hoist Stage Hoist With Electric Trolley or Manual Trolley or hook suspension, Single speed
Model: SSDHL0.5-01S
Capacity(ton): 0.5
Lifting Speed(m/min): 7.2
Motor power (Kw): 0.8
Rotation speed (r/min): 1440
Insulation grade: F
Power supply: 3P 220V-690V
Control voltage: 24V / 36V / 48V
No. Of chain: 1
Spec. Of load chain: 6.3mm
Net weight: 47
Electric Chain Hoist drawing:
| Model | SSDHL | |||||||||
| 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | 03-03S | 05-02S | |
| Capacity(t) | 0.5t | 1t | 1.5t | 2t | 2.5t | 3t | 5t | |||
| Liftiing speed ( m/min) | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 |
| Motor power (Kw) | 0.8 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 1.5 | 3.0 |
| Rotation speed (r/min) | 1440 | |||||||||
| Insulation grade | F | |||||||||
| Power supply | 3P 220V~690V | |||||||||
| Control voltage | 24V / 36V /48V | |||||||||
| No. of chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec. of load chain | ¢6.3 | ¢7.1 | ¢10.0 | ¢10.0 | ¢7.1 | ¢11.2 | ¢11.2 | ¢10.0 | ¢7.1 | ¢11.2 |
| Net weight (Kg) | 47 | 61 | 108 | 115 | 73 | 115 | 122 | 131 | 85 | 151 |
