MG Series 5-50 Ton Double Girder Rail-Mounted Gantry Crane

35t MG Type Rail Mounted Double Girder Goliath Gantry Crane

Product Description

MG Type Twin Girder Goliath Gantry Crane is widely used in open warehouses, material stocks area, cement plant, granite industry, construction industry, engineering industry, railway station to lifting and loading unloading goods. It also can be used together with other lifting appliance for special purpose, for example, it could be used for container. It has features of beautiful appearance, perfect performance, low cost, easy maintenance, durability and so on.The lifting capacity is 5-100tons; Span is of 18-30meters.

Working condition:
1. Working temperature: -25-40 ° C
2. Working duty: A5- A6.
A) A5: Used in places of medium service, such as machine and assembly shops.

B) A6: Used in places of frequent working such as metallurgy and casting shops.

1. Power source: 380V 50Hz 3Phase. And we can design as your demands.
2. The altitude height of site is ought to be less than 2000M.
3. Flammable, explosive and corrosive gas is forbidden in the work environment.
4. The crane is forbidden to lift fuse and blend deleterious article and flammable explosive article.

Feature:
1) Reasonable structure
2) Favorable performance.
3) Smooth starting and stopping
4) Safe and reliable traveling.
5) Low noise, commodious cabin and good view.
6) Convenient maintenance, excellent exchangeability for parts and computers.
7) Saves electricity specifications.

Safety:
Overload protection.
Main lifting motor with thermal protection.
Hooks with latch.
Rubber buffers.
Protective earthing.
Crane switch and travel end switch.
Emergency switch can stop all movement when any dangerous happened.
Sub-assemblies characteristic are tested before assembly.
All cranes must be pre-assembled and tested before leaving factory and offer the certification of test.

Design and construction rules:
All the standards which is required for the crane is the Chinese standard.

Painting:
Primer and finishing paint
Color: According to your demands.
Average thickness: about 100 microns.

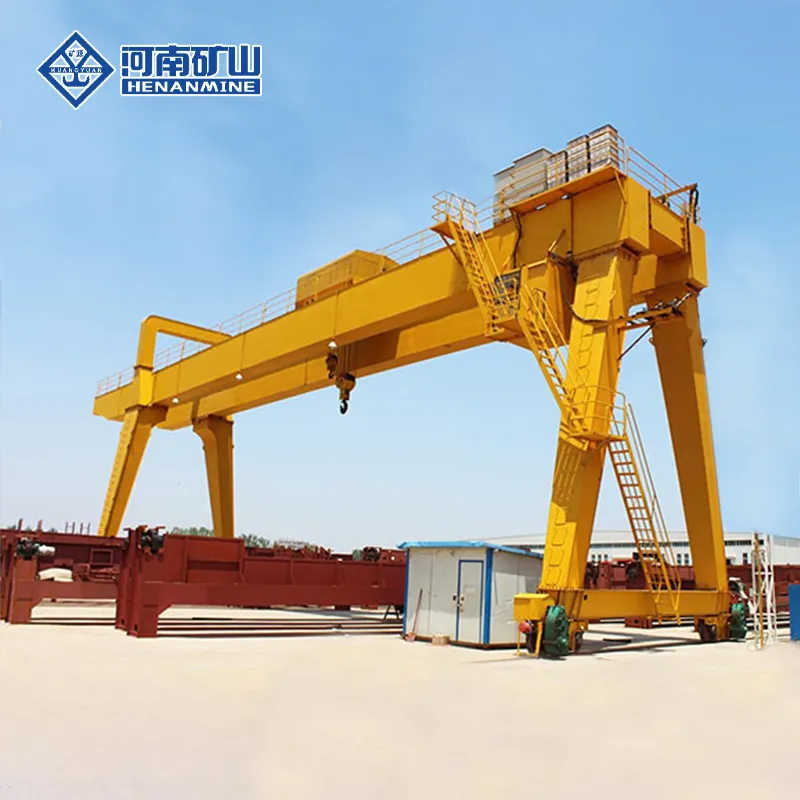

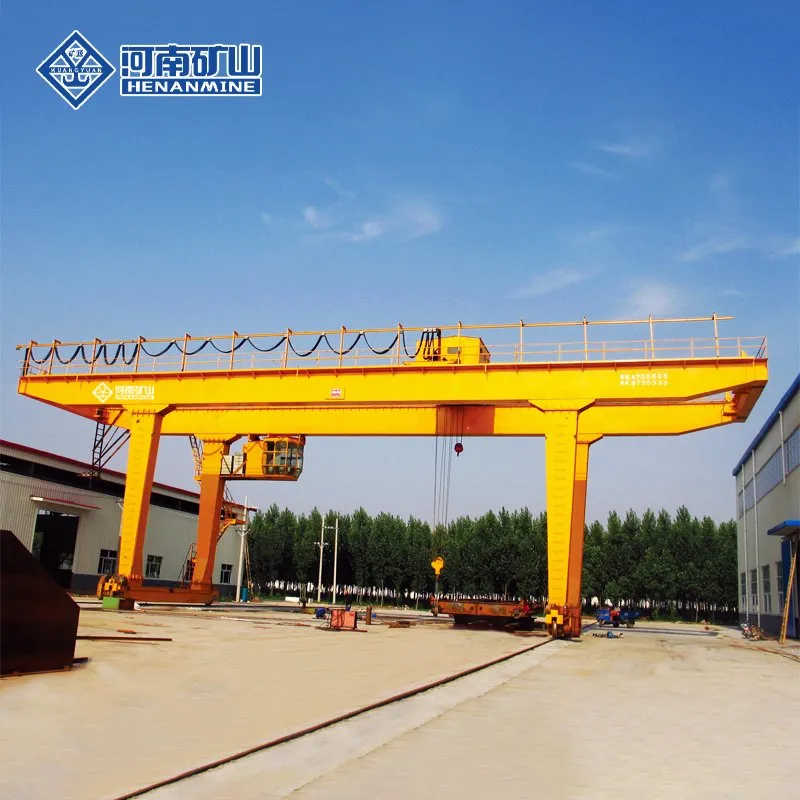

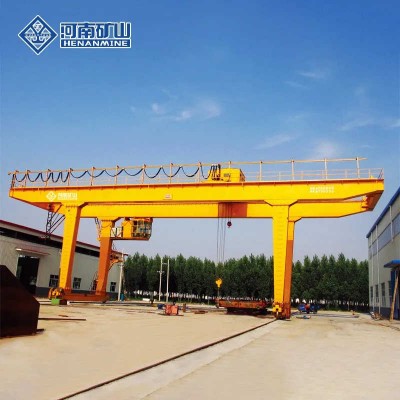

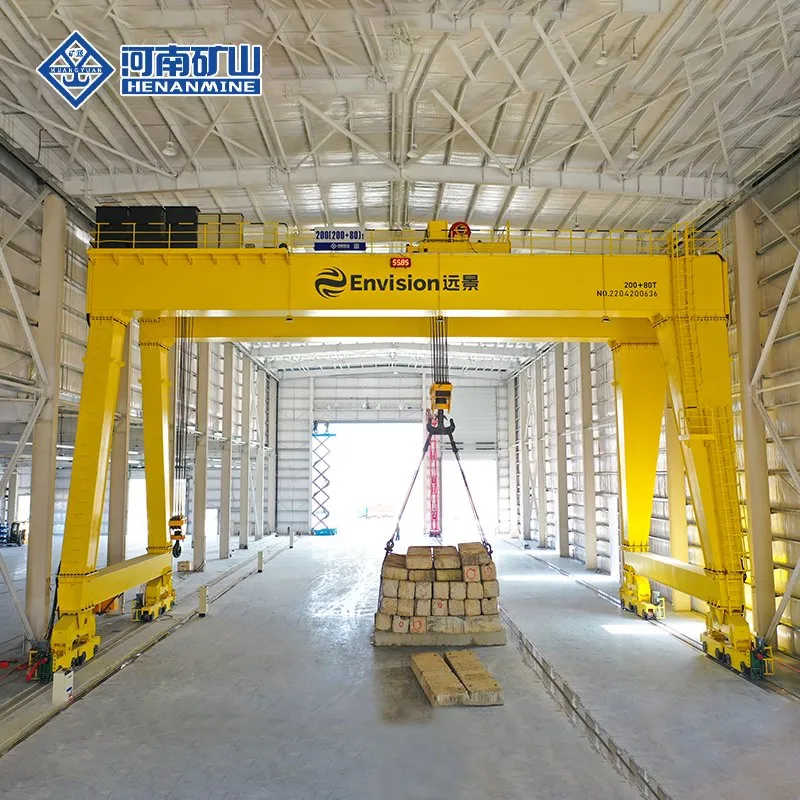

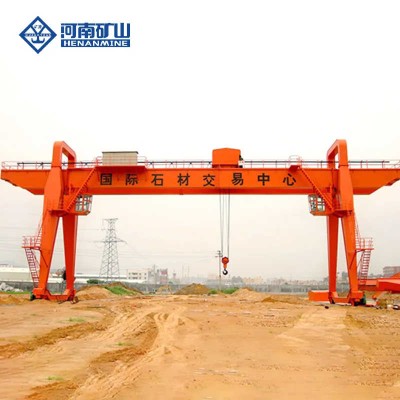

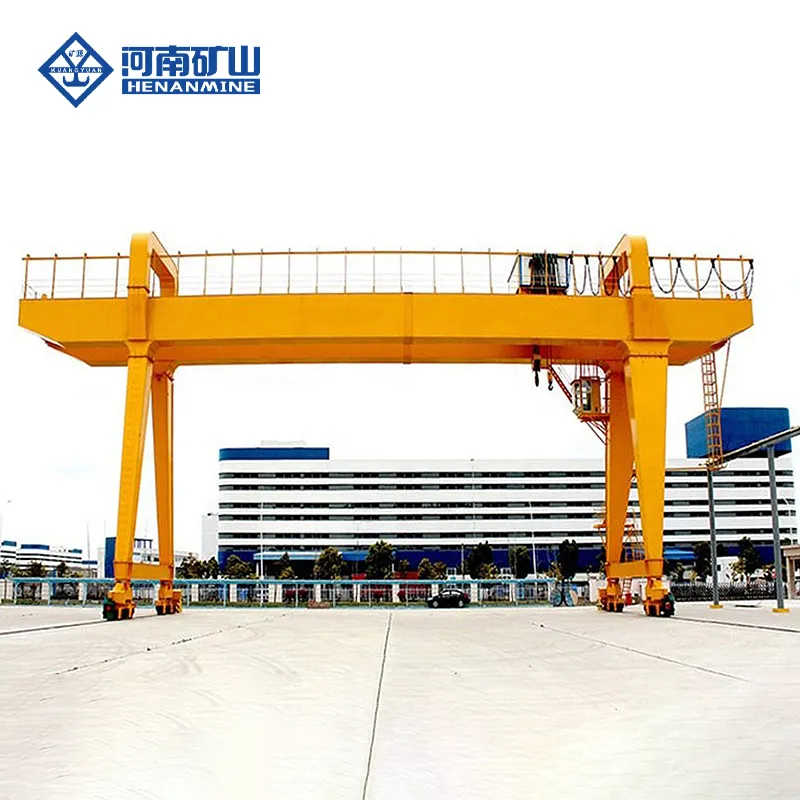

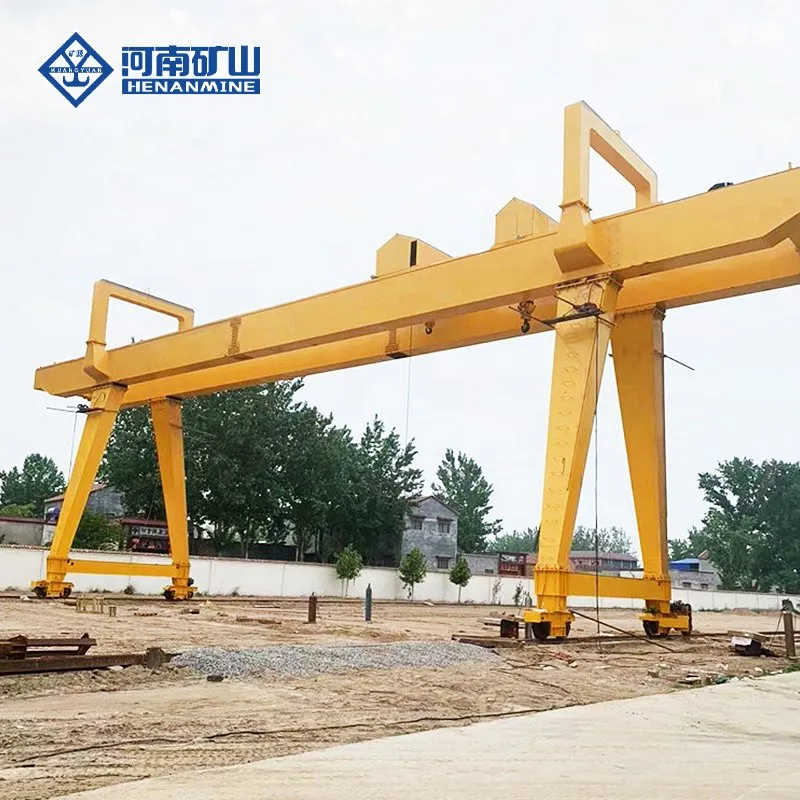

Detailed Photos

Product Parameters

Packaging & Shipping
