Modular AGV Transport Solutions: Custom-Built for 3T, 5T, and 8T Payloads
$10000.00 1 set
Qingdao Shanghai
L/C T/T
New
QFKPX101
CE, ISO9001
Sanfeng Xiaosong
General manufacturing
| Technial parameters | ||||||||||||||
| Parameter | KPX | |||||||||||||
| 2t | 5t | 10t | 16t | 20t | 25t | 30t | 40t | 50t | 63t | 80t | 100t | 150t | ||
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail inner guage(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel diameter(mm) | θ270 | θ300 | θ300 | θ350 | θ350 | θ400 | θ400 | θ500 | θ500 | θ600 | θ600 | θ600 | θ600 | |
| Wheel quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor power(Kw) | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery capacity(Ah) | 180 | 180 | 160 | 180 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery coltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Full load continuous running time | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running distance for one charge(Km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference weight(t) | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
| Recommended rail model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |

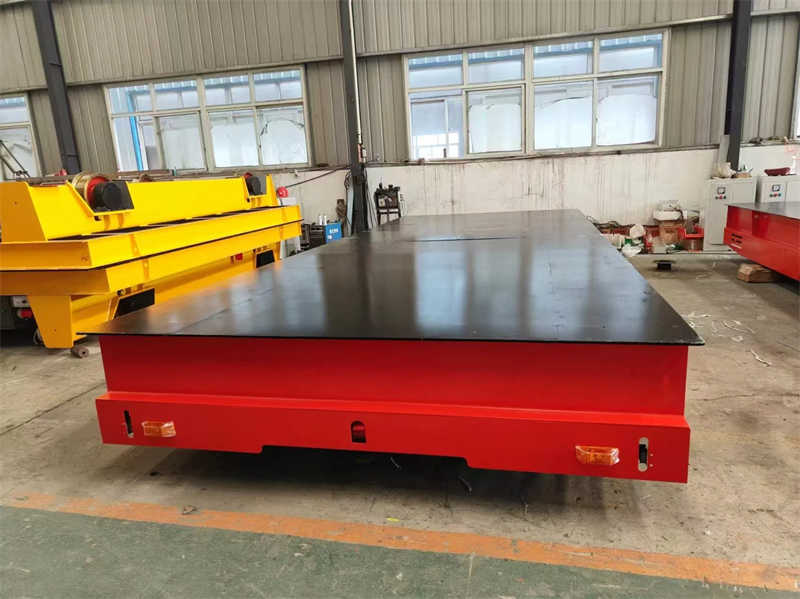

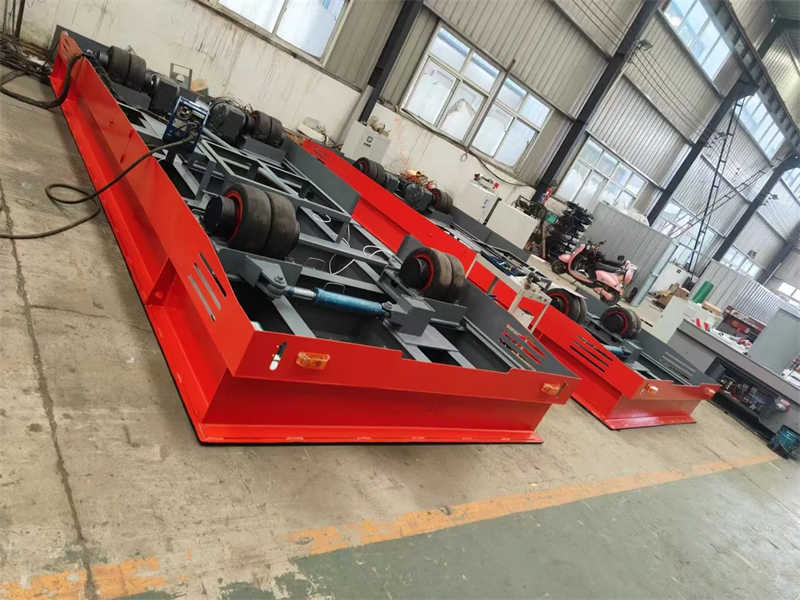

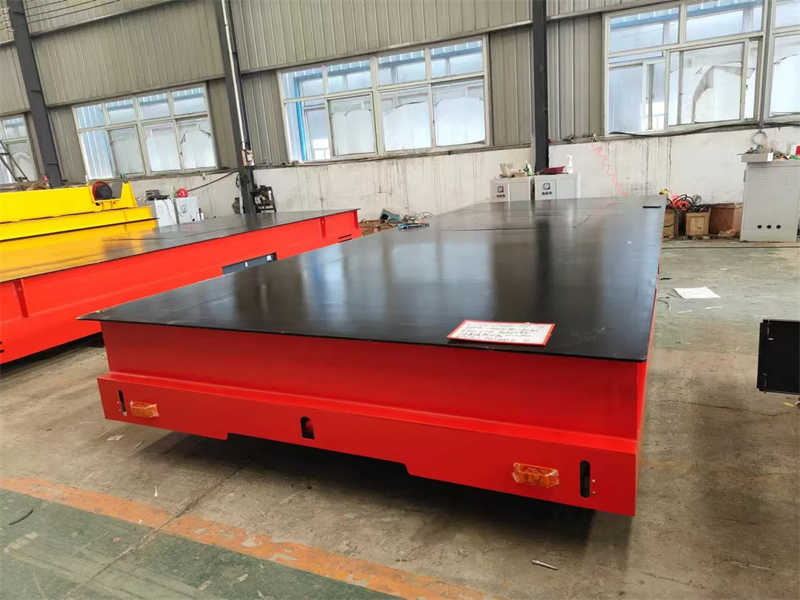

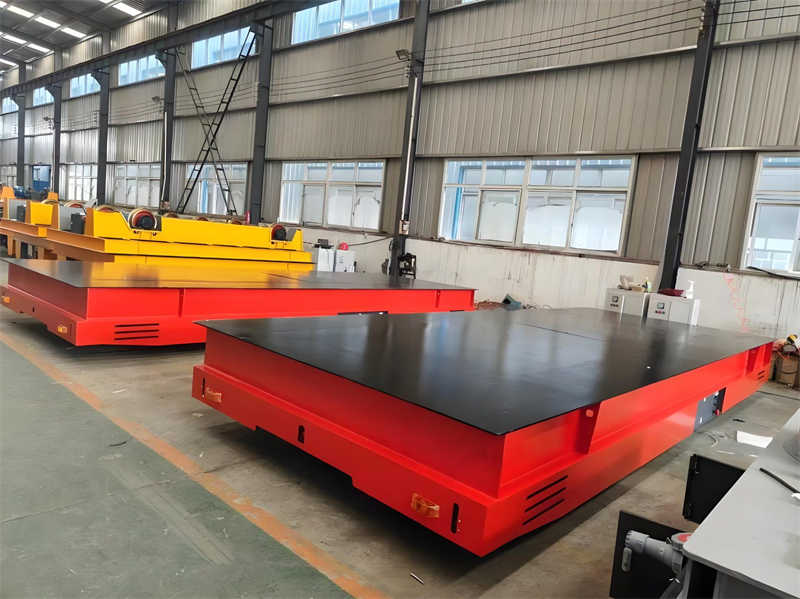

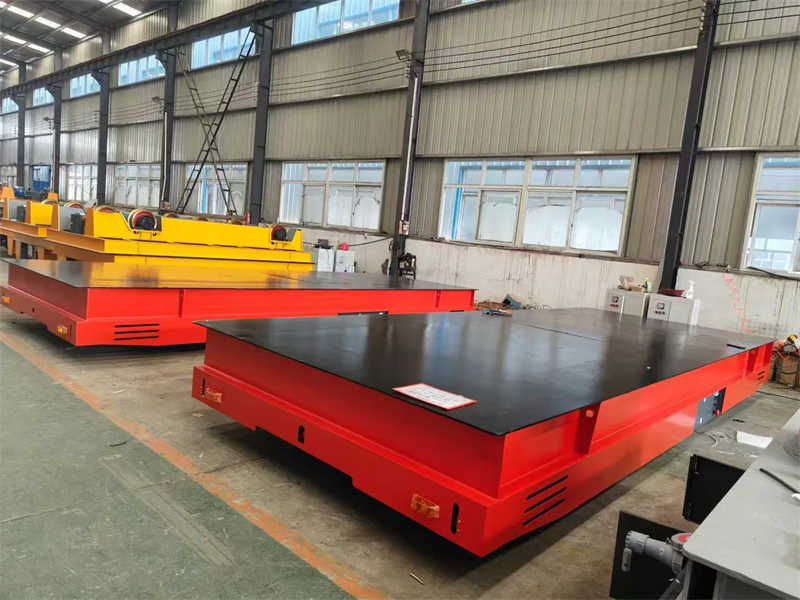

Detailed Photos
The battery powered transfer cart is a good choice if meeting the following features:
1.The running distance is not limited for the battery powered transfer car
2.Low using frequency(The spare battery can be provided if higher using frequency)
3.Despite of turning or going straight, the transfer car can realize
4.Despite of running on indoor or outdoor, high temperarture or explosive environment, ferry or cross rail, the transfer cart can realize.
5.Dimensions,capacity, loading platform superstructure, speed and many others special funcition can be customized as per client request.
Product Description
Packaging & Shipping
Customer usage scenarios
Company Profile
FAQ
1. Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
2. Q: How do you make our business long-term and good relationship?A:We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
3. Q: Is custom size available?
A: Yes, we do custom products and projects.
4. Q: I would like to have my own design products and qty is not that big, is it ok?
A: Yes, we can go with your custom design, no matter small or big qty, however, pls Understand the cost will be different.
5. Q: I don't have drawing or picture available for the custom products, could you design it for me?
A:Yes, we can make the best suitable design for you but do need to know the details,
such as a) dimension b)Loading capacity c)Loading cargo type d)operation environment
