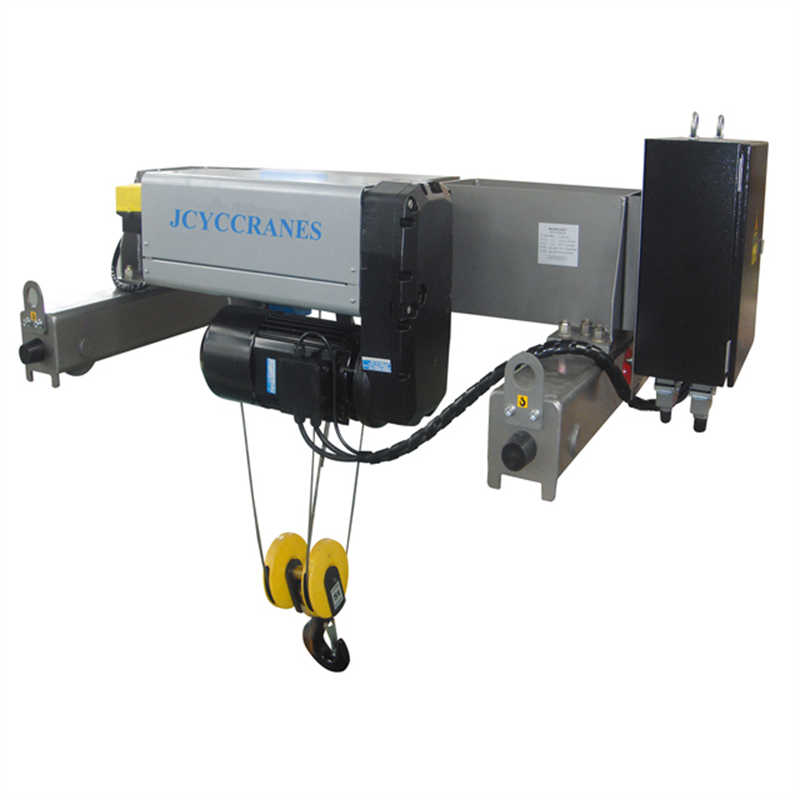

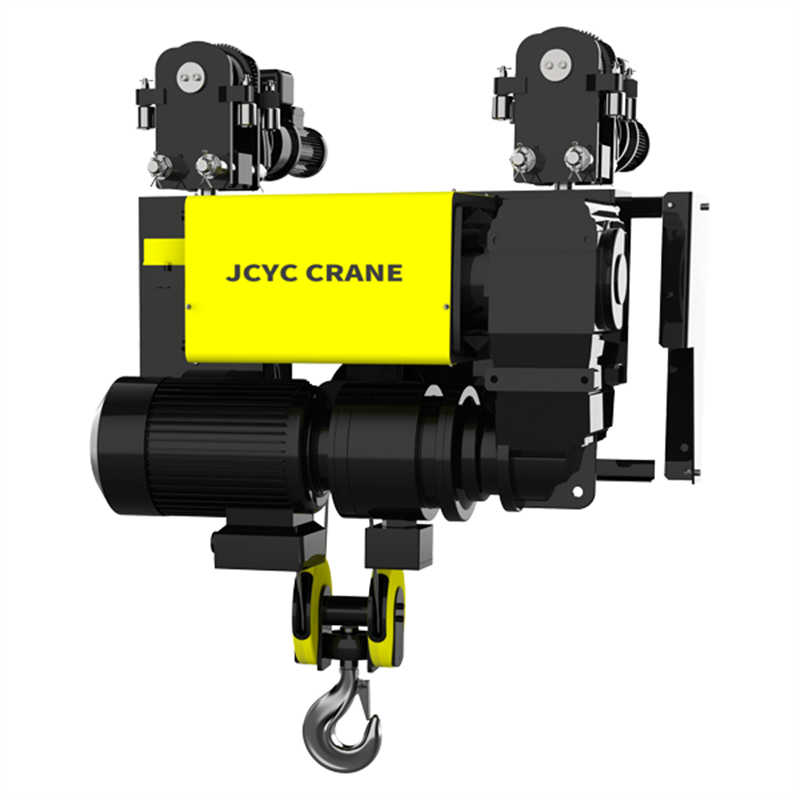

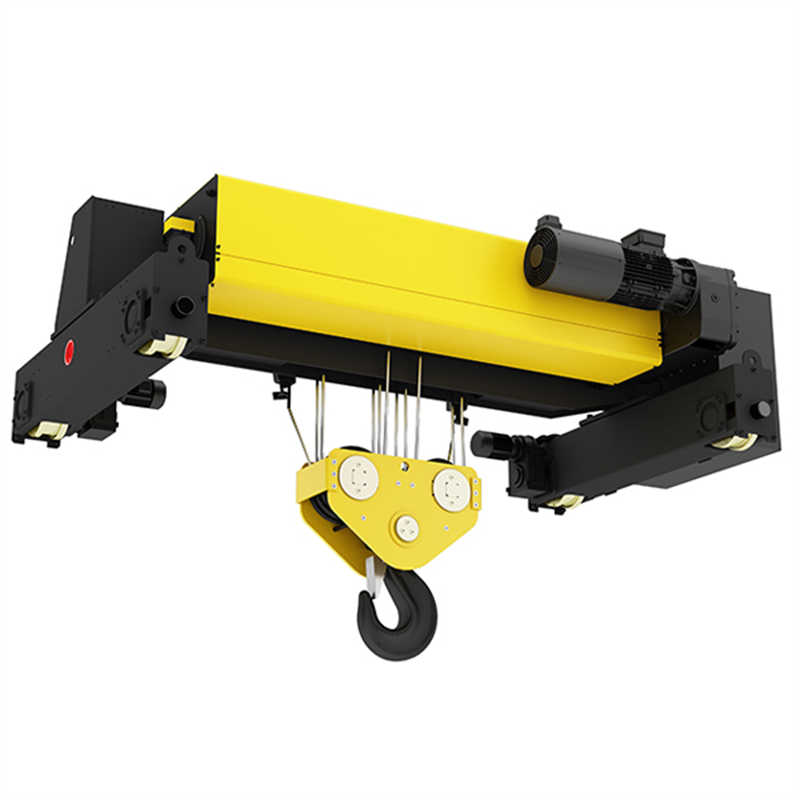

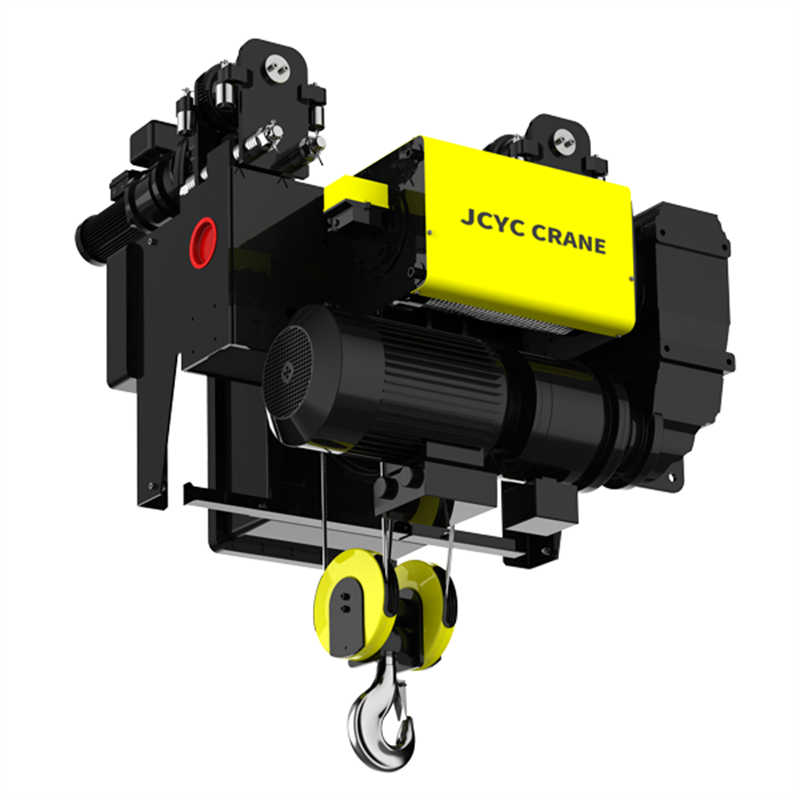

IP55 Rated Waterproof Electric Hoist - Outdoor & Corrosive Environment Use
$860.00 1 set
Qingdao Shanghai
L/C T/T
New
SHSL-B
CE, ISO9001
JCYC/OEM
General manufacturing,Metal production industry,Renewable energy industry
Product Description
Relying on advanced technology and rich industry experience, based on the needs of customers and based on the concept of modular design, JCYC has developed a number of patented wire rope electric hoists. It adopts the trendy C-type design, compact structure, stable operation, accurate positioning, and many new technologies such as variable frequency control, braking energy feedback and safety monitoring system, etc., making JCYC wire rope electric hoist always in the forefront of the industry. This electric wire rope hoist can provide you with a logistics solution to ensure the reliability and safety of equipment operation.
Detailed Photos
Ligting motor:
1. Low energy consumption, low noise and environmentally friendly design
2. Non-wear design, long service life
3.The continuous power supply rate reaches 60%, which meets the needs of high-frequency lifting
4. The brake does not contain asbestos, and the service life can reach 1 million times.
5. The brake has a high protection level and meets the requirements of harsh environments.
Trolley motor:
1.Three-in-one high-performance motor, reducer and brake.
2.Variable frequency control, stable operation, low impact force, meet various speed requirements.
3. The brake disc does not contain asbestos, and the normal service life can reach 1 million times.
4. Wear-free design, maintenance-free and long service life.
Electric control box:
1. Reasonable design, convenient maintenance and reduced running cost Professional quality electrical components, safe and reliable.
2.Various safety protection devices to ensure equipment safety Protection class IP55.
3. Clear identification for easy trouble shooting.
Reel:
1. The seamless steel pipe made of Q345 is used as the raw material. After layer-by-layer processing, advanced processing methods ensure the concentricity of the roll.
2. Rope groove depth meets FEM standards. High-strength pressure plate bolts tighten the end of the wire rope to ensure lifting safety.
Lifting height limiter:
1. Freely adjustable screw-type lifting height limiter with high accuracy, wide adjustment range, safe and reliable.
2.Multi-contact configuration can effectively realize fast and slow switching and stopping function when rising and falling.
Direction for use
European wire rope electric hoists is a kind of new products developed with advanced design technology according to the latest
national standard GB/T3811 "Design specifications for cranes", and refers to European FEM standard. The whole set of electric hoist is a new energy-saving and environment--friendly product whose technology is internationally advanced and cost performance is in the top among the same products.
Product Parameters
| Load capacity(kg) | FEM | ISO | Height(m) | Speed(m/min) | Trolley speed(m/min) | H size(mm) | C sizer(mm) |
| 2000 | 3m | 6M | 6/9/12 | 0.8/5.0 | 5-20 | 471 | 390 |
| 3200 | 2m | 5M | 6/9/12 | 0.8/5.0 | 5-20 | 471 | 390 |
| 5000 | 2m | 5M | 6/9/12/18 | 0.8/5.0 | 5-20 | 471 | 450 |
| 6300 | 1Am | 4M | 6/9/12/18 | 0.8/5.0 | 5-20 | 471 | 450 |
| 8000 | 3m | 6M | 6/9/12/18 | 0.8/5.0 | 5-20 | 542 | 650 |
| 10000 | 2m | 5M | 6/9/12/18 | 0.8/5.0 | 5-20 | 542 | 650 |
| 10000 | 3m | 6M | 6/9/12/18 | 0.6/4.0 | 5-20 | 679 | 700 |
| 12500 | 1Am | 4M | 6/9/12/18 | 0.8/5.0 | 5-20 | 542 | 650 |
| 12500 | 2m | 5M | 6/9/12/18 | 0.6/4.0 | 5-20 | 679 | 700 |
| 16000 | 2m | 5M | 6/9/12/18 | 0.6/4.0 | 5-20 | 679 | 700 |
| 20000 | 1Am | 4M | 6/9/12/18 | 0.66/4.0 | 5-20 | 679 | 700 |
| 20000 | 2m | 5M | 6/9/12/18 | 0.53/3.4 | 5-20 | 850 | 700 |
| 25000 | 1Am | 4M | 6/9/12/18 | 0.53/3.4 | 5-20 | 850 | 1200 |
| 25000 | 2m | 5M | 6/9/12/18 | 0.8/3.3 | 5-20 | 864 | 1000 |
| 32000 | 2m | 5M | 6/9/12/18 | 0.8/3.3 | 5-20 | 864 | 1000 |
| 32000 | 2m | 5M | 6/9/12/18 | 0-4.9 | 5-20 | 1025 | 950 |
| 40000 | 1Am | 4M | 6/9/12/18 | 0-4.9 | 5-20 | 1025 | 950 |
| 50000 | 2m | 5M | 6/9/12/18 | 0-3.2 | 5-20 | 1023 | 1150 |
| 63000 | 1Am | 4M | 6/9/12/18 | 0-3.2 | 5-20 | 1023 | 1150 |
| 80000 | 1Bm | 3M | 6/9/12 | 0-2.4 | 5-20 | 1080 | 1500 |
