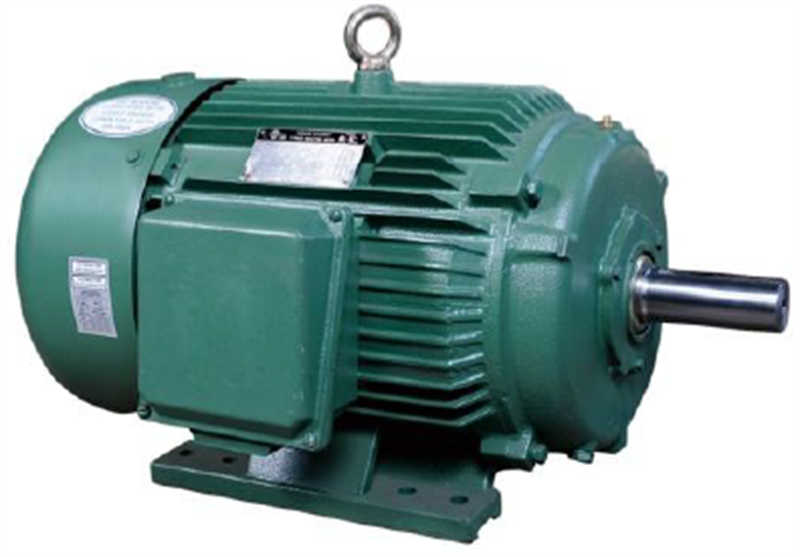

ODP (IP23) IE3 Motor IE3-ODP SERIES THREE PHASE ELECTRIC MOTORS

GENERAL INTRODUCTION

IE3-ODP series electric motors (center height H 160-355 mm, 15kw - 710kw) are designed for Directive 2005/32/EC of the European Parliament and of the Council of 6 July 2005 And meets energy- using products and amending Council Directive 92/42/EEC and Directives 96/57/EC and 2000/55/EC of the European Parliament and of the Council, Commission regulation (EC) No 640/2009 of 22 July 2009.

Standard Features:

1. Three Phase, Europe/Australia Voltage:  400/690V, 415V/720, 450V, 550V，50/60HZ,   IP55,  Class F, ODP ;

2.   Cast Iron frames 160-355

3.   Squirrel Cage Rotor/Aluminum Die Cast

4.   IE3, IE4 IEC60034-30, MEPS – E3 (Australia & New Zealand) Design

5.   Class "F" Insulation

6.   Continuous Duty-S1

7.   Ambient Temp. 40℃

8.   Altitude: 1000M

9.   Dimensions According To IEC-72

10.  Performance According To IEC-34

11.  Metric Thread Cable Entries In Terminal Box

12.  Cooling Method: IC01
