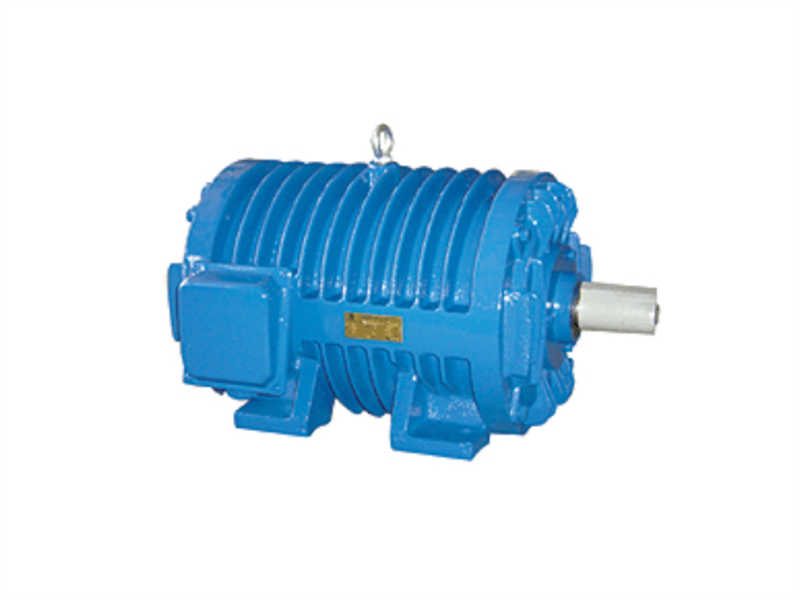

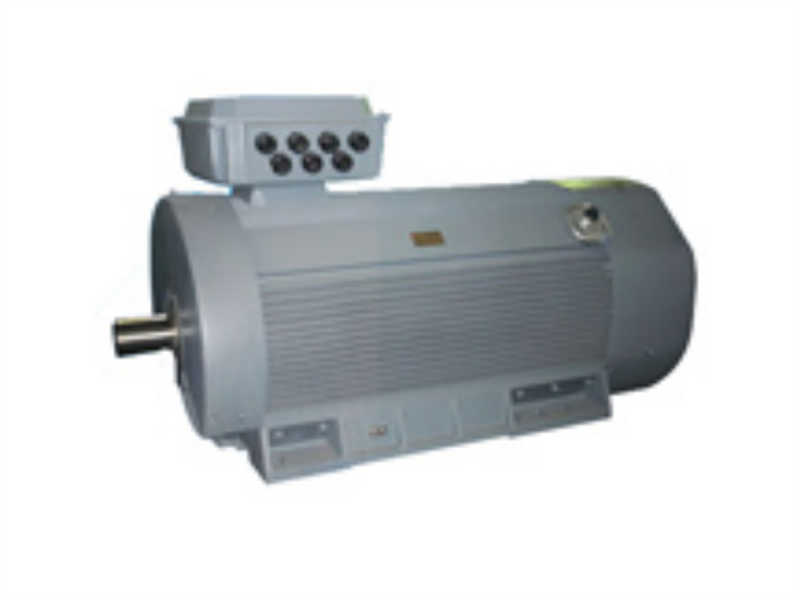

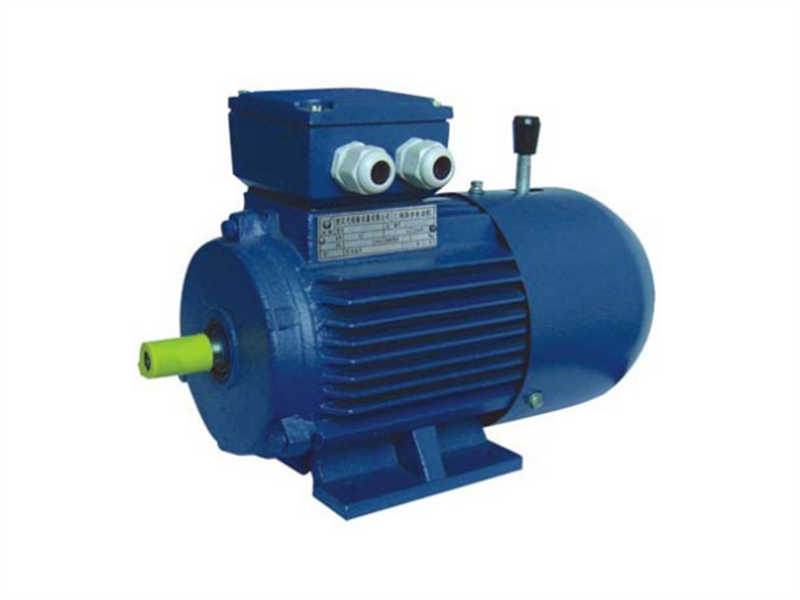

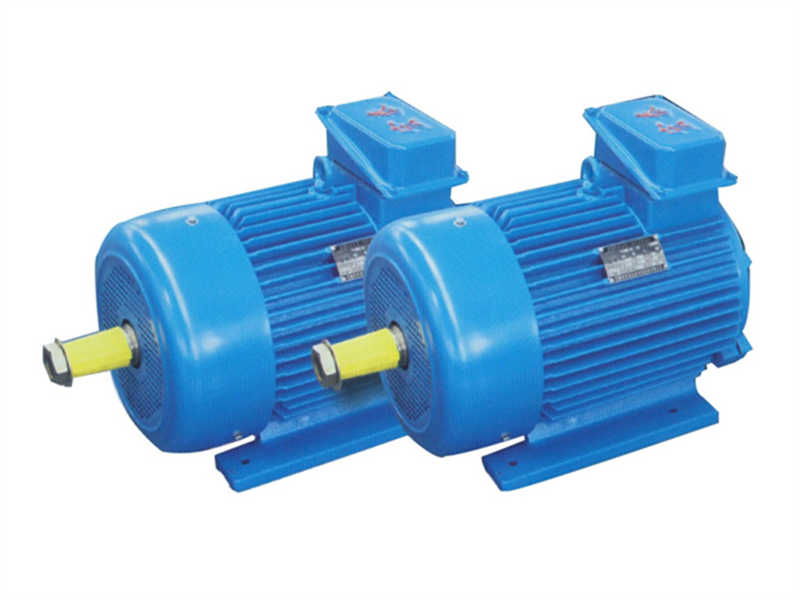

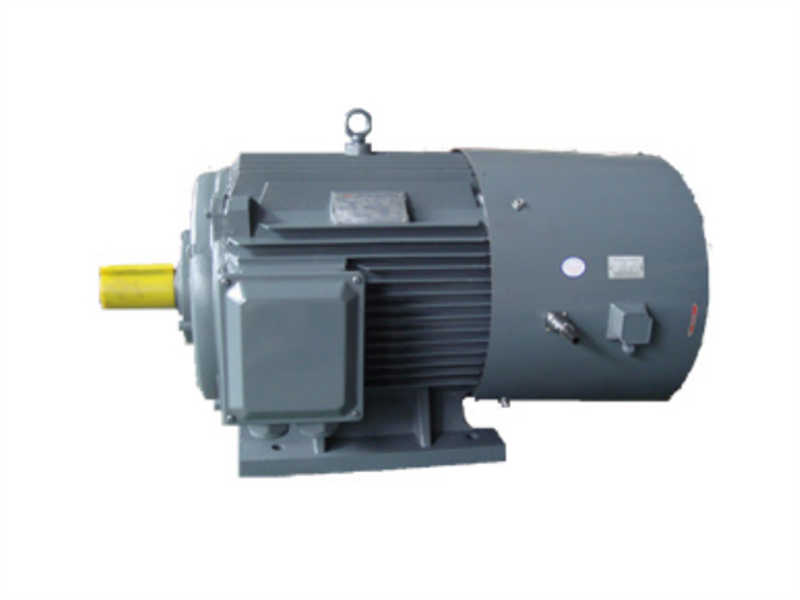

YZP Motor With Inverter YZP Series Metallurgy & Hoisting Inverter Motor

It is Suitable For Inverter Application: Rated Voltage: 380V，Rated Frequency: 50Hz, Insulation Class F, Protection Class: IP54, IP55。 Frequency Range: 3—100Hz；3—50Hz Working On Constant Torque; 50—100Hz Working On Constant Power, Altitude: Not Above:1000m，Relative Humidity: Not Above 90%。 Cooling Method: 112—132 Is IC411，160—335 is（IC416）. Y connection is for 180 and below, ∆ connection is for 200 and above. Motor can work on 2 times rated torque for 1 min @ rated voltage and rated frequency.
