Precision Control Electric Wire Rope Hoist for Efficient Heavy Lifting
$800.00 1 set
Qingdao Shanghai
L/C T/T
New
TP-KLTS
CE, ISO9001
TOPLIFT
General manufacturing

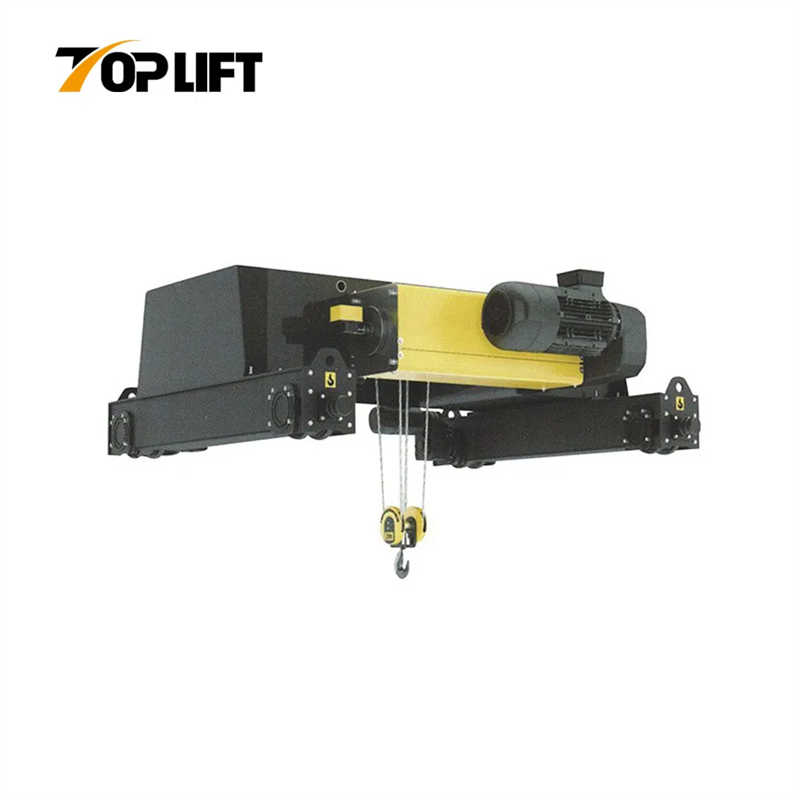

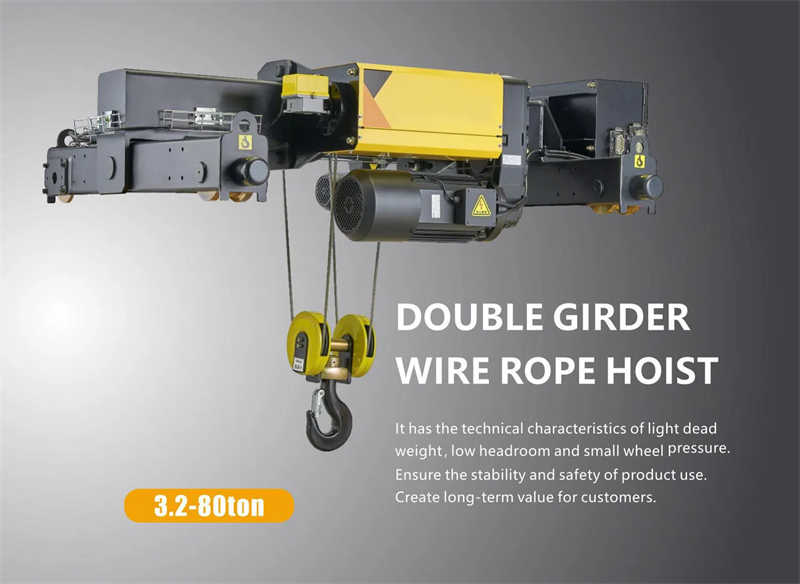

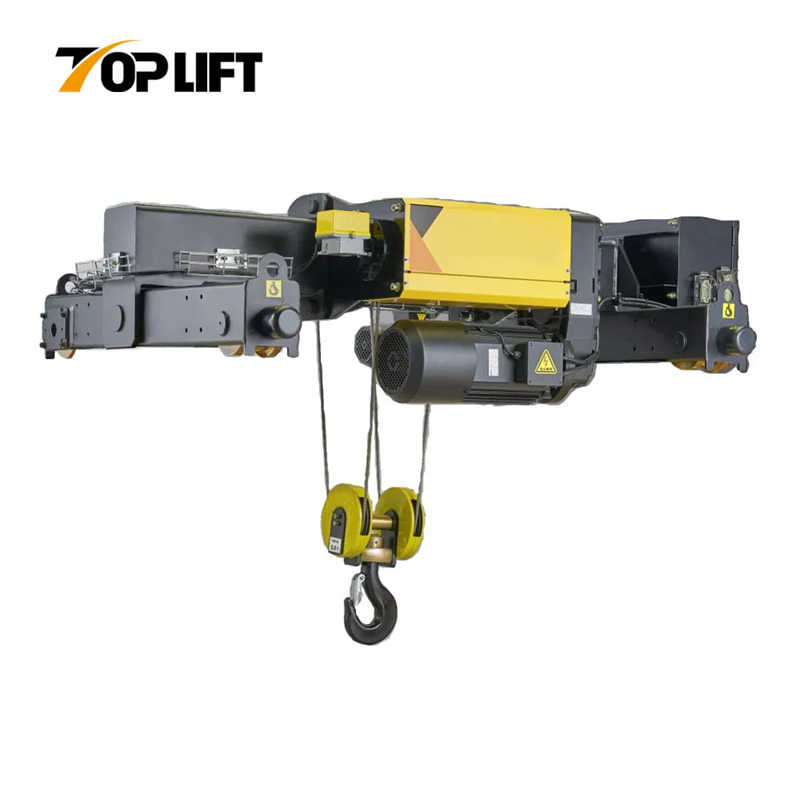

Heavy Duty Double Grider Electric Wire Rope Hoist & Trolley Hoist Block
PRODUCT CONFIGURATION:
TROLLEY WITH FREQUENCY ConVERSION MOTOR
DOUBLESPEED/FREQUENCY ConVERSION MOTOR
PROTECTION GRADEIP54 INSULATION GRADE F
ELECTROMAGNETICDISC BRAKE,MAINTENANCE-FREE
CONTROLVOLTAGE24V/36V/48V/110V
220-460V/3Ph/50Hz(60Hz)
E LIFTING LIMIT SWITCH
HOOK WITH SAFETY LATCH
OVERLOAD LIMITER
AMBIENT TEMPERATURE:-20°C~+40°C
MOTOR OVEAR TEMPERATURE PROTECTION
Product Advantages:
Module combination ,Compact Structure
Precise Positioning,Fast Handling
Quiet Operation,Energy Saving
Classic and Durable,Safe and Reliable
Product Parameters
| Type | Capacity(t) | Lifting height (m) | Work level FEM/ISO | Lifting speed m/min | Lifting power (kW) | Travelling speed m/min | Travelling power(kW) | Size H (mm) | Size C (mm) | Size A (mm) | Size B (mm) | Size S (mm) |
| TP-16.0 | 16.0 | 6 | 2m/M5 | 4/0.6 | 16/2.6 | 5-20 | 0.55*2 | 640 | 480 | 2150 | 1610 | 1700 |
| TP-16.0 | 16.0 | 9 | 2m/M5 | 4/0.6 | 16/2.6 | 5-20 | 0.55*2 | 640 | 480 | 2450 | 1610 | 2000 |
| TP-16.0 | 16.0 | 12 | 2m/M5 | 4/0.6 | 16/2.6 | 5-20 | 0.55*2 | 640 | 480 | 2850 | 1610 | 2400 |
| TP-16.0 | 16.0 | 15 | 2m/M5 | 4/0.6 | 16/2.6 | 5-20 | 0.55*2 | 640 | 480 | 3150 | 1610 | 2700 |
| TP-16.0 | 16.0 | 18 | 2m/M5 | 4/0.6 | 16/2.6 | 5-20 | 0.55*2 | 640 | 480 | 3550 | 1610 | 3100 |
| TP-20.0 | 20.0 | 6 | 1AM/M4 | 4/0.6 | 16/2.6 | 5-20 | 0.55*2 | 640 | 480 | 2150 | 1610 | 1700 |
| TP-20.0 | 20.0 | 9 | 1AM/M4 | 4/0.6 | 16/2.6 | 5-20 | 0.55*2 | 640 | 480 | 2450 | 1610 | 2000 |
| TP-20.0 | 20.0 | 12 | 1AM/M4 | 4/0.6 | 16/2.6 | 5-20 | 0.55*2 | 640 | 480 | 2850 | 1610 | 2400 |
| TP-20.0 | 20.0 | 15 | 1AM/M4 | 4/0.6 | 16/2.6 | 5-20 | 0.55*2 | 640 | 480 | 3150 | 1610 | 2700 |
| TP-20.0 | 20.0 | 18 | 1AM/M4 | 4/0.6 | 16/2.6 | 5-20 | 0.55*2 | 640 | 480 | 3550 | 1610 | 3100 |
| TP-25.0 | 25.0 | 6 | 2m/M5 | 3.3/0.8 | 20/5 | 5-20 | 1.1*2 | 790 | 620 | 2450 | 1850 | 2000 |
| TP-25.0 | 25.0 | 9 | 2m/M5 | 3.3/0.8 | 20/5 | 5-20 | 1.1*2 | 790 | 620 | 2850 | 1850 | 2400 |
| TP-25.0 | 25.0 | 12 | 2m/M5 | 3.3/0.8 | 20/5 | 5-20 | 1.1*2 | 790 | 620 | 3550 | 1850 | 3100 |
| TP-25.0 | 25.0 | 15 | 2m/M5 | 3.3/0.8 | 20/5 | 5-20 | 1.1*2 | 790 | 620 | 3550 | 1850 | 3100 |
| TP-25.0 | 25.0 | 18 | 2m/M5 | 3.3/0.8 | 20/5 | 5-20 | 1.1*2 | 790 | 620 | 3850 | 1850 | 3400 |
| TP-32.0 | 32.0 | 6 | 2m/M5 | 3.3/0.8 | 20/5 | 5-20 | 1.1*2 | 790 | 620 | 2450 | 1850 | 2000 |
| TP-32.0 | 32.0 | 9 | 2m/M5 | 3.3/0.8 | 20/5 | 5-20 | 1.1*2 | 790 | 620 | 2850 | 1850 | 2400 |
| TP-32.0 | 32.0 | 12 | 2m/M5 | 3.3/0.8 | 20/5 | 5-20 | 1.1*2 | 790 | 620 | 3550 | 1850 | 3100 |
| TP-32.0 | 32.0 | 15 | 2m/M5 | 3.3/0.8 | 20/5 | 5-20 | 1.1*2 | 790 | 620 | 3550 | 1850 | 3100 |
| TP-32.0 | 32.0 | 18 | 2m/M5 | 3.3/0.8 | 20/5 | 5-20 | 1.1*2 | 790 | 620 | 3850 | 1850 | 3400 |
| TP-40.0 | 40.0 | 6 | 1AM/M4 | 0-4.9 | 38 | 5-20 | 1.5*2 | 895 | 980 | 2650 | 2140 | 2000 |
| TP-40.0 | 40.0 | 9 | 1AM/M4 | 0-4.9 | 38 | 5-20 | 1.5*2 | 895 | 980 | 2650 | 2140 | 2000 |
| TP-40.0 | 40.0 | 12 | 1AM/M4 | 0-4.9 | 38 | 5-20 | 1.5*2 | 895 | 980 | 3050 | 2140 | 2400 |
| TP-40.0 | 40.0 | 15 | 1AM/M4 | 0-4.9 | 38 | 5-20 | 1.5*2 | 895 | 980 | 3350 | 2140 | 2700 |
| TP-40.0 | 40.0 | 18 | 1AM/M4 | 0-4.9 | 38 | 5-20 | 1.5*2 | 895 | 980 | 3750 | 2140 | 3100 |
| TP-50.0 | 50.0 | 6 | 2m/M5 | 0-3.2 | 38 | 5-20 | 1.5*2 | 895 | 980 | 2650 | 2100 | 2000 |
| TP-50.0 | 50.0 | 9 | 2m/M5 | 0-3.2 | 38 | 5-20 | 1.5*2 | 895 | 980 | 3050 | 2100 | 2400 |
| TP-50.0 | 50.0 | 12 | 2m/M5 | 0-3.2 | 38 | 5-20 | 1.5*2 | 895 | 980 | 3750 | 2100 | 3100 |
| TP-50.0 | 50.0 | 15 | 2m/M5 | 0-3.2 | 38 | 5-20 | 1.5*2 | 895 | 980 | 4450 | 2100 | 3800 |
| TP-50.0 | 50.0 | 18 | 2m/M5 | 0-3.2 | 38 | 5-20 | 1.5*2 | 895 | 980 | 4850 | 2100 | 4200 |
| TP-63.0 | 63.0 | 6 | 1AM/M4 | 0-3.2 | 38 | 5-20 | 2.2*2 | 975 | 1110 | 2700 | 2220 | 2000 |
| TP-63.0 | 63.0 | 9 | 1AM/M4 | 0-3.2 | 38 | 5-20 | 2.2*2 | 975 | 1110 | 3100 | 2220 | 2400 |
| TP-63.0 | 63.0 | 12 | 1AM/M4 | 0-3.2 | 38 | 5-20 | 2.2*2 | 975 | 1110 | 3800 | 2220 | 3100 |
| TP-63.0 | 63.0 | 15 | 1AM/M4 | 0-3.2 | 38 | 5-20 | 2.2*2 | 975 | 1110 | 4500 | 2220 | 3800 |
| TP-63.0 | 63.0 | 18 | 1AM/M4 | 0-3.2 | 38 | 5-20 | 2.2*2 | 975 | 1110 | 4900 | 2220 | 4200 |
| TP-80.0 | 80.0 | 6 | 1AM/M4 | 0~2.4 | 38 | 5-20 | 2.2*2 | 975 | 1110 | 3100 | 2220 | 2400 |
| TP-80.0 | 80.0 | 9 | 1AM/M4 | 0~2.4 | 38 | 5-20 | 2.2*2 | 975 | 1110 | 3800 | 2220 | 3100 |
| TP-80.0 | 80.0 | 12 | 1AM/M4 | 0~2.4 | 38 | 5-20 | 2.2*2 | 975 | 1110 | 4500 | 2220 | 3800 |
| TP-80.0 | 80.0 | 15 | 1AM/M4 | 0~2.4 | 38 | 5-20 | 2.2*2 | 975 | 1110 | 4900 | 2220 | 4200 |
| TP-80.0 | 80.0 | 18 | 1AM/M4 | 0~2.4 | 38 | 5-20 | 2.2*2 | 975 | 1110 | 5500 | 2220 | 4800 |

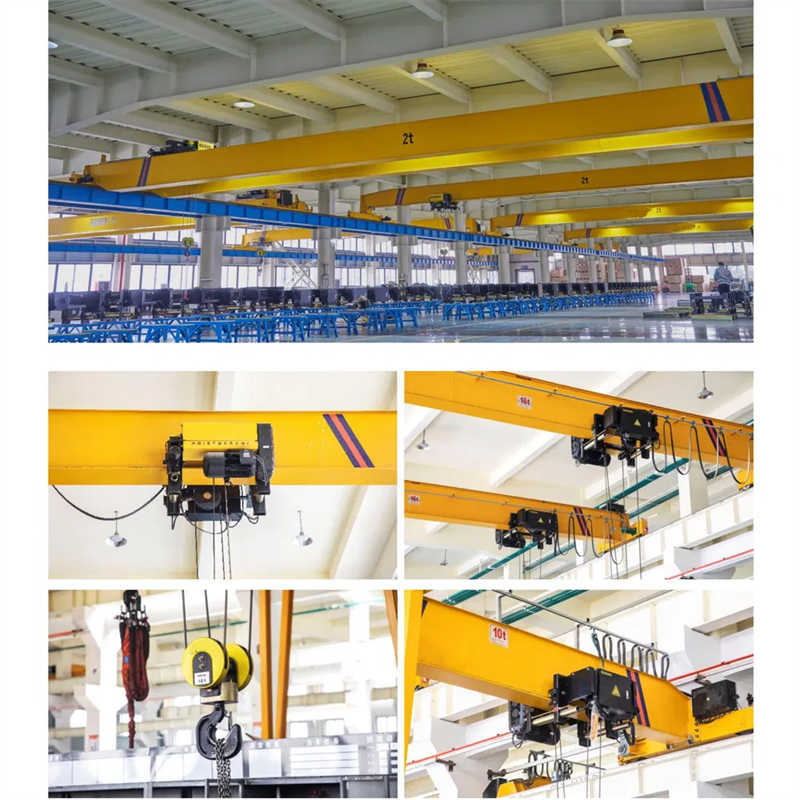

Detailed Photos
Company Profile
Certifications
FAQ
Q1: Can provide customized products? OEM products or ODM products?
A1: Yes,we can provide customized products according to your requirement. Both OEM and ODM are acceptable.
Q2: Can we print the LOGO on products?
A2: Yes, the OEM is available with the permission of our customers.
Q3: How do you control your quality?
A3: 1. We only select high-quality steel material from famous steel group
2. Standardized production process with traceable ID Card, every part can be tracked to the original records.
3. 100% finished product testing before shipping.
4. We accept third party product inspections.
5. ISO9001 Quality management system certificated factory
6. Supervised container loading process, ensures the last step security
Q4: What's the lead time for production?
A4: Usually around 10-15 days after payment received, around 30 days during new year's or national holidays.
Q5: What Payment terms do you accept?
A5: T/T or L/C, if you want any other method please contact sales.
Q6: What are your advantages compared to the others?
A6: 1.Unique products, with customized service.
2.Timely production and delivery, time is money.
3.Market protection service, long term business strategy.
