5T to 50T European Overhead Crane – Heavy-Duty Industrial Hoist System

5T to 50T European Overhead Crane – Heavy-Duty Industrial Hoist System

$6000.00

Min. Order: 1 set

Port: Qingdao Shanghai

Payment Terms: L/C T/T

Transport Package:

Conditions: New

Model: LD

Certifications: CE, ISO9001

Brand: Yingguang

Application: General manufacturing,Metal production industry,Renewable energy industry

Contact Supplier

Add to Wish List

Max. Lifting Capacity: 32 t

Max. Lifting Height: 30m

Span: 7.5-31.5m

Voltage: 380v/440v/customized

Working Duty: A3,A4,A5

Color: Yellow,Customized

Brand/Trademark: Yingguang

Model: LD

Origin: 中国

Warranty: 1 Years

Discover the unparalleled efficiency and reliability of the ISO Standard 10 Ton Bridge Crane with its sleek European Style Single Girder Overhead design, paired with an advanced Electric Hoist. Perfect for enhancing productivity in your industrial workshop, this lifting machine offers an exceptional combination of performance and value.

Capacity

Unit

3.2T

6.3T

10T

12.5T

16T

20T

Span

5-25.5

5-28.5

5-30

Lifting height

3-30

5-30

7.5-30

10-30

Power supply

220v,240v,380v,400v,415v,440v,460v,480v,525v/3p/50HZ,60HZ

work class

A3,A4,A5,A7 or as customer requirement

Control voltage

24v,36v,48v,110v,220v

Lifting speed

m/min

8/1.3 Dual

8/1.3Dual

5/0.8Dual

5/0.8 Dual

5/0.8Dual

5/0.8 Dual

Trolley Speed

m/min

20/5 Frequency conversion dual speed

Long travel speed

m/min

30/10 Frequency conversion dual speed

Lifting motor

3.3/0.5

3.2/0.45

6/1

7.6/1.1

9.5/1.5

12.5/2

16/2.6

20/5

Trolley motor

1*0.37

1*0.64

1*0.95

1*1.1

2*0.95

Long travel motor

2*0.25-2*0.37

2*0.25-2*0.55

2*0.37-2*0.55

2*0.37-2*0.75

2*0.37-2*1.1

2*0.55-2*1.1

2*0.75-2*1.1

2*0.75-2*1.5

2*0.95-2*1.5

Crane power

4.17-4.41

4.17-4.77

4.31-4.67

7.38-8.14

8.98-9.74

8.98-10.44

11.55-12.65

16.2-15.8

18.4-18.9

24.1-24.9

Electrical parts brand

Schneider

Control model

Pendent control, Remote control

festoon system type

C track with flat cable

Recommended crane rail

40*30,50*30

50*30,60*40

60*40,70*40

IP/Isulation class

IP55/F class is default,IP65,IP66 and H class is optional

Brake Type

electro-magnetic brake

Max wheel load

8.7-24

13.4-30.2

19-35.9

27.5-47.7

33.7-55.3

42.3-65.8

51.2-76.9

62.8-92.1

79.9-117

79.9-142.3

Total weight

1.21-7

1.26-7.6

1.35-7.6

1.55-8.5

2-9.45

2.5-10.2

2.75-10.95

2.85-12.4

3.45-14.85

3.45-17

Trolley weight

0.2

0.22

0.23

0.33

0.37

0.58

0.61

1.03-2.01

2.23

Safety protection Function

security monitoring system,Overload protection, Hoisting overheat protection, Warning Horn and Falsh,Low voltage protection,over current protection, up&down position limit switch,cross limit switch,Door interlock limits

Product Description

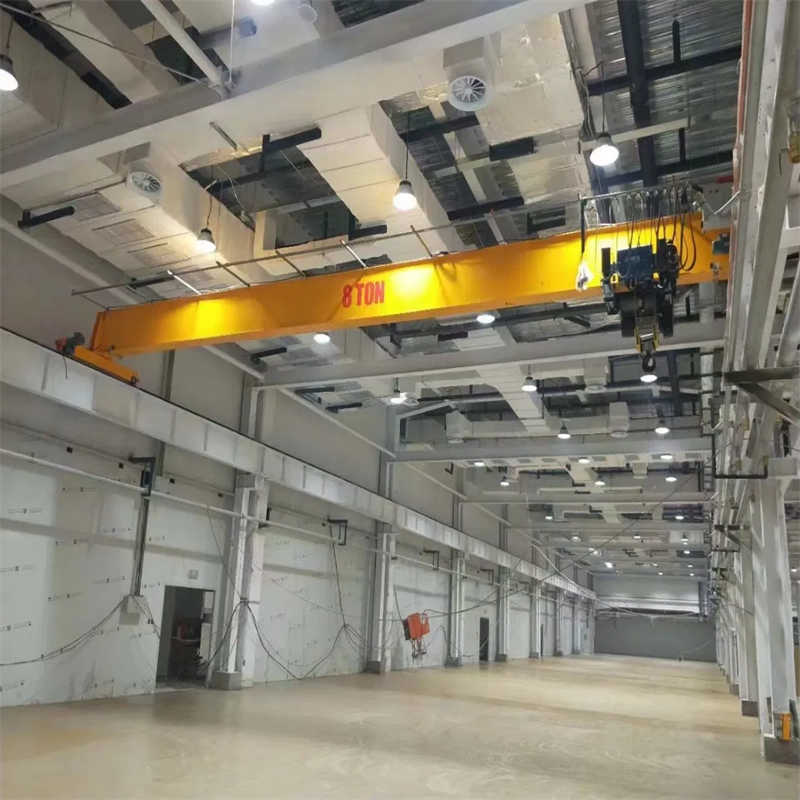

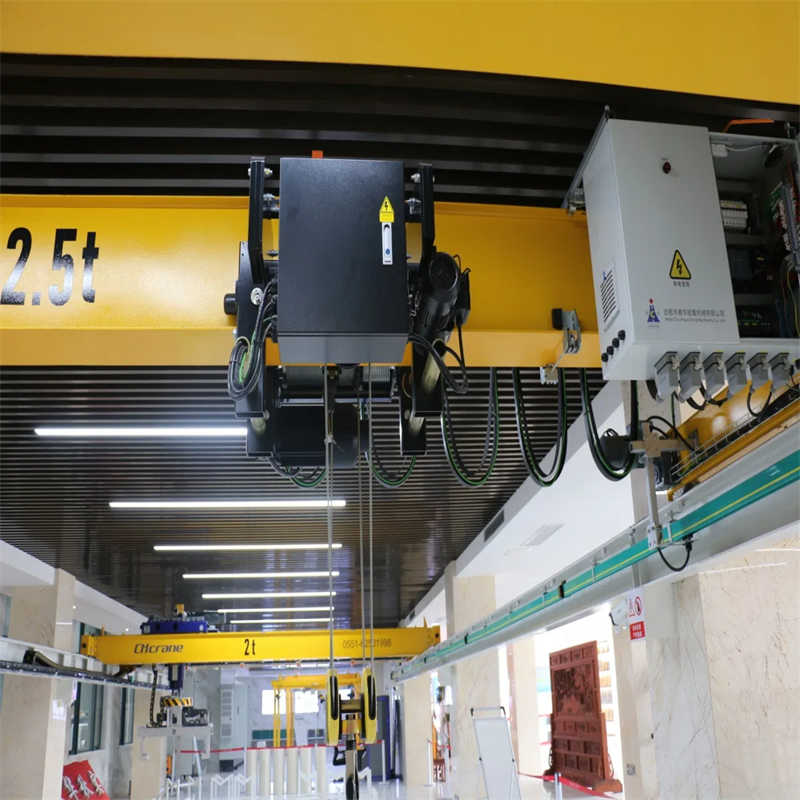

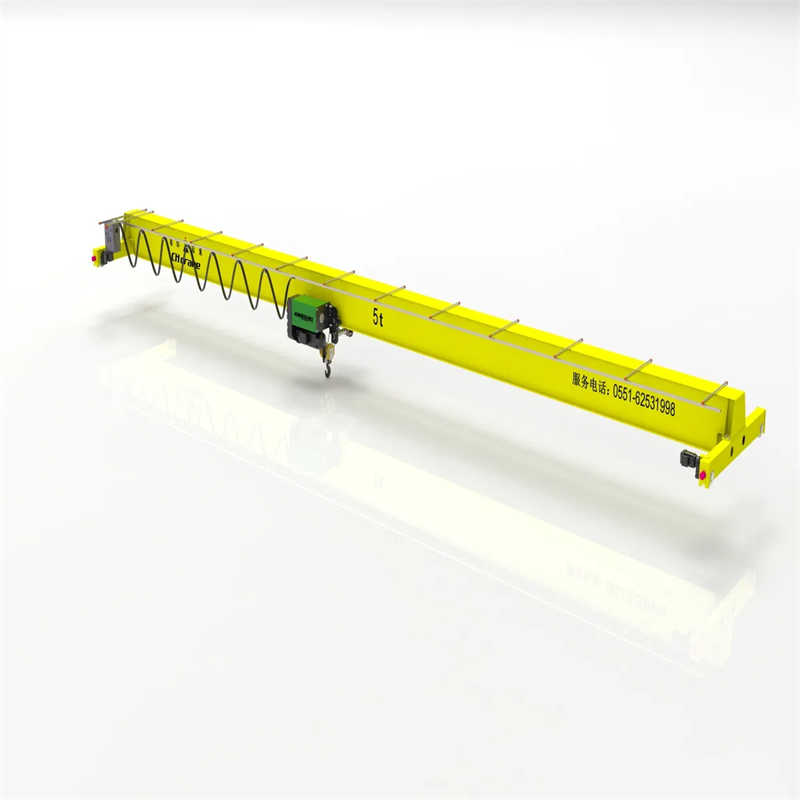

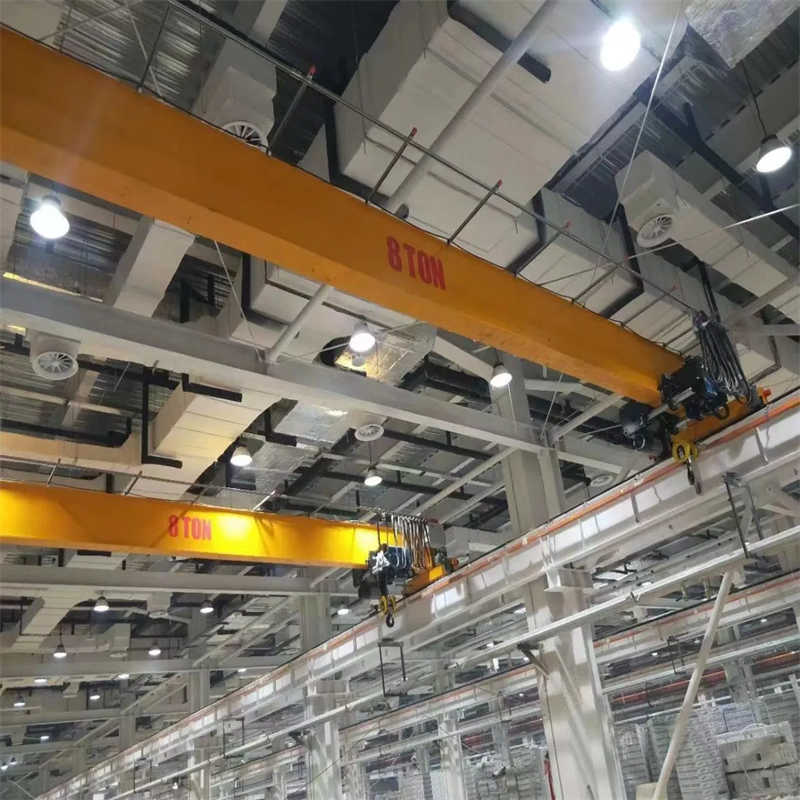

Introducing the single girder crane, a pinnacle of industrial lifting innovation. This equipment boasts a robust yet streamlined design, featuring a single span girder that seamlessly integrates with the support structure. It comes fully equipped with a state-of-the-art hoisting mechanism and an intuitive control system. Ideal for installation in diverse settings such as factories, workshops, and warehouses, it elevates operational efficiency to new heights.

Vantage 1:Uncomplicated yet Ingenious Structure: Experience the power of a compact profile that significantly reduces vertical headroom demands, optimizing your workspace and ensuring maximum utilization.
Vantage 2:Unmatched Cost-effectiveness: European-style single girder cranes provide a more economical solution compared to other crane variations, reducing purchase and operational costs dramatically.
Vantage 3:Versatile Modularity: Enjoy the flexibility of a modular design that allows for effortless customization, tailoring lifting capacities from 1 to 20 tons and spans up to 30 meters to fit your specific needs.
Vantage 4:Uncompromising Safety Features: Each European-style single girder crane is meticulously equipped with cutting-edge safety devices, ensuring accident prevention and safeguarding worker security.
Vantage 5:Bespoke Customization Options: These cranes are engineered to be precisely tailored, accommodating specific lifting requirements such as load capacity, span, and lifting height with precision.
