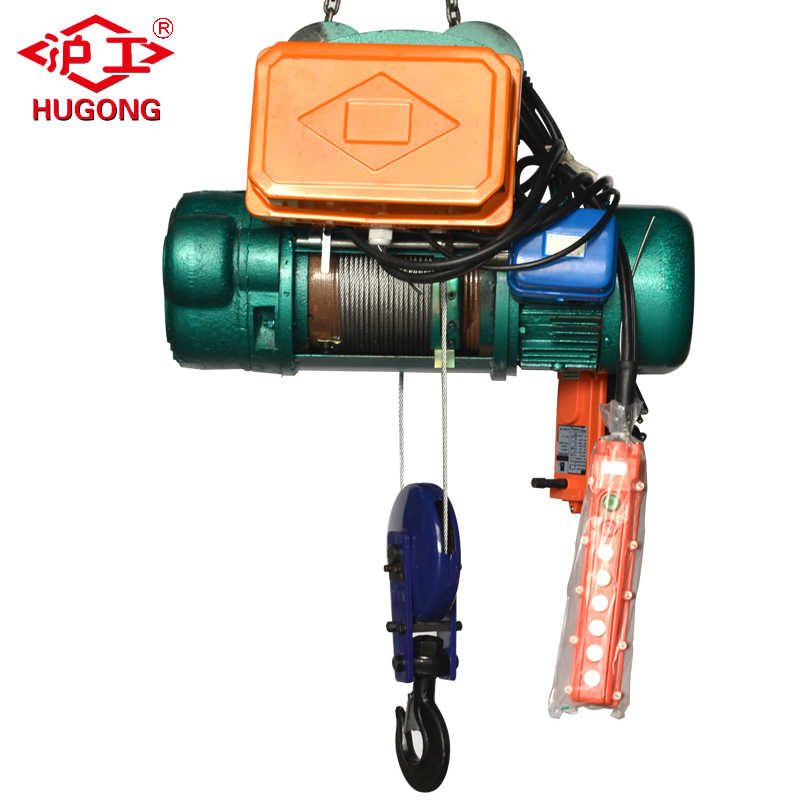

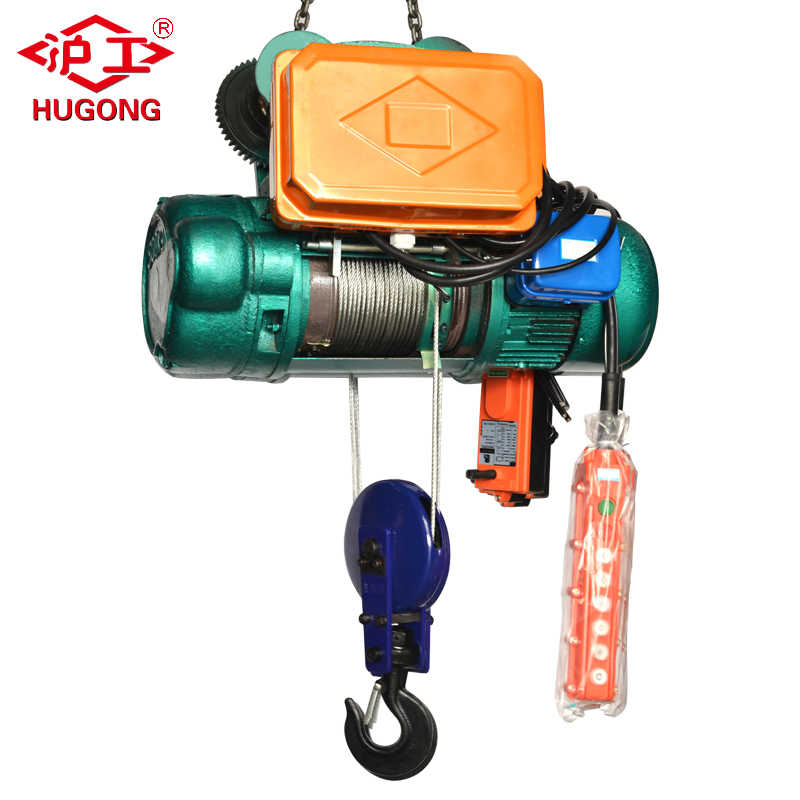

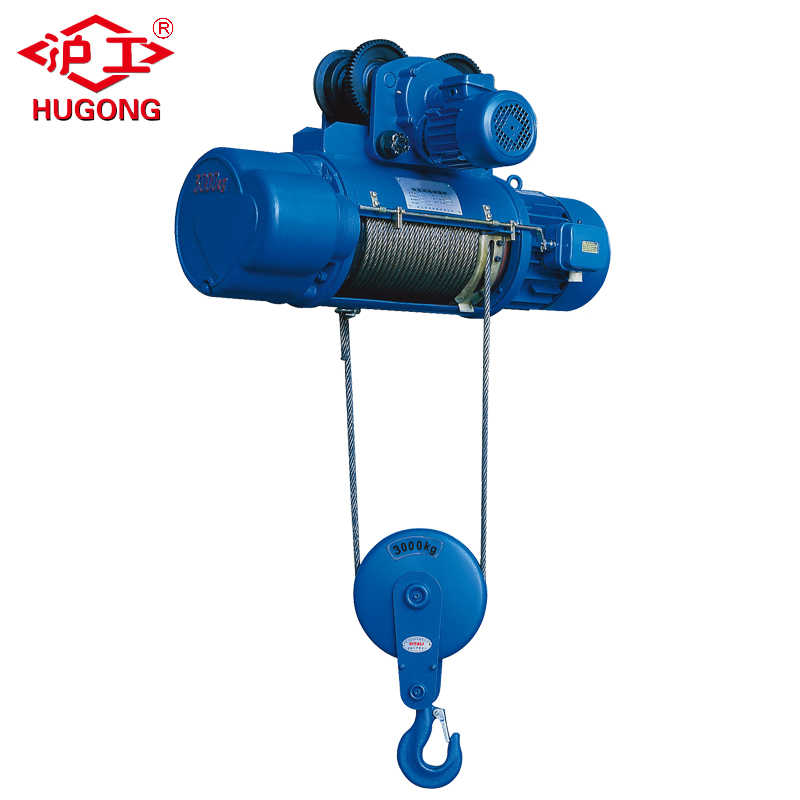

Hot Sale CD1 Wire Rope Hoist Kit Complete with Hook, Push Button Pendant
$270.00 1 set
Qingdao Shanghai
L/C T/T
New
CD1/MD1
CE, ISO9001
HUGO
General manufacturing
Hot Sale Electric Wire Hoists with Forged Hook
Introduction of Hot Sale Electric Wire Hoists with Forged Hook
1. Features of wire rope hoist
CD1 wire rope hoist has following features
Voltage: Customize
Sling type: Wire rope
Cover: All steel construction
Forged alloy steel hooks
Rope guide,
Power-off Protection,
Exhaust Fan,
Horizontal type is available,
Remote control (available),
Capacity T: 0.5-50,
Overload limiter
Work class: M3, M4
2. Parameters of wire rope hoist
Wire rope hoist has two speed. Fix type and running type is alvailable. Speed: 8m/min, 0.8m/min.
| Model | 0.25TON | 0.5TON | 1TON | 2TON | 3TON | 5TON | 10TON | |
| Capacity ton | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | |
| Standard lift m | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 | |
| Lifting Height m/min | 88/0.8 | 88/0.8 | 88/0.8 | 88/0.8 | 88/0.8 | 88/0.8 | 77/0.7 | |
| Running Speed m/min | 20/30 | |||||||
| Wire Rope type | 6*19-3.6 | 6*37-4.8-180 | 6*37-7.4-180 | 6*37-11-155 | 6*37-13-170 | 6*37-15-200 | 6*37-15-200 | |
| I beam track type | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c | |
| Loop track minimum Radius m | 0.8 | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 3.5-9 | |
| Voltage V | 380 | 380 | 380 | 380 | 380 | 380 | 380 | |
| Frequency HZ | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Phase | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
CD1 Electric wire rope hoist production
