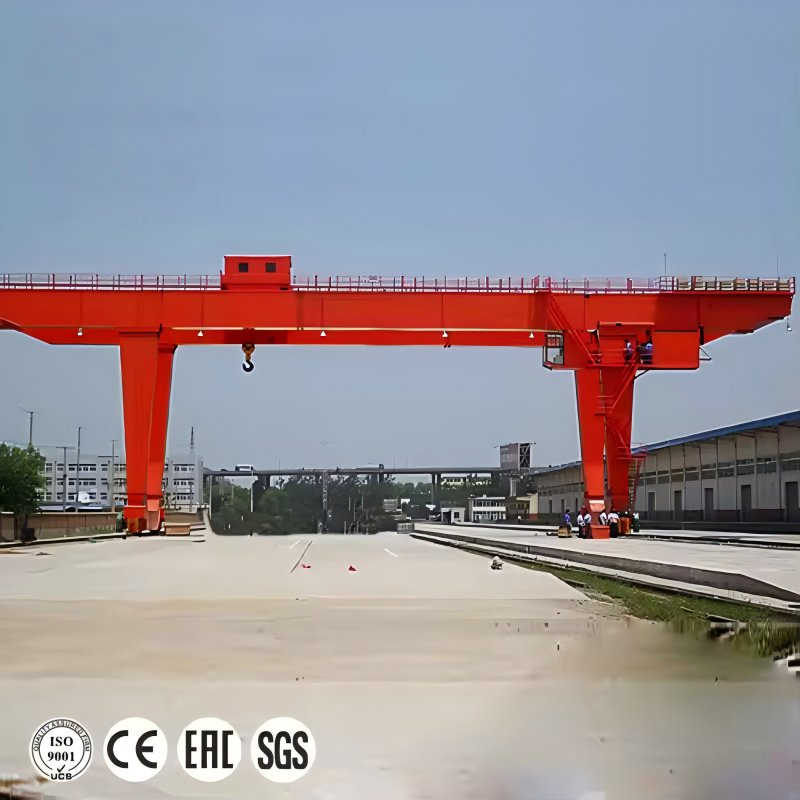

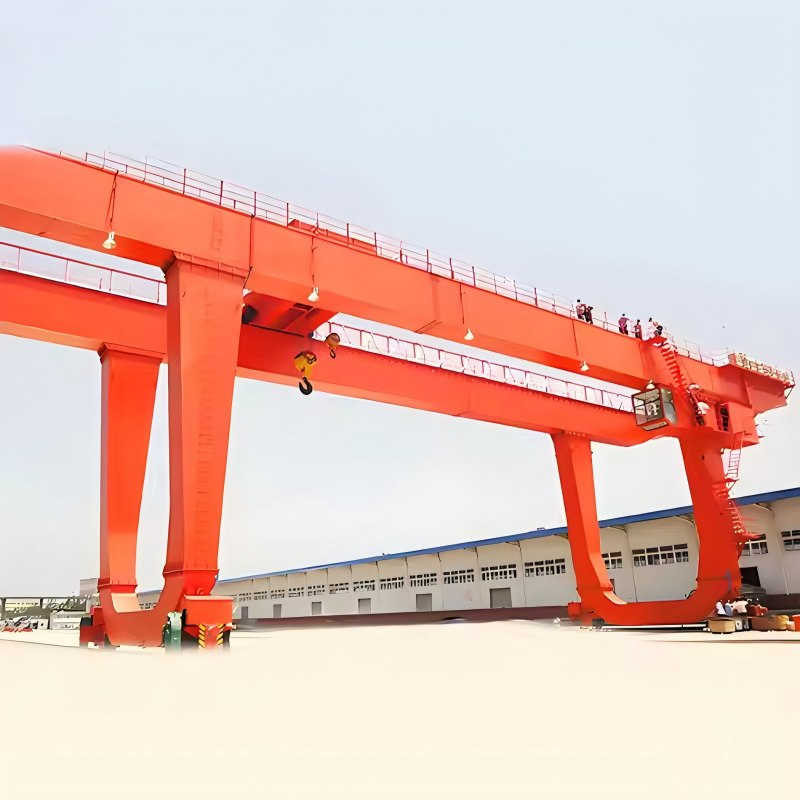

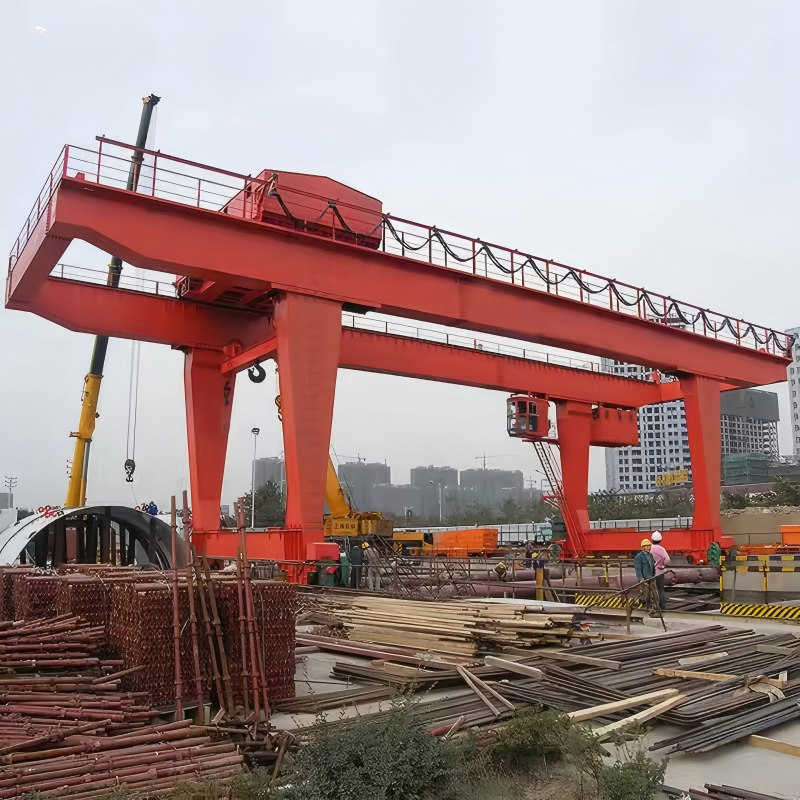

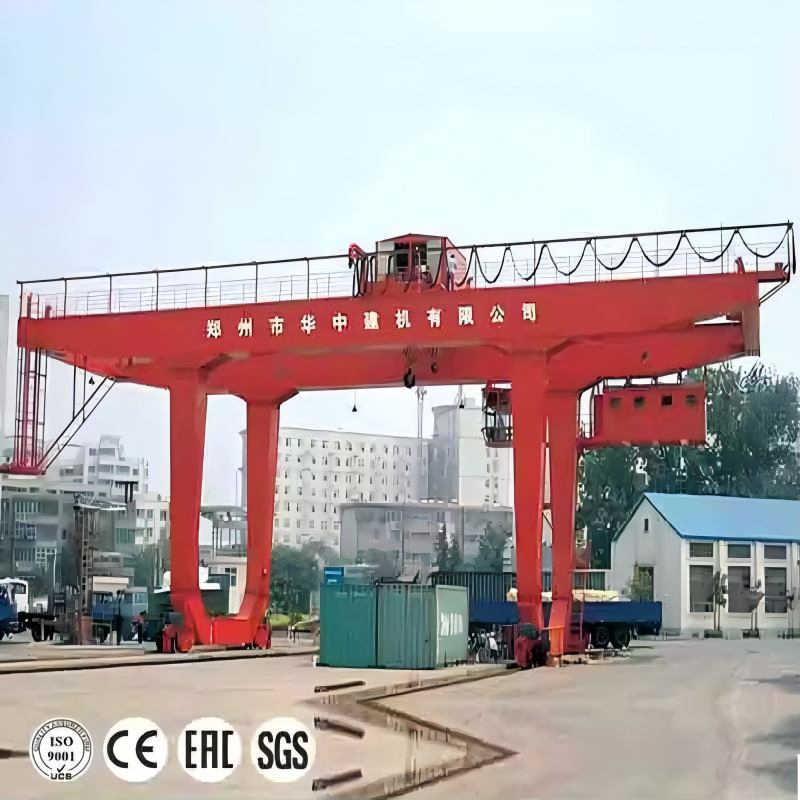

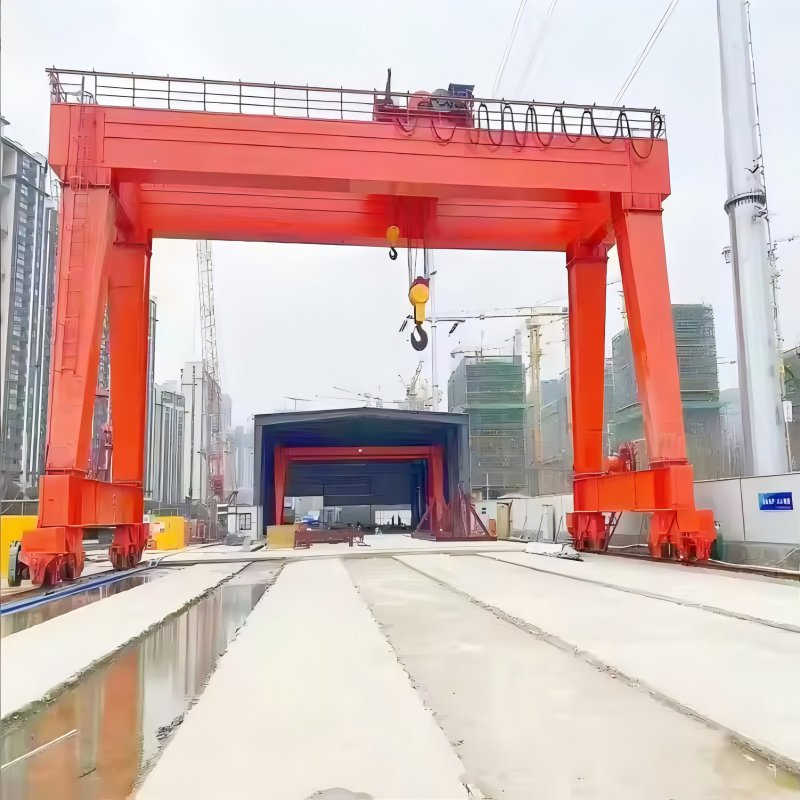

MG Type Double Girder Gantry Crane for Sale Medium to Heavy Load Handling
$15000.00 1 set
Qingdao Shanghai
L/C T/T
New
MG
CE, ISO9001
Chongpeng
General manufacturing,Metal production industry,Renewable energy industry
Product Description
| Capacity (ton) | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | ||
| Span (m) | 18, 22, 24, 26, 30, 35 | |||||||
| Lifting height (m) | 10, 11, 12 | |||||||
| Working class | A5 | |||||||
| Control way | Cabin control | |||||||
| Power source | 380V 50HZ 3phase (Could supply it as yours) | |||||||
| Trolley lifting mechanism | ||||||||
| Lifting speed (m/min) | Main hook | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | |
| Auxiliary hook | - | - | 14.6 | 15.4 | 15.4 | 10.4 | ||
| Trolley traveling mechanism | ||||||||
| Traveling speed (m/min) | 37.3 | 35.6 | 36.6 | 36.6 | 37 | 36 | ||
| Crane traveling mechanism | ||||||||
| Traveling speed (m/min) | 37.3 | 39.7 | 37.3 | 39.7 | 39.4 | 38.5 | ||
| Motor power(KW) | 40.8-51.8 | 41.5-52.8 | 80-77 | 84-81 | 99.3-117.3 | 126.5 | ||
| Steel track recommended | 43kg/m | 43kg/m or QU70 | ||||||
MG crane is a bridge-type crane,whose bridge structure runs supported by both sides of the legs on the ground track. It is also known as gantry crane. In general, there are main cantilever beams on both sides of the main beam, which make it easier to transit goods from under to outside. Besides, the operator enters the driver cabinfrom groundbythe ladder platform installed on the side of the legs
