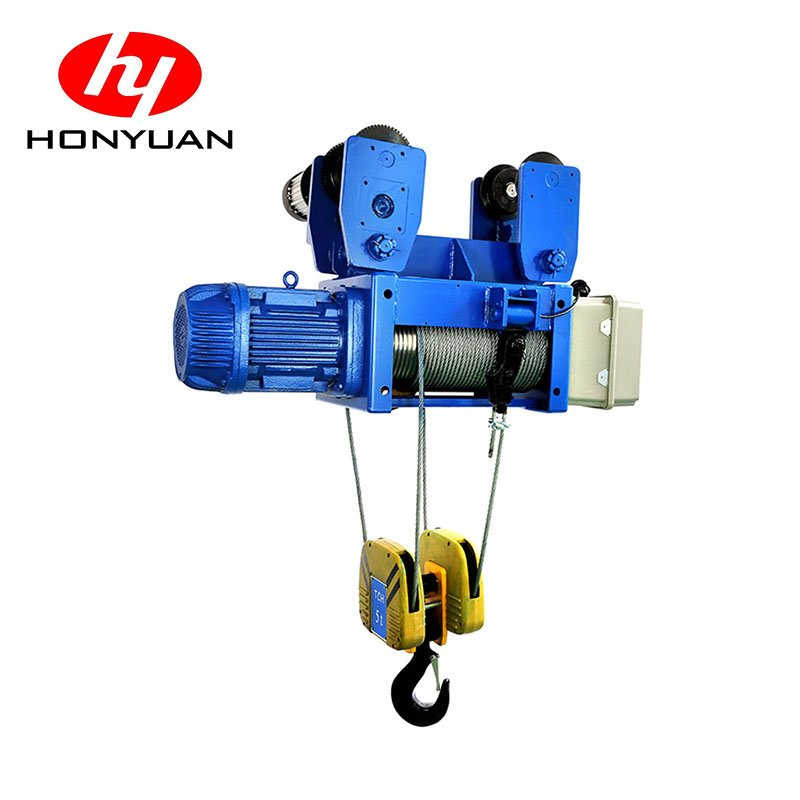

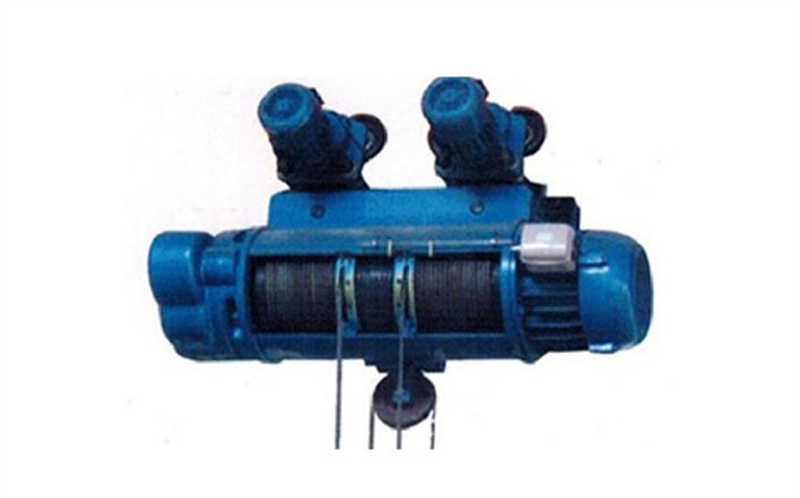

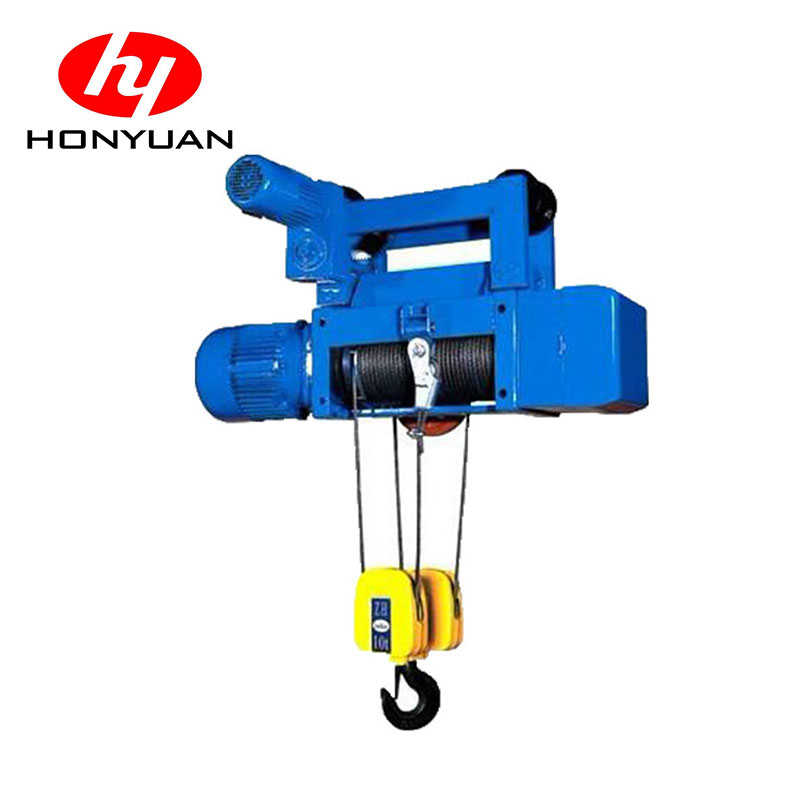

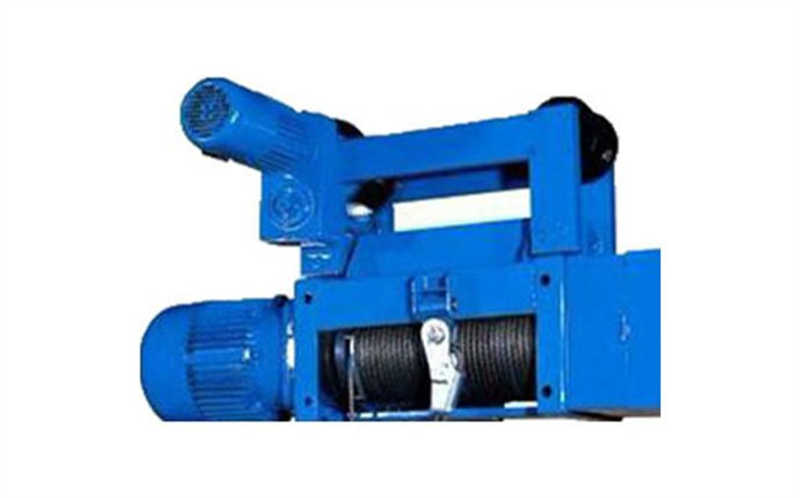

Heavy Duty 10 Ton CD/MD Electric Wire Rope Hoist for Industrial Cranes
$800.00 1 set
Qingdao Shanghai
L/C T/T
New
CD1/MD1
CE, ISO9001
Honyuan
General manufacturing
Heavy Duty Remote Control Electric Chain Hoist
0.5~50 ton lifting capacity
With upper hook (fixed) or with trolley
Single/Double speed option
Shell: aluminum alloy
Chain: high quality G80
Chain container: canvas / iron
Gear & chain wheel: alloy steel + heat treatment
Hooks: heat forging+heat treatment
Chain diameter: 6.3~11.2mm (as per different capacities)
Motor rotate speed:1440r/min(single speed), 2880/960 r/min(double speed),
Standard chain length: 3m (can be customized)
Power specification:200~690V,50/60HZ,3 Phase
Safe voltage:24V/36V/48V
Button switch:2/4/6/8 buttons option
Insulation grade:F class
Protection class: IP55
Working group:M4
OEM acceptable
Customized logo acceptable
Package: plywood case
Warranty: 2 years for mechanical parts, 1 year for electric parts
| PRODUCT PARAMETERS | ||||||||
| MODEL | 0 25Ton | 0.5Ton | 1Ton | 2Ton | 3Ton | 5Ton | 10Ton | |
| Capacity ( t ) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | |
| Standard lift ( m ) | 3-9 | 6-12 | 6-30 | 6-30 | WO | 6-30 | 9-30 | |
| Lifting Height ( m/min ) | 88/0.8 | 88/08 | 88/0.8 | 88/08 | 88/0.8 | 88/08 | 77/0.7 | |
| Wire rope type | 6x19-3 6 | 6x37-4.8-180 | 6x37-4.8-180 | 6x37-11-155 | 6x37-13-170 | 6x37-15-200 | 6x37-15-200 | |
| 1 Beam Track Type | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c | |
| Loop track Minimum Radius(m) | 0.8 | 1.5 | 1.54 | 2-4 | 2-4 | 25-5 | 3.5-9 | |
