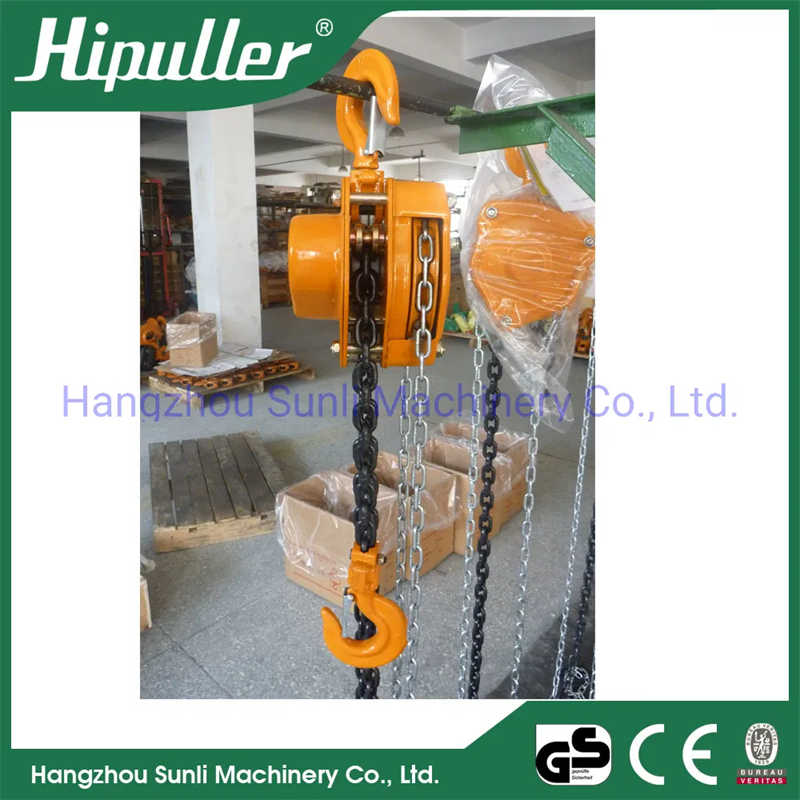

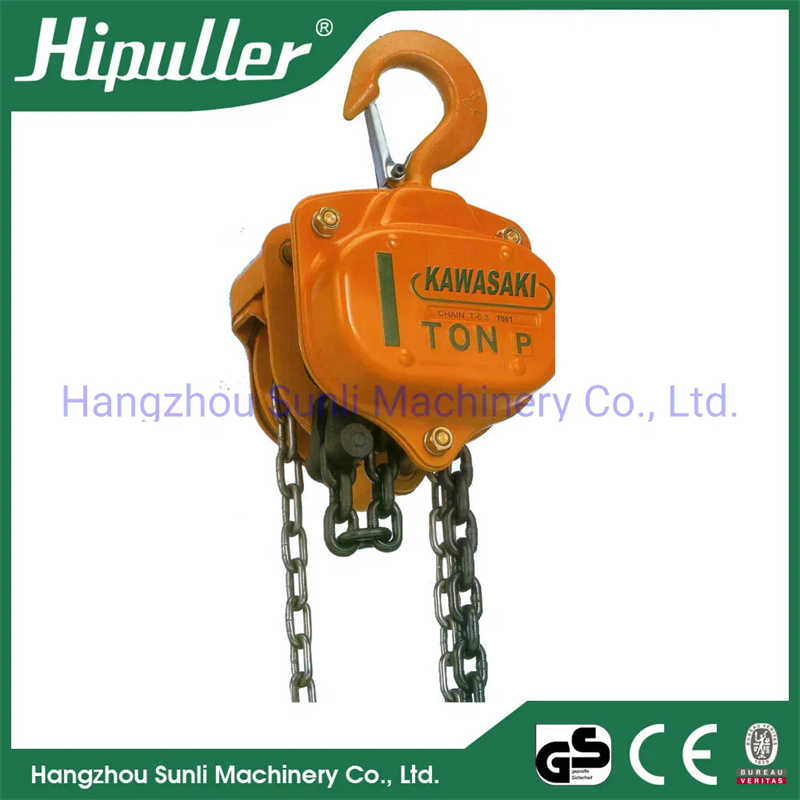

Lifting Manual Chain Hoist Pulley Block

Capacity

TON

0.5

1

1.5

2

3

5

10

15

Standard Lift

M

3

3

3

3

3

3

3

3

Running test load

TON

0.75

1.5

2.25

3

4.5

7.5

12.5

18.75

Effort Required
To Lift Max Loadv

N

200

320

360

365

385

435

435

435

Load Chain Falls of Chain

1

1

1

1

2

2

4

6

DiaxPitch

MM

5X15

6.3X19

7.1X21

8X24

7.1X21

9X27

9X27

9X27

Dimensions A

MM

126

151

151

183

151

183

188

190

Dimensions B

MM

145

159

178

205

208

264

398

580

Dimensions C

MM

285

315

340

380

475

600

720

870

Dimensions D

MM

35

35.5

45

42.5

50

64

85

101

Dimensions K

MM

28

32

36

36

46

46

57

75

Net.Weight

KG

8.4

10

16.2

18.8

20.6

36

79

120

Extra weight Per M of Extra Lift(KG)

KG

1.7

1.7

2.2

2.2

3.6

5.2

9.5

16

Measurements(L*W*H)

CM

22x17x15

24x18x16

26x18x18

32x23x18.5

34x24x18.5

40x30x18.5

55x43x23

69x56x20
