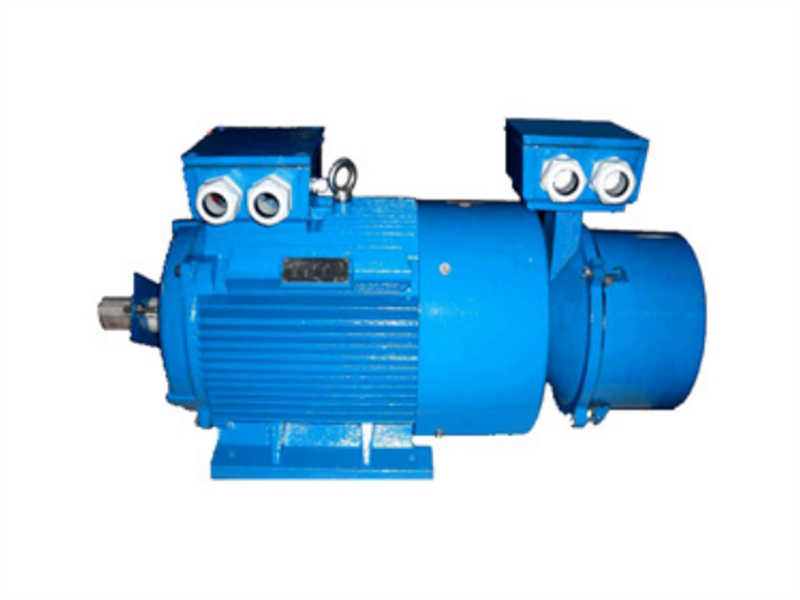

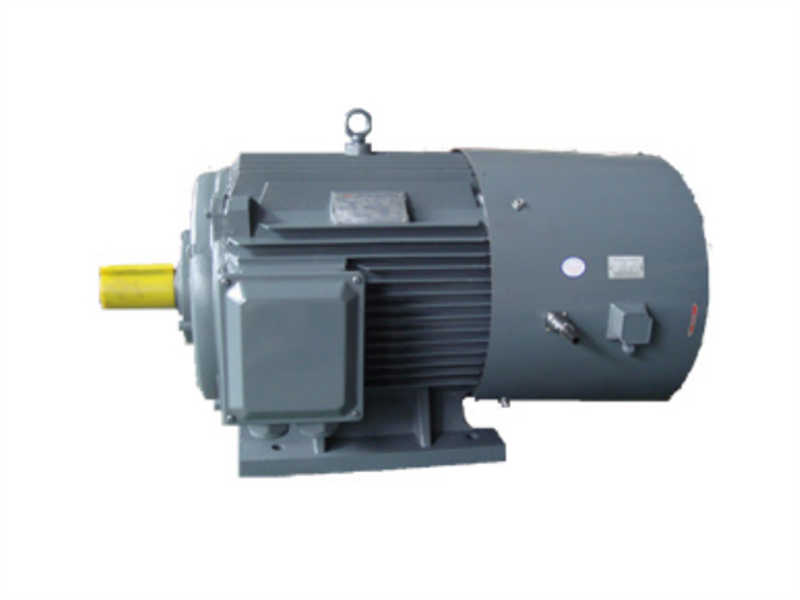

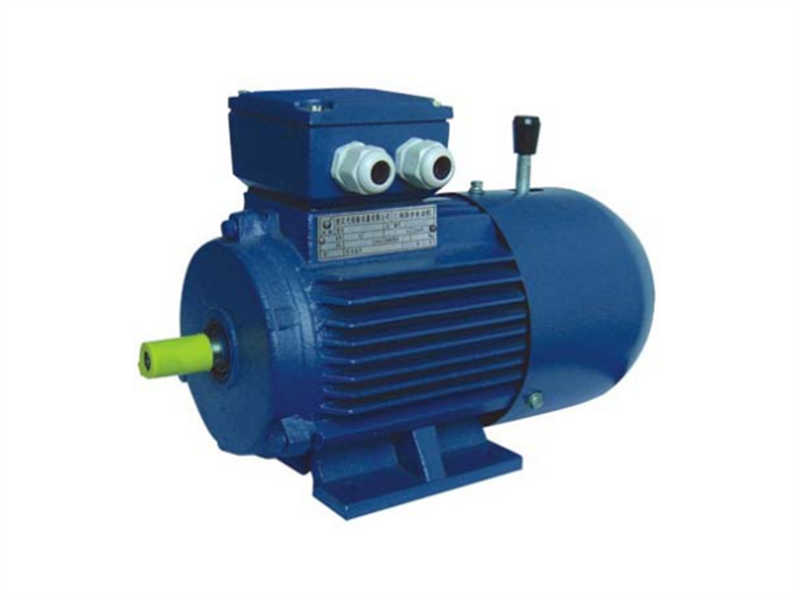

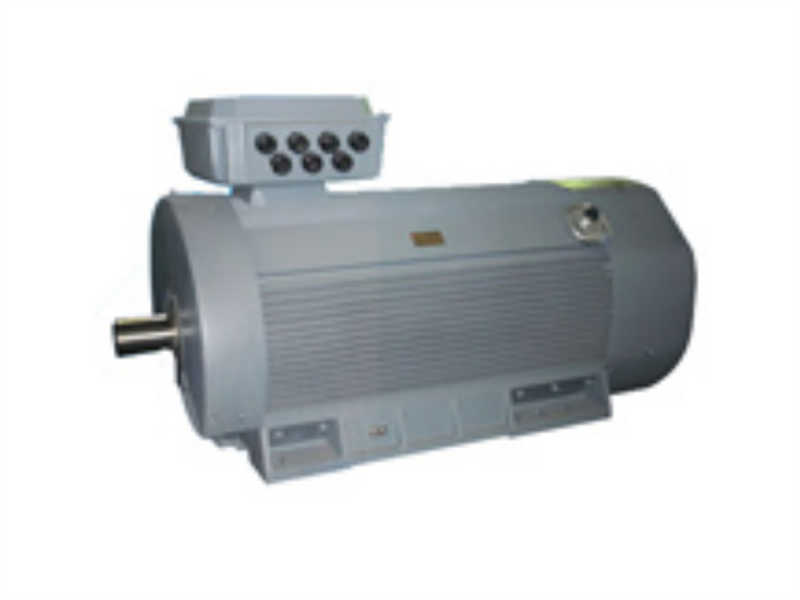

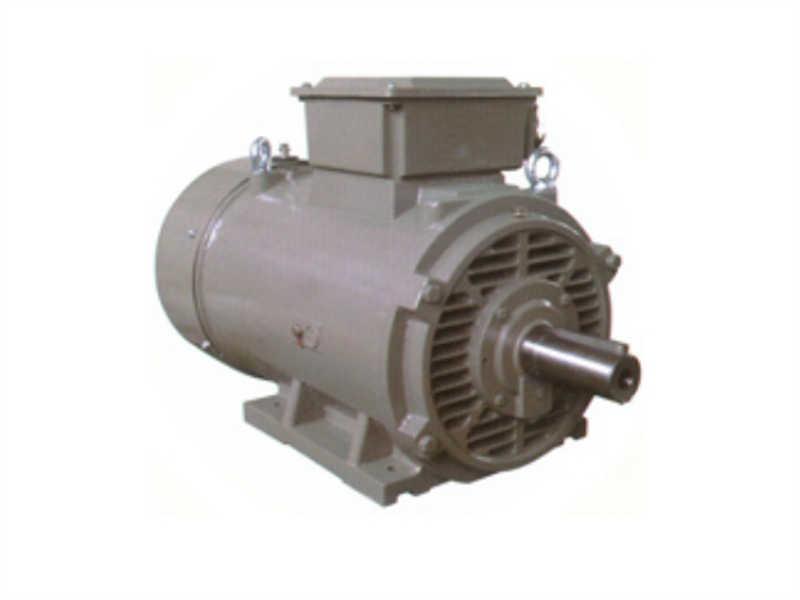

YE3 Cast Iron Electric Motors

Standard Features:

1.  Three Phase, Europe/Australia Voltage:  220/380V, 230/400V, 240/415V  Up to 3KW;  380/660V, 400/690V, 415V/720  4Kw and Above; 50/60HZ,   IP55,  Class F, TEFC ;

2.   Cast Iron frames 80-400,

3.   Squirrel Cage Rotor/Aluminum Die Cast

4.   V-Ring On Both End-Shields Or Oil-Seal Ring On Both End-Shields

5.   Anti-Condensation Drain Holes On Request

6.   IE3 Design: 2P, 4P, 6P, 8P, 10P

7.   Class "F" Insulation

8.   Continuous Duty-S1

9.   Ambient Temp. 40℃

10.  Altitude: 1000M

11.  Dimensions According To IEC-72

12.  Performance According To IEC-34

13.  Regreasing Nipples From 180 And Above

14.  Metric Thread Cable Entries In Terminal Box

15.  PTC Thermistors(1 Per Phase) fitted in 160M and Above

16.  Suitable For Inverter Duty Applications

17.  Paint Color Blue: RAL5010 Or Others

Optional Features:

1.  Degree of Protection : IP56

2.  Bearing Seals: Oil Seal Or Labyrinth Seal For 160 And Above

3.  Thermal Protection:   1.RTD-PT100；2. PTC For frame 132 And Below

4.  Space Heaters

5.  Class "H" Insulation

6.  Roller Bearing For frame 160M and Above.

7.  Hollow Shaft , Stainless Steel Shaft And Special Shaft.
