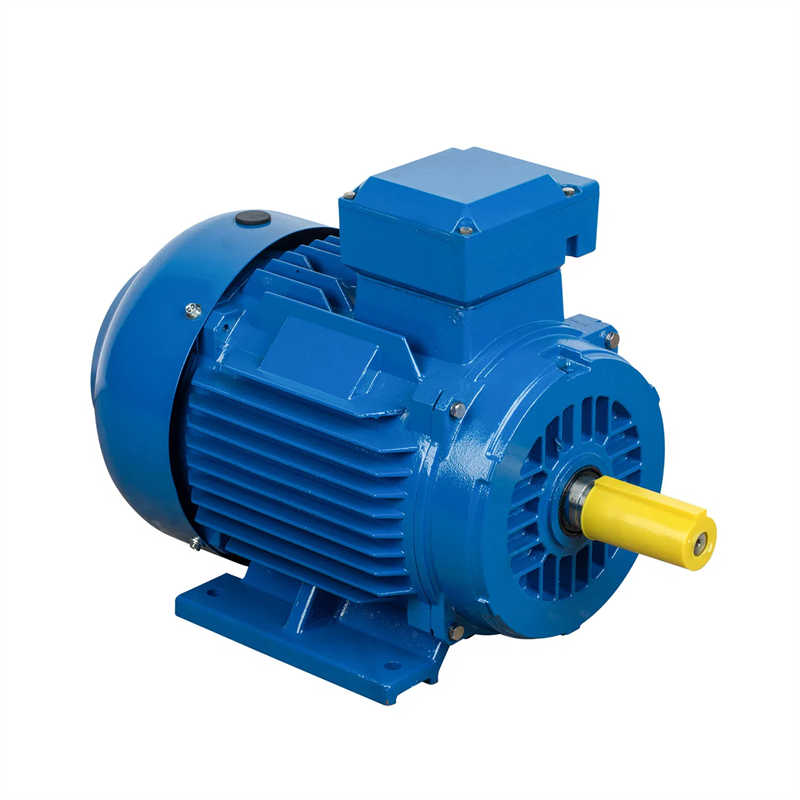

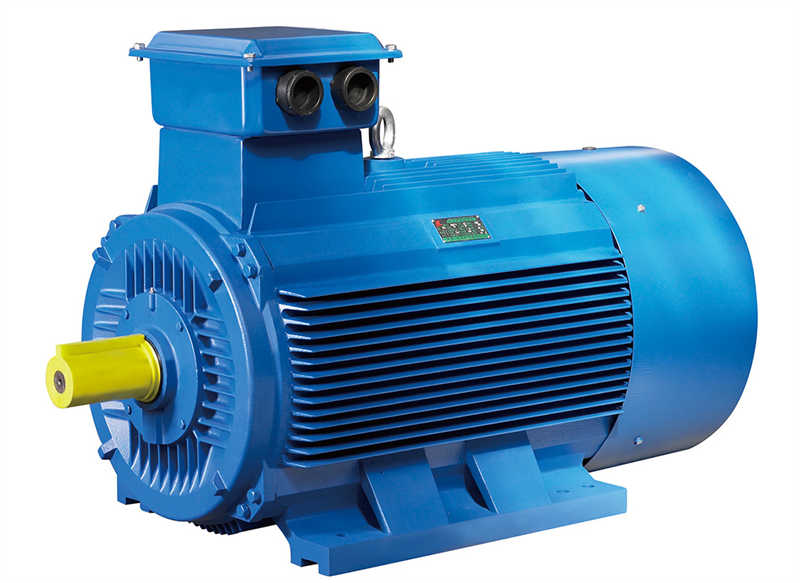

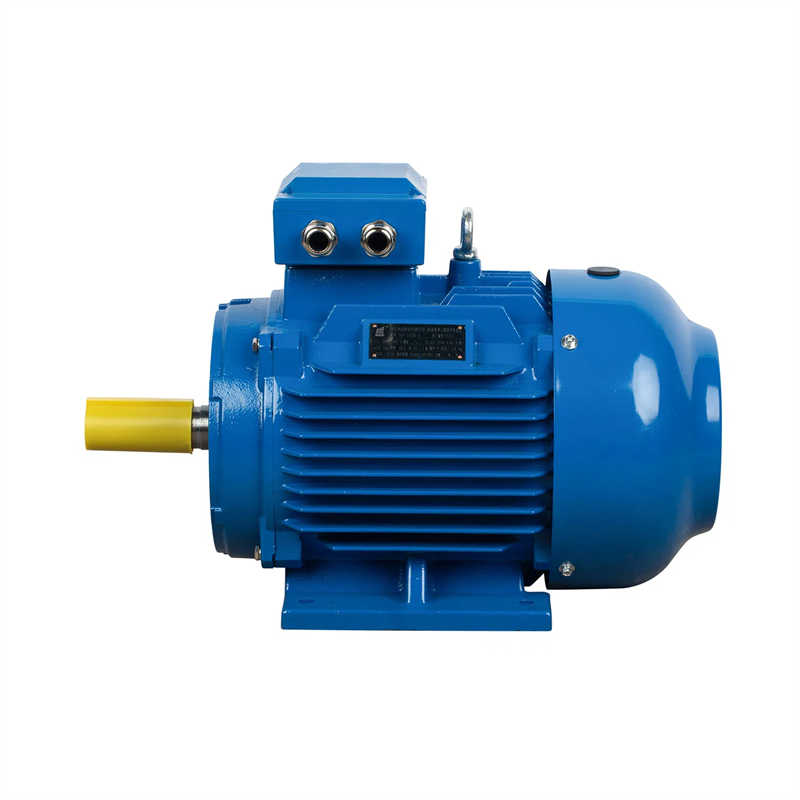

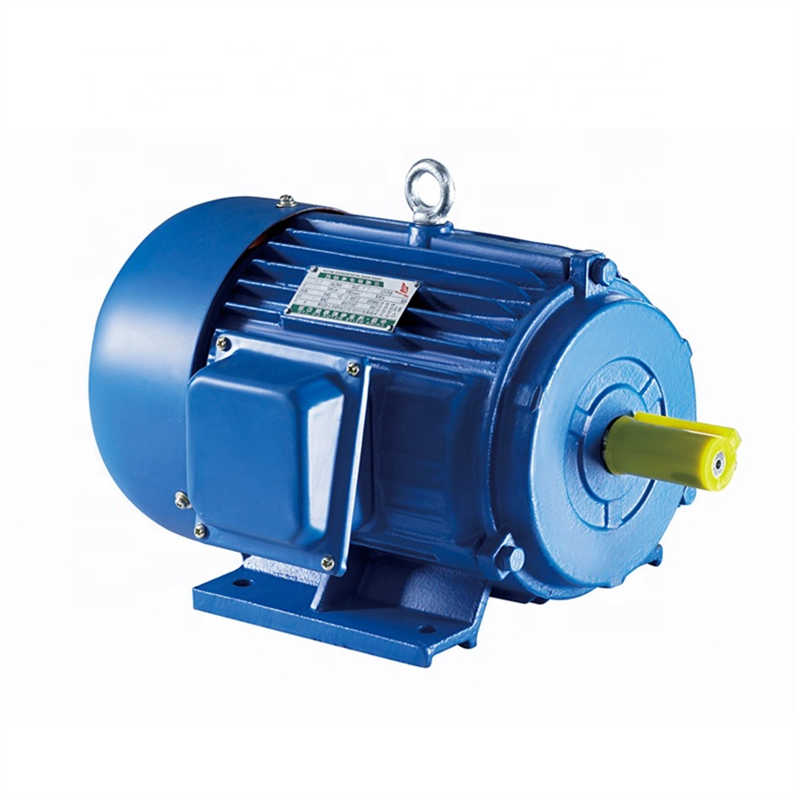

Premium Energy Cast-iron Three-Phase Asynchronous Induction Motor

Product Description

The Y2E series motors are cast iron framed, 3 phase asynchronous with totally enclosed fan cooled (TEFC) design. They are premium energy efficient type of Y2 series motor, meeting level Eff2 and Eff1 of European efficiency scheme (CEMEP-EU) and Australia MEPS/High efficiency standard.

The Y2E series motors have the popular European-style appearance. The end-shield has cooling pins. Terminal box can turn in four directions with increments of 90 degree and has choice of top, left and right position. Re-greasing system is equipped on the back end-shield for frame 160 and above, convenient for maintenance. Non-solvent and VPI guarantee excellent insulation and long service life.

Specifications

* Three Phase, Euro-voltage, Up to 3kW, 220-240V delta/380-415V star
4kW and Above, 380-415V delta/660-720V star
50/60HZ, IP55, TEFC
* Cast Iron frames 63-355
* V-Ring On Both End-Shields, or Oil-Seal Ring On Both End-Shields
* Anti-Condensation Drain Holes
* Meet Efficiency Level Of Eff2, Eff1, And MEPS (Australia & New Zealand) Design
* Class "F" Insulation ( ΔT=80K)
* Continuous Duty-S1
* Ambient Temp. Between -15 and +40 Celsius degree
* Altitude: Not Exceed 1000M
* Dimensions According To IEC-72
* Performance According To IEC-34
* Regreasing Nipples From frame 160 and Above
* Metric Thread Cable Entries In Terminal Box
* Thermistors (1 Per Phase) Fitted In frame 160 And Above
* Suitable For Inverter Duty Applications
* Paint Color: RAL5010 or Others Upon Request

Options

* Degree of Protection: IP56 or IP65
* Bearing Seals: Oil Seal
* Thermal Protection: 1. PT100 2. Thermistors For frame 132 And Below
* Space Heaters
* Class "H" Insulation
* Roller Bearings For frame 160 and Above.
