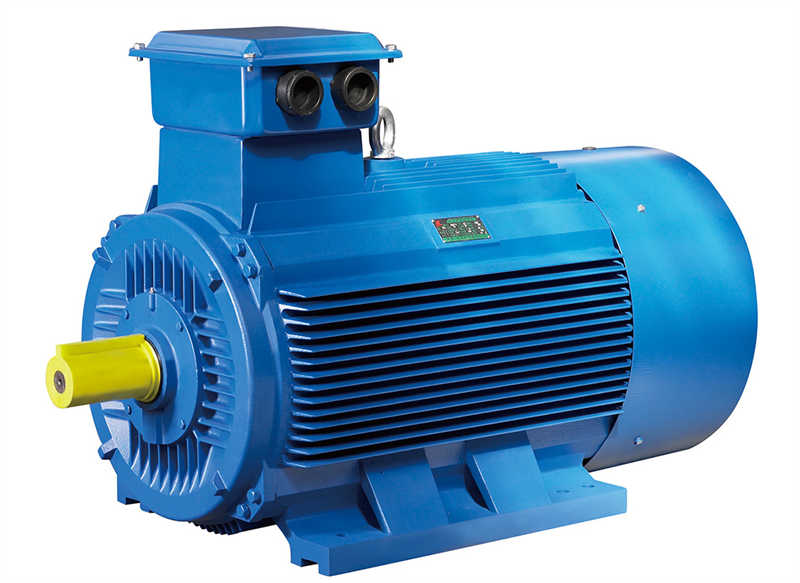

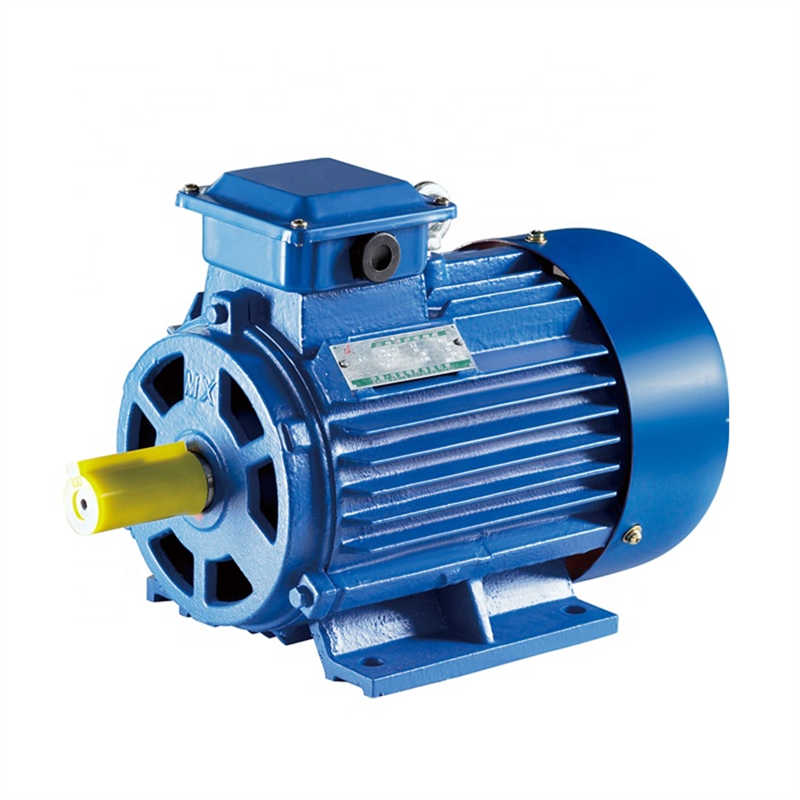

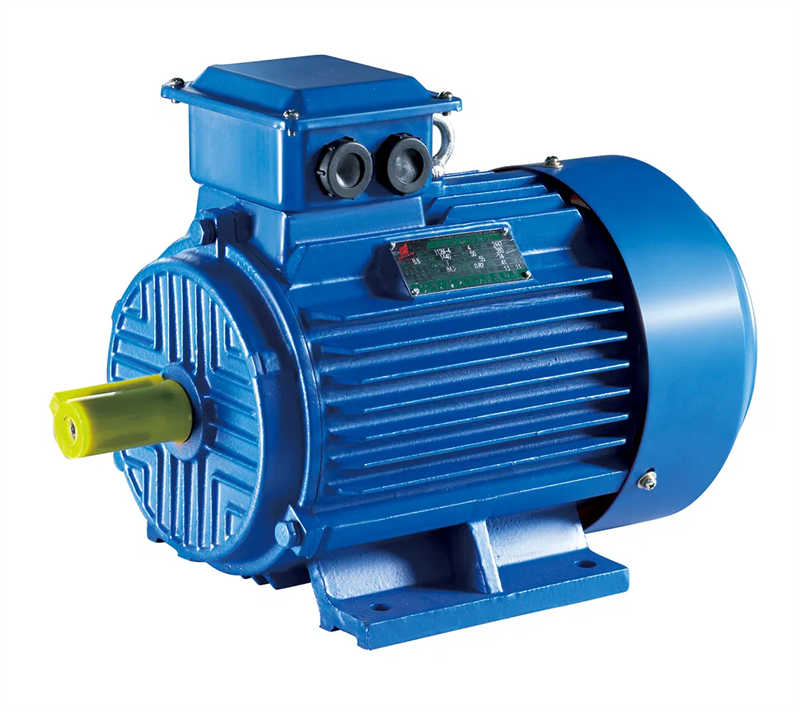

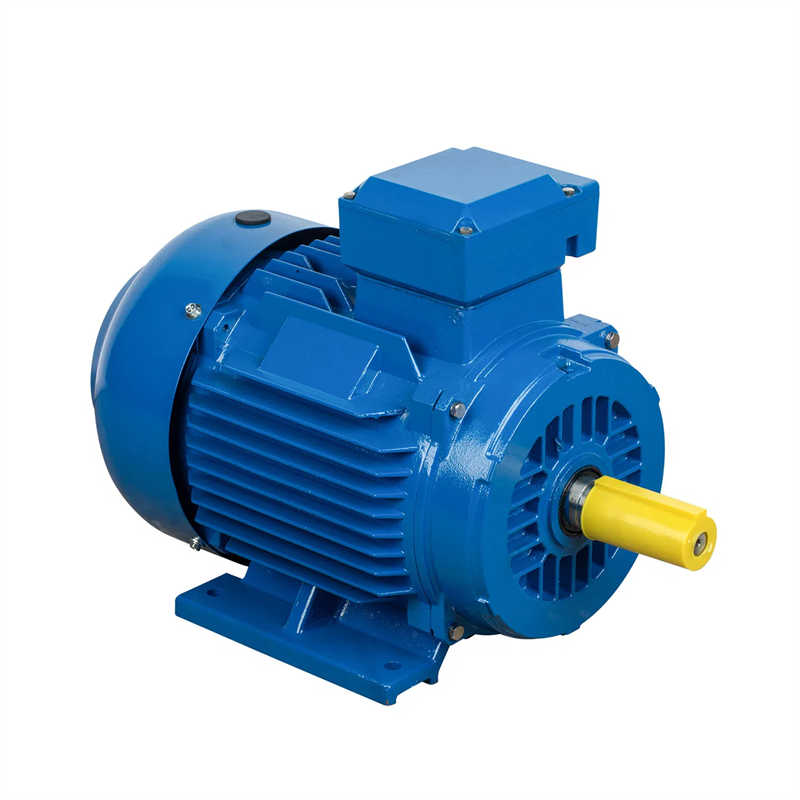

Y2 Series Low-Voltage Three-Phase Squirrel-Cage Induction Motor H63-450mm

Product Description

Y2 series three-phase induction motors are new design of traditional Y series induction motors, meet IEC and relevent International standards and feature higher efficiency, more energy efficient, better performance and reliability, more attractive appearance, lower vibration and noise, etc...

* Ambient temperature: -15 degree-+40 degree(Celsius)
* Altitude not exceed: 1000m
* Rated voltage: 380V or any voltage between 220V-760V
* Rated frequency: 50Hz/60Hz
* Protection class: IP54/IP55
* Insulation class: F/H
* Cooling method: IC0141 Duty S1(continuous)
* Connection: Star-connection for up to 3kW, delta-connection for 4kW and above.
* Remark: Motors can be equipped with PTC, for frame size 160 and above, also can be equipped with re-greasing system. Terminal box on top, right side or left side are available. Key-way can be closed type or opened type.
* CE certified
