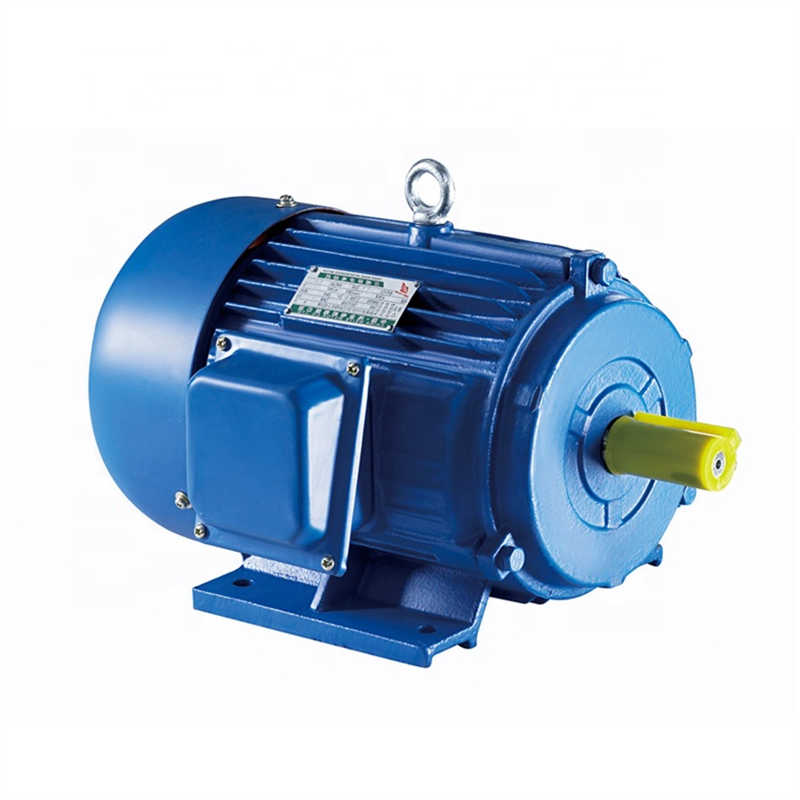

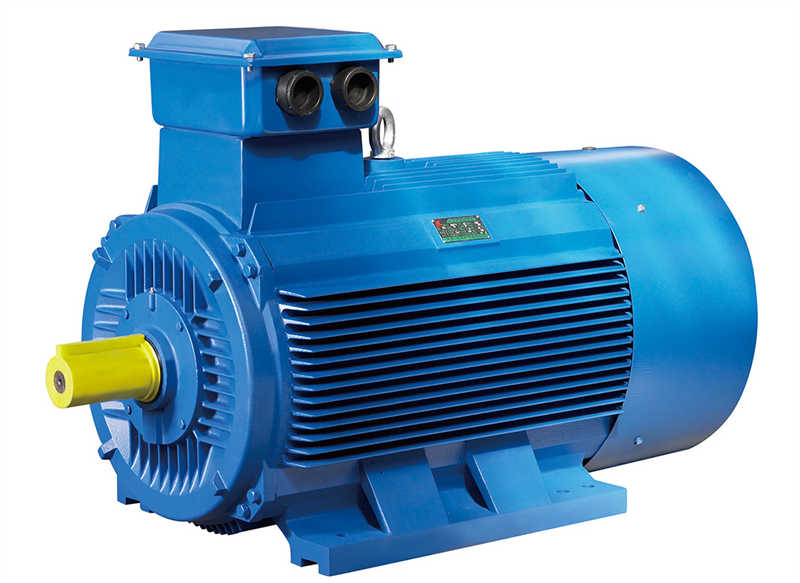

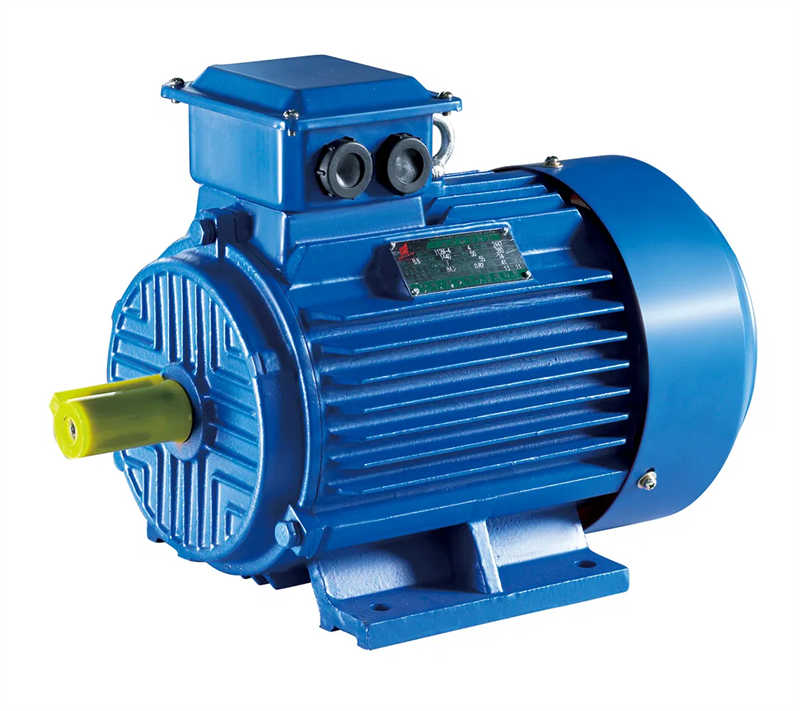

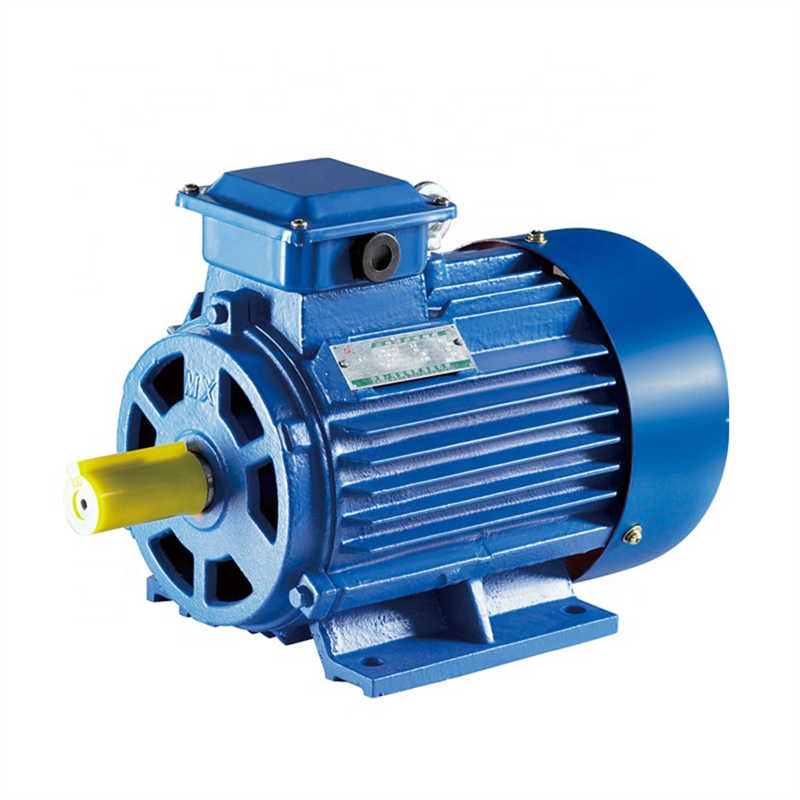

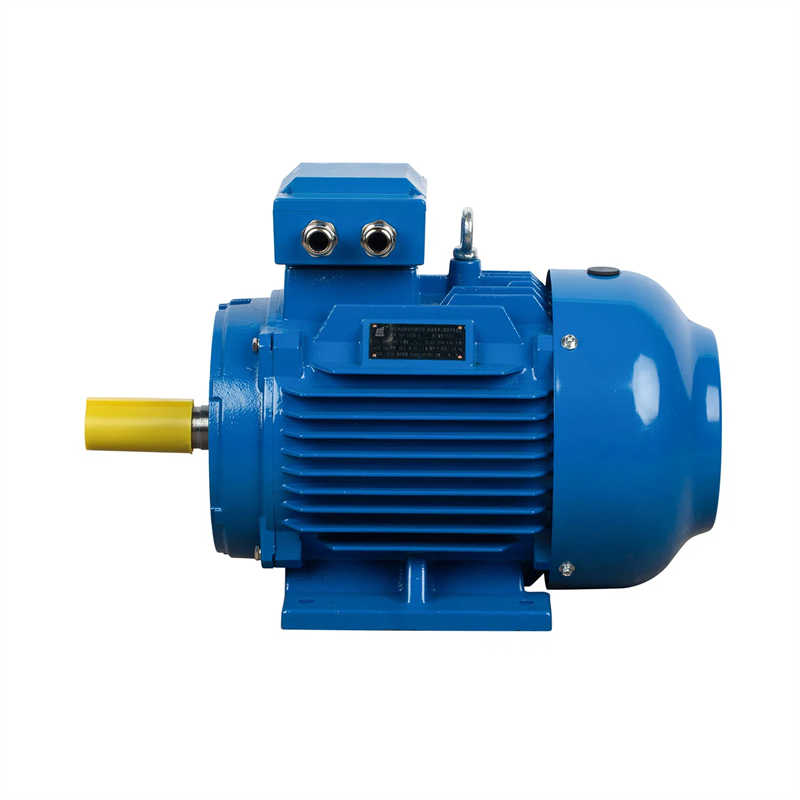

MSE Series Premium Energy Efficient Aluminium Framed Motor (H56-160)

Product Description

The MSE series motors are aluminium framed, 3 phase asynchronous with totally enclosed fan cooled (TEFC) design. They meet level Eff2 and Eff1 of European efficiency scheme (CEMEP-EU) and Australia MEPS/High efficiency standard.

The motors, with detachable multi-position feet, can be mounted as B3, B5, B35, B14A (Small Flange), and B14B (Big Flange). And terminal box can turn in four directions with increments of 90 degrees.

Specifications

* Three Phase, Euro-voltage, Up to 3kW, 220-240V delta/380-415V star; 4kW and Above, 380-415V delta/660-720V star; 50/60HZ, IP55, TEFC
* Aluminium frames 56-160 With Detachable Multi-Position Feet
* V-Ring On Both End-Shields, or Oil-Seal Ring On Both End-Shields
* Anti-Condensation Drain Holes
* Meet Efficiency Level Of Eff2, Eff1, And Tabel B1, B2, B3 Against AS/NZS 1359.5: 2004
* Class "F" Insulation ( ΔT=80K)
* Continuous Duty-S1
* Ambient Temp. Between -15 and +40 Celsius degrees
* Altitude: Not Exceed 1000M
* Dimensions According To IEC-72
* Performance According To IEC-34
* Metric Thread Cable Entries In Terminal Box
* Suitable For Inverter Duty Applications
* Paint Color: RAL5010 or Others Upon Request

Options

* Degree of Protection: IP56 or IP65
* Bearing Seals: Oil Seal
* Thermal Protection:
1. PT100
2. Thermistors For frame 132 And Below
* Space Heaters
* Class "H" Insulation
